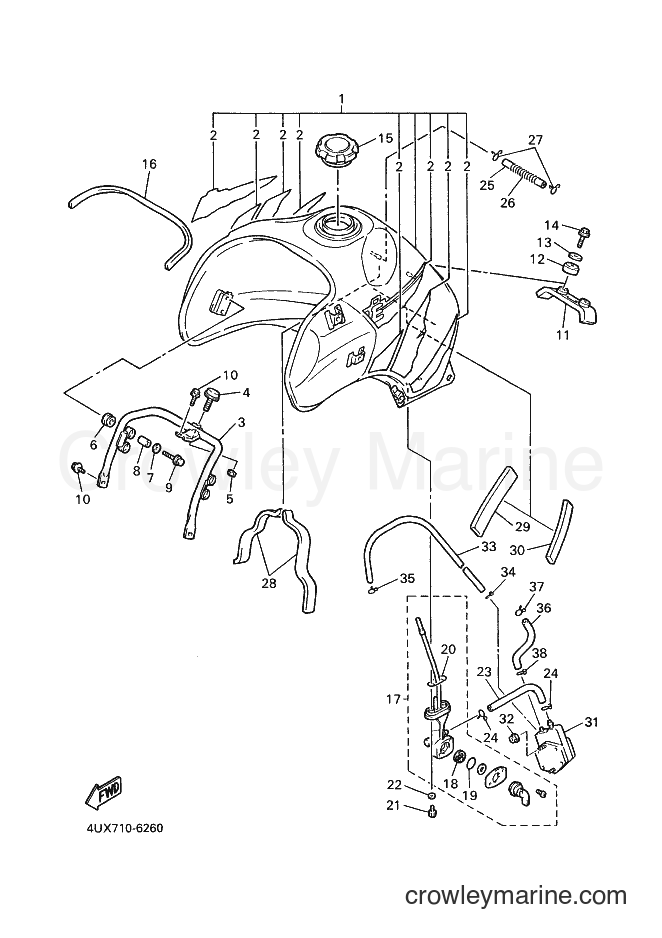

1996 Dirt Bike XTZ660 - XTZ660 (4MY3) [100] FUEL TANK diagram
![Yamaha Motors XTZ660 (4MY3) [100] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/t98HgcvA.png)
1
Yamaha Motors
FUEL TANK COMP.4MY-24110-10-03
Required: 1
FUEL TANK COMP.
Price unavailable
1
Yamaha Motors
FUEL TANK COMP.4MY-24110-10-02
Required: 1
FUEL TANK COMP.
Price unavailable
2
Yamaha Motors
. GRAPHIC SET4MY-24240-20
Required: 1
. GRAPHIC SET
Price unavailable
2
Yamaha Motors
. GRAPHIC SET4MY-24240-00
Required: 1
. GRAPHIC SET
Price unavailable
3
Yamaha Motors
BRACKET, FUEL TANK 13YF-24291-01
Required: 1
BRACKET, FUEL TANK 1
Price unavailable
4
Yamaha Motors
DAMPER, LOCATING 53AJ-24185-00
Required: 1
DAMPER, LOCATING 5
Price unavailable
-10%
5
Yamaha Motors
Nut95337-08600-00
Required: 1
NUT
Supersedes: 95307-08600-00
$8.54
You save $0.95
-10%
$10.34
You save $1.15
-10%
7
Yamaha Motors
Plate Washer90201-06057-00
Required: 4
WASHER, PLATE
Supersedes: 90201-06059-00
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
9
Yamaha Motors
Flange Bolt95817-06030-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-06030-00
$4.19
You save $0.46
10
Yamaha Motors
BOLT, WITH WASHER90119-08197
Required: 3
BOLT, WITH WASHER
Price unavailable
11
Yamaha Motors
DAMPER, LOCATING 23YF-24182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
12
Yamaha Motors
DAMPER, LOCATING 33YF-24183-00
Required: 2
DAMPER, LOCATING 3
Price unavailable
-10%
13
Yamaha Motors
Plate Washer90201-065G8-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
-10%
14
Yamaha Motors
Flange Bolt95812-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95817-06012-00
$1.04
You save $0.11
-10%
$183.59
You save $20.40
16
Yamaha Motors
MOLD, FUEL TANK3AJ-24188-00
Required: 1
MOLD, FUEL TANK
Price unavailable
17
Yamaha Motors
FUEL COCK ASSY 13YF-24500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
-10%
18
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
. VALVE
Supersedes: 3AJ-24523-00-00
$13.04
You save $1.45
-50%
19
Yamaha Motors
Cock Seal3AJ-24534-01-00
Required: 1
. SEAL, COCK
Supersedes: 3AJ-24534-00-00
In stock
Only 1 remaining
$6.00
You save $6.00
-10%
$8.54
You save $0.95
-10%
21
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
$9.44
You save $1.05
-20%
22
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
In stock
Only 4 remaining
$1.36
You save $0.34
23
Yamaha Motors
PIPE, FUEL 13YF-24311-00
Required: 1
PIPE, FUEL 1
Price unavailable
-10%
24
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
-10%
25
Yamaha Motors
Hose90445-110F5-00
Required: 1
HOSE
Supersedes: 90445-116G8-00
$15.74
You save $1.75
-10%
26
Yamaha Motors
Compression Spring90501-061E8-00
Required: 1
SPRING, COMPRESSION
$12.14
You save $1.35
-10%
27
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
28
Yamaha Motors
DAMPER, PLATE 13YF-2414H-00
Required: 2
DAMPER, PLATE 1
Price unavailable
-10%
29
Yamaha Motors
Damper Plate3YF-2414J-00-00
Required: 1
DAMPER, PLATE 2
No longer availableSearch Nationwide Inventory
$2.93
You save $0.32
-10%
30
Yamaha Motors
Locating Damper3UL-24181-00-00
Required: 1
DAMPER, LOCATING 1
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
31
Yamaha Motors
Fuel Pump Assembly4BR-13910-09-00
Required: 1
FUEL PUMP ASSY
Supersedes: 3LD-13910-00-00
$205.19
You save $22.80
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$9.59
You save $1.06
-10%
$10.34
You save $1.15
-10%
$8.54
You save $0.95
36
Yamaha Motors
HOSE3YF-14294-00
Required: 1
HOSE
Price unavailable
-10%
37
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
38
Yamaha Motors
Clip90467-100A1-00
Required: 1
CLIP
Supersedes: 90467-10008-00
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
