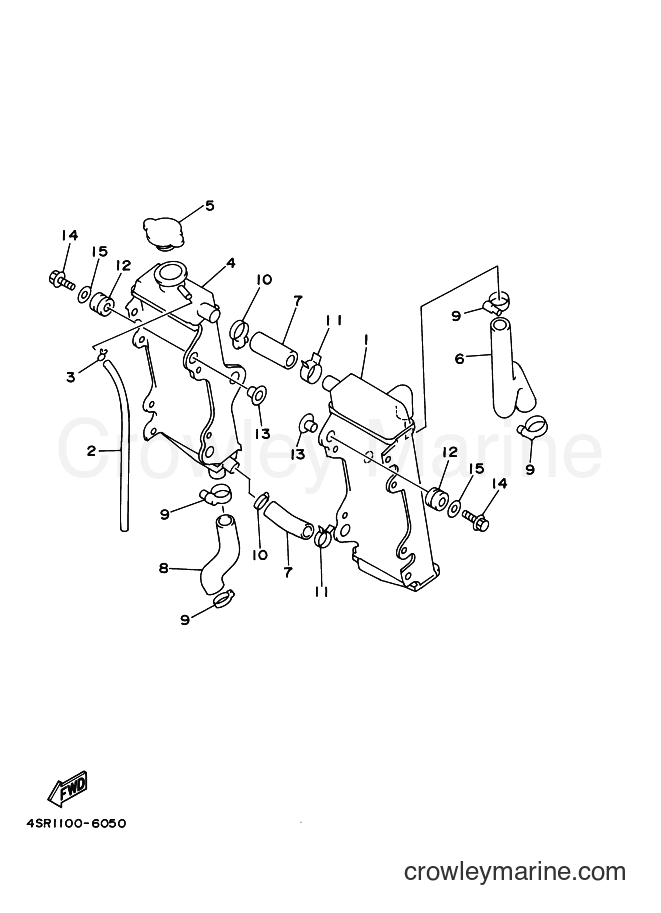

1996 Dirt Bike YZ250 - YZ250 (4SR2) [020] RADIATOR & HOSE diagram
![Yamaha Motors YZ250 (4SR2) [020] - RADIATOR & HOSE](https://cdn.crowleymarine.com/yamaha/rg9Q3tIb.png)
-10%
1
Yamaha Motors
Radiator Assembly4SR-1240A-10-00
Required: 1
RADIATOR ASSY
Supersedes: 4SR-1240A-00-00
No longer availableSearch Nationwide Inventory
$341.99
You save $38.00
-10%
2
Yamaha Motors
Flexible Tube91A20-05080-00
Required: 1
TUBE, FLEXIBLE VINYL
$14.84
You save $1.65
-10%
3
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-10%
4
Yamaha Motors
Radiator Assembly4SR-12461-10-00
Required: 1
RADIATOR ASSY
Supersedes: 4SR-12461-00-00
No longer availableSearch Nationwide Inventory
$352.79
You save $39.20
-10%
5
Yamaha Motors
Radiator Cap4FL-12462-00-00
Required: 1
CAP, RADIATOR
Supersedes: 22W-12462-00-00
$62.09
You save $6.90
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
7
Yamaha Motors
Hose5BE-12577-01-00
Required: 2
PIPE 2
Supersedes: 4SS-12482-00-00
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
8
Yamaha Motors
PIPE 44SR-12484-0C
Required: 1
PIPE 4
Price unavailable
-10%
9
Yamaha Motors
Hose Clamp Assembly90450-28001-00
Required: 4
HOSE CLAMP ASSY
Supersedes: 90450-28014-00
$14.84
You save $1.65
-10%
10
Yamaha Motors
Hose Clamp Assembly90450-22M14-00
Required: 2
HOSE CLAMP ASSY
Supersedes: 90450-25037-00
$15.74
You save $1.75
-10%
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
13
Yamaha Motors
COLLAR90387-0614M-00
Required: 6
COLLAR
Supersedes: 90387-0700G-00
$11.24
You save $1.25
-10%
$3.87
You save $0.43
-10%
15
Yamaha Motors
Plate Washer90201-063J2-00
Required: 6
WASHER, PLATE
$5.84
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
