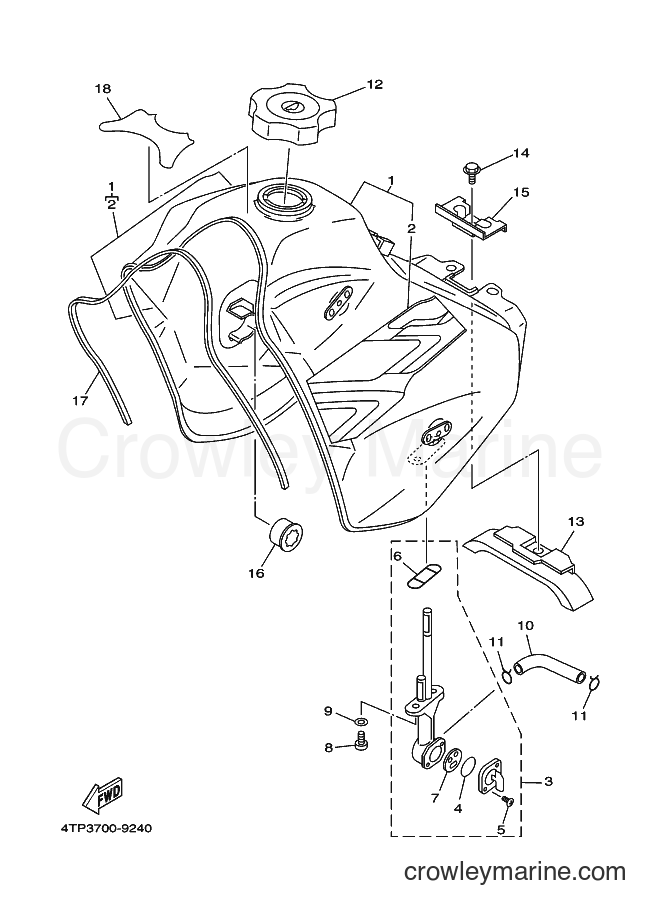

1999 Dirt Bike DT230 - DT230 (4TP3) [010] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT230 (4TP3) [010] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.4TP-24110-11-04
Required: 1
FUEL TANK COMP.
Price unavailable
GRAPHIC SET
2
Yamaha Motors
GRAPHIC SET4TP-24240-30
Required: 1
GRAPHIC SET
Price unavailable
FUEL COCK ASSY 1
3
Yamaha Motors
FUEL COCK ASSY 14TP-24500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
-10%
PAN SCREW
5
Yamaha Motors
PAN SCREW98517-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
-10%
O-Ring
6
Yamaha Motors
O-Ring4X8-24512-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Valve Packing
7
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
. VALVE PACKING
Supersedes: 3AJ-24523-00-00
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
Screw
8
Yamaha Motors
Screw90149-06011-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$2.84
More details
PIPE, FUEL 1
10
Yamaha Motors
PIPE, FUEL 14TP-24311-00
Required: 1
PIPE, FUEL 1
Price unavailable
-10%
Clip
11
Yamaha Motors
Clip90467-100A1-00
Required: 2
CLIP
Supersedes: 90467-10008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
COMMUTATOR END CAP ASSEMBLY
12
Yamaha Motors
COMMUTATOR END CAP ASSEMBLY11H-24602-10-00
Required: 1
CAP ASSY
Supersedes: 11H-24602-03-00
Cross Ship
Leaves in 2-5 days
$110.99
$99.89
You save $11.10
More details
DAMPER, LOCATING 2
13
Yamaha Motors
DAMPER, LOCATING 23BN-24182-00
Required: 1
DAMPER, LOCATING 2
Price unavailable
WASHER, SPECIAL
15
Yamaha Motors
WASHER, SPECIAL34X-24186-01
Required: 1
WASHER, SPECIAL
Price unavailable
-10%
Locating Damper
16
Yamaha Motors
Locating Damper26H-24181-00-00
Required: 2
DAMPER, LOCATING 1
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
MOLD, FUEL TANK
17
Yamaha Motors
MOLD, FUEL TANK4TP-24188-00
Required: 1
MOLD, FUEL TANK
Price unavailable
PROTECTOR, FUEL TANK
18
Yamaha Motors
PROTECTOR, FUEL TANK4TP-24141-00
Required: 1
PROTECTOR, FUEL TANK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
