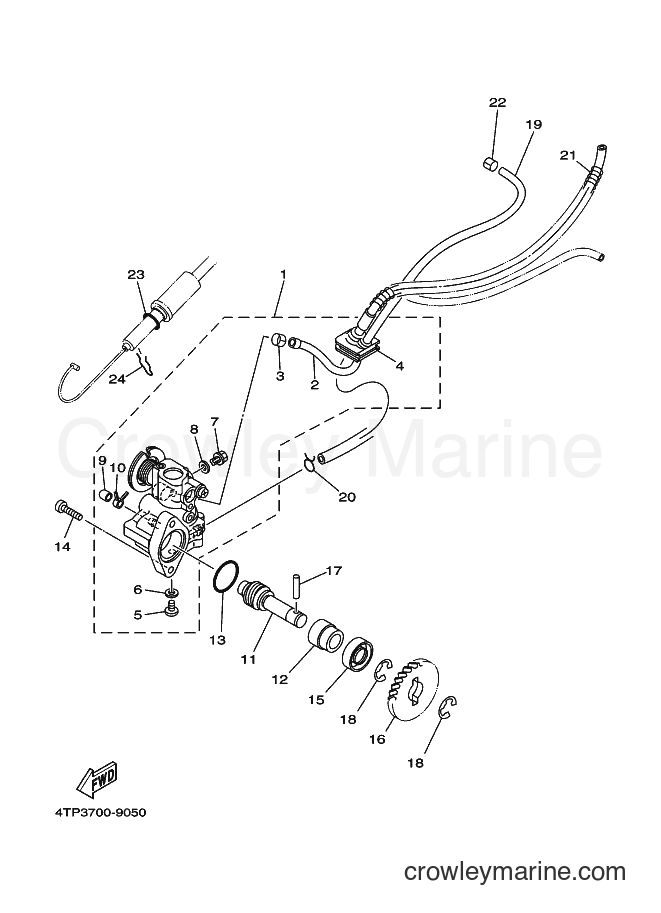

1999 Dirt Bike DT230 - DT230 (4TP3) [010] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT230 (4TP3) [010] - OIL PUMP
Change View:
OIL PUMP ASSY
1
Yamaha Motors
OIL PUMP ASSY4TP-13101-00
Required: 1
OIL PUMP ASSY
Price unavailable
HOSE, OIL 2
2
Yamaha Motors
HOSE, OIL 24TP-1316G-00
Required: 1
HOSE, OIL 2
Price unavailable
-10%
Clip
3
Yamaha Motors
Clip90468-02033-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
SCREW, BINDING
5
Yamaha Motors
SCREW, BINDING90154-04072
Required: 1
SCREW, BINDING
Price unavailable
GASKET
6
Yamaha Motors
GASKET90430-04229
Required: 1
GASKET
Price unavailable
SCREW
7
Yamaha Motors
SCREW90149-04318
Required: 1
SCREW
Price unavailable
GASKET
8
Yamaha Motors
GASKET90430-04229
Required: 1
GASKET
Price unavailable
PLUG, BLIND
9
Yamaha Motors
PLUG, BLIND3KA-13569-00
Required: 1
PLUG, BLIND
Price unavailable
CLIP
10
Yamaha Motors
CLIP90467-05163
Required: 1
CLIP
Price unavailable
SHAFT, WORM
11
Yamaha Motors
SHAFT, WORM4FL-13175-00
Required: 1
SHAFT, WORM
Price unavailable
METAL, WORM SHAFT OUTER
12
Yamaha Motors
METAL, WORM SHAFT OUTER4FL-13176-00
Required: 1
METAL, WORM SHAFT OUTER
Price unavailable
-10%
Pan Head Screw
14
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
S-TYPE OIL SEAL
15
Yamaha Motors
S-TYPE OIL SEAL93101-10090-00
Required: 1
OIL SEAL
Supersedes: 93101-10001-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GEAR, PUMP DRIVE
16
Yamaha Motors
GEAR, PUMP DRIVE4TP-13178-00
Required: 1
GEAR, PUMP DRIVE
Price unavailable
-10%
Dowel Pin
17
Yamaha Motors
Dowel Pin93603-22028-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$4.05
$3.65
You save $0.40
More details
-10%
E-TYPE CIRCLIP
18
Yamaha Motors
E-TYPE CIRCLIP93430-08007-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
HOSE, OIL 1
19
Yamaha Motors
HOSE, OIL 14TP-1316F-00
Required: 1
HOSE, OIL 1
Price unavailable
-10%
Scissor Clip
20
Yamaha Motors
Scissor Clip90467-08003-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
SPRING, COMPRESSION
21
Yamaha Motors
SPRING, COMPRESSION90501-100L1
Required: 1
SPRING, COMPRESSION
Price unavailable
-10%
Clip
22
Yamaha Motors
Clip90468-02033-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
O-Ring
23
Yamaha Motors
O-Ring93210-07100-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
Clip
24
Yamaha Motors
Clip90468-08086-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
