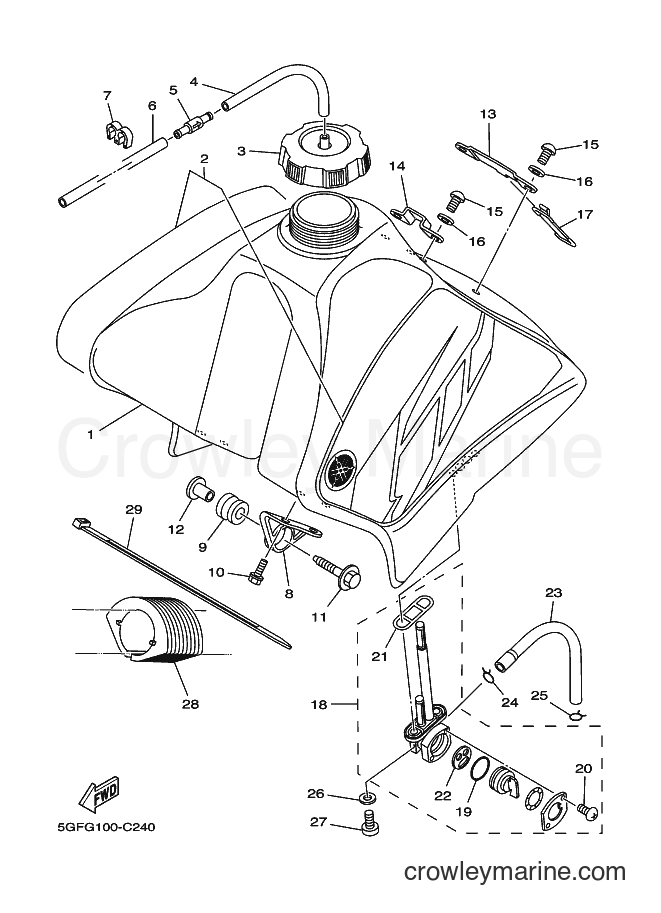

2004 Dirt Bike TT250R - TT250R (4PXA) [010] FUEL TANK diagram
![Yamaha Motors TT250R (4PXA) [010] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/5VcumTKw.png)
-10%
1
Yamaha Motors
4PX-24110-20-004PX-24110-10-00
Required: 1
FUEL TANK COMP.
No longer availableSearch Nationwide Inventory
$727.19
You save $80.80
-10%
No longer availableSearch Nationwide Inventory
$400.49
You save $44.50
-10%
$57.59
You save $6.40
-15%
4
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 1
HOSE (L30)
Supersedes: 90445-09220-00
In stock
5+ in stock
$7.22
You save $1.27
-10%
5
Yamaha Motors
PIPE JOINT ASSEMBLY3XJ-24380-00-00
Required: 1
PIPE JOINT ASSY
$35.99
You save $4.00
-15%
6
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L350)
Supersedes: 90445-09251-00
In stock
Only 3 remaining
$10.62
You save $1.87
-10%
$1.57
You save $0.18
-10%
8
Yamaha Motors
Damper Holder5XE-24144-00-00
Required: 2
HOLDER, DAMPER
Supersedes: 24X-24144-00-00
$23.39
You save $2.60
-10%
$10.34
You save $1.15
-10%
10
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 4
BOLT, FLANGE
Supersedes: 95027-06016-00
$9.44
You save $1.05
-20%
11
Yamaha Motors
Bolt With Washer90119-06214-00
Required: 2
BOLT, WITH WASHER
In stock
Only 3 remaining
$7.59
You save $1.90
-10%
12
Yamaha Motors
Special Washer3JD-24186-00-00
Required: 2
WASHER, SPECIAL
$13.04
You save $1.45
-10%
13
Yamaha Motors
TANK FITTING BRACKET4PX-21348-00-00
Required: 1
BRACKT, TANK FITTING
$76.49
You save $8.50
-10%
14
Yamaha Motors
Seat Fitting Bracket4PX-21946-00-00
Required: 1
BRACKET, SEAT FITTING
$62.99
You save $7.00
-20%
15
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 4
SCREW, PAN HEAD
In stock
Only 1 remaining
$7.59
You save $1.90
-10%
16
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
$0.90
You save $0.10
-10%
17
Yamaha Motors
Tank Fitting Band4PX-24173-00-00
Required: 1
BAND, TANK FITTING 1
$57.59
You save $6.40
-10%
18
Yamaha Motors
Fuel Cock Assembly2GU-24500-02-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 2GU-24500-01-00
$58.49
You save $6.50
-50%
19
Yamaha Motors
Cock Seal3AJ-24534-01-00
Required: 1
. SEAL, COCK
Supersedes: 3AJ-24534-00-00
In stock
Only 1 remaining
$6.00
You save $6.00
-10%
20
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 97801-03008-00
$3.46
You save $0.38
-10%
$8.54
You save $0.95
-10%
22
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
. VALVE PACKING
Supersedes: 3AJ-24523-00-00
$13.04
You save $1.45
-10%
23
Yamaha Motors
Fuel Pipe 169D-24311-00-00
Required: 1
PIPE, FUEL 1
Supersedes: 4PX-24311-00-00
$13.94
You save $1.55
-10%
$3.65
You save $0.40
-10%
25
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
-20%
26
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-05193-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
28
Yamaha Motors
LOCATING DAMPER4GY-24184-00-00
Required: 1
DAMPER, LOCATING 4
$22.49
You save $2.50
-10%
29
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90465-13275-00
$5.84
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
