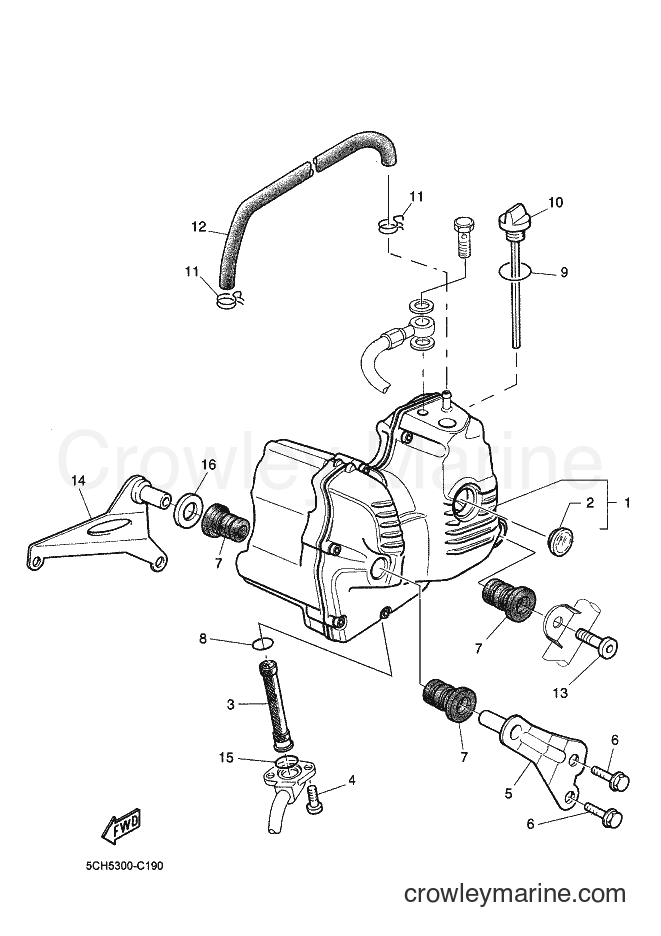

2004 Dirt Bike TT600RE - TT600RE (5CH5) [02A] OIL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TT600RE (5CH5) [02A] - OIL TANK
Change View:
OIL TANK ASSY
1
Yamaha Motors
OIL TANK ASSY5CH-F1750-10-35
Required: 1
OIL TANK ASSY
Price unavailable
-10%
Level Gauge
2
Yamaha Motors
Level Gauge2H7-15361-00-00
Required: 1
. GAUGE, LEVEL
Cross Ship
Leaves in 2-5 days
$105.99
$95.39
You save $10.60
More details
NET, FILTER
3
Yamaha Motors
NET, FILTER5CH-F1756-00
Required: 1
NET, FILTER
Price unavailable
BOLT
4
Yamaha Motors
BOLT9131M-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.61
More details
STAY, SIDE COVER 1
5
Yamaha Motors
STAY, SIDE COVER 15CH-F172E-00
Required: 1
STAY, SIDE COVER 1
Price unavailable
BOLT
6
Yamaha Motors
BOLT9131L-06012
Required: 2
BOLT
Price unavailable
GROMMET
7
Yamaha Motors
GROMMET4SU-F1773-00
Required: 3
GROMMET
Price unavailable
O-RING
8
Yamaha Motors
O-RING93210-218D5
Required: 1
O-RING
Price unavailable
GAUGE, LEVEL
9
Yamaha Motors
GAUGE, LEVEL4SU-F1761-00
Required: 1
GAUGE, LEVEL
Price unavailable
O-RING
10
Yamaha Motors
O-RING93210-16X01
Required: 1
O-RING
Price unavailable
CLIP
11
Yamaha Motors
CLIP90467-12X01
Required: 2
CLIP
Price unavailable
PIPE, OIL TANK BREATHER
12
Yamaha Motors
PIPE, OIL TANK BREATHER5CH-F1745-00
Required: 1
PIPE, OIL TANK BREATHER
Price unavailable
SCREW, UNION
13
Yamaha Motors
SCREW, UNION5CH-F1768-00
Required: 1
SCREW, UNION
Price unavailable
BRACKET 3
14
Yamaha Motors
BRACKET 35CH-F175V-00
Required: 1
BRACKET 3
Price unavailable
-10%
O-Ring
15
Yamaha Motors
O-Ring93210-10197-00
Required: 1
O-RING
Supersedes: 93210-100A9-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Plate Washer
16
Yamaha Motors
Plate Washer90201-142M6-00
Required: 1
WASHER, PLATE
Supersedes: 90201-14222-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
