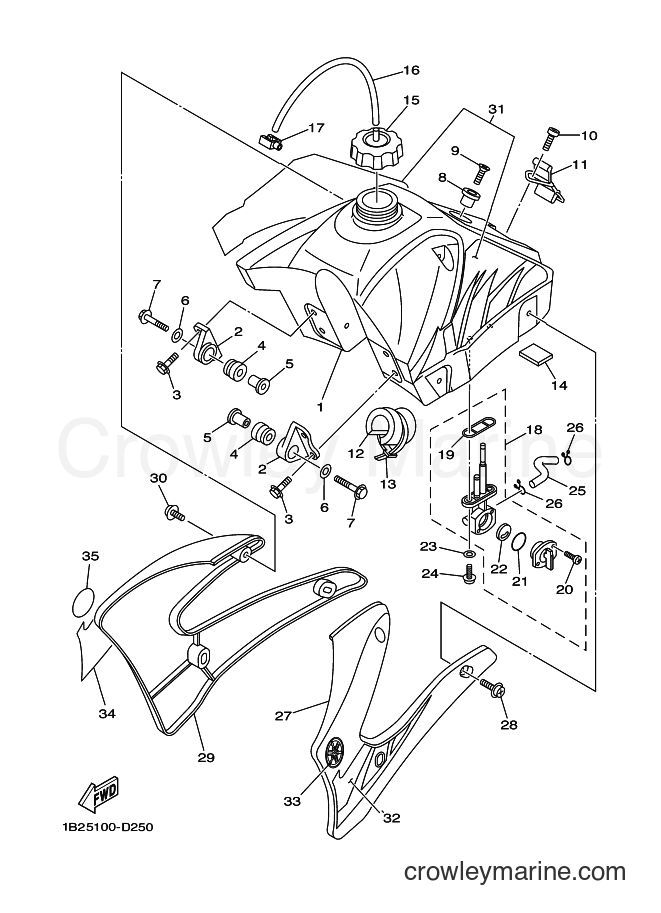

2005 Dirt Bike TT-R125E - TT-R125E (1B26) [010] FUEL TANK diagram
![Yamaha Motors TT-R125E (1B26) [010] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/oijk3M8N.png)
-10%
1
Yamaha Motors
5HP-24110-30-005HP-24110-20-00
Required: 1
FUEL TANK COMP.
Supersedes: 5HP-24110-10-00
No longer availableSearch Nationwide Inventory
$345.59
You save $38.40
-10%
2
Yamaha Motors
Damper Holder5XE-24144-00-00
Required: 2
HOLDER, DAMPER
Supersedes: 1B2-F4144-00-00
$23.39
You save $2.60
-10%
$0.89
You save $0.10
-10%
$10.34
You save $1.15
-10%
5
Yamaha Motors
Special Washer3JD-24186-00-00
Required: 2
WASHER, SPECIAL
Supersedes: 1B2-F4186-00-00
$13.04
You save $1.45
-10%
6
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
No longer availableSearch Nationwide Inventory
$1.76
You save $0.20
-10%
7
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 9582M-06030-00
$4.19
You save $0.46
-10%
8
Yamaha Motors
Seat Bracket4EW-2412F-00-00
Required: 1
BRACKET, SEAT
Supersedes: 1B2-F412F-00-00
$13.94
You save $1.55
-10%
9
Yamaha Motors
Flat Screw98707-06025-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 9870M-06025-00
$8.54
You save $0.95
-10%
10
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Supersedes: 9890M-06020-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
TANK FITTING BAND3SP-24173-00-00
Required: 1
BAND, TANK FITTING 1
Supersedes: 1B2-F4173-00-00
$22.49
You save $2.50
-10%
12
Yamaha Motors
DAMPER, SIDE COVER1B2-F4145-01-00
Required: 1
DAMPER, SIDE COVER
Supersedes: 1B2-F4145-00-00
No longer availableSearch Nationwide Inventory
$1.26
You save $0.14
-10%
13
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90465-13275-00
$5.84
You save $0.65
$0.41
-10%
15
Yamaha Motors
COMMUTATOR END CAP ASSEMBLY2FJ-24610-20-00
Required: 1
CAP ASSY
Supersedes: 2FJ-24610-00-00
$67.49
You save $7.50
-10%
16
Yamaha Motors
Breather Pipe5HN-21826-00-00
Required: 1
PIPE, BREATHER
Supersedes: 1B2-F1826-00-00
$13.94
You save $1.55
-10%
$7.64
You save $0.85
-10%
18
Yamaha Motors
Fuel Cock Assembly23F-24500-20-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 4X8-24500-02-00
$41.39
You save $4.60
-10%
$8.54
You save $0.95
-10%
20
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 97801-03008-00
$3.46
You save $0.38
-50%
21
Yamaha Motors
Cock Seal3AJ-24534-01-00
Required: 1
. SEAL, COCK
Supersedes: 3AJ-24534-00-00
In stock
Only 1 remaining
$6.00
You save $6.00
-10%
22
Yamaha Motors
Valve Packing3AC-24523-00-00
Required: 1
. VALVE PACKING
Supersedes: 3AJ-24523-00-00
$13.04
You save $1.45
-20%
23
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-05193-00
In stock
Only 4 remaining
$1.36
You save $0.34
-15%
25
Yamaha Motors
Hose90445-10752-00
Required: 1
HOSE (L110)
Supersedes: 90445-10007-00
$4.67
You save $0.82
-10%
26
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09W06-00
$4.28
You save $0.47
-10%
27
Yamaha Motors
Air Scoop5HP-2137W-00-00
Required: 1
SCOOP, AIR 1
Supersedes: 1B2-F137W-00-00
$104.39
You save $11.60
-10%
28
Yamaha Motors
Bind Screw90159-06182-00
Required: 3
SCREW, WITH WASHER
$9.44
You save $1.05
-10%
29
Yamaha Motors
Air Scoop5HP-2137X-00-00
Required: 1
SCOOP, AIR 2
Supersedes: 1B2-F137X-00-00
$96.29
You save $10.70
-10%
30
Yamaha Motors
Bind Screw90159-06182-00
Required: 3
SCREW, WITH WASHER
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$125.09
You save $13.90
-10%
$38.69
You save $4.30
-10%
33
Yamaha Motors
Tuning Fork Mark1B2-F175C-00-00
Required: 1
TUNING FORK MARK
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
No longer availableSearch Nationwide Inventory
$55.79
You save $6.20
-10%
35
Yamaha Motors
Tuning Fork Mark1B2-F175C-00-00
Required: 1
TUNING FORK MARK
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
