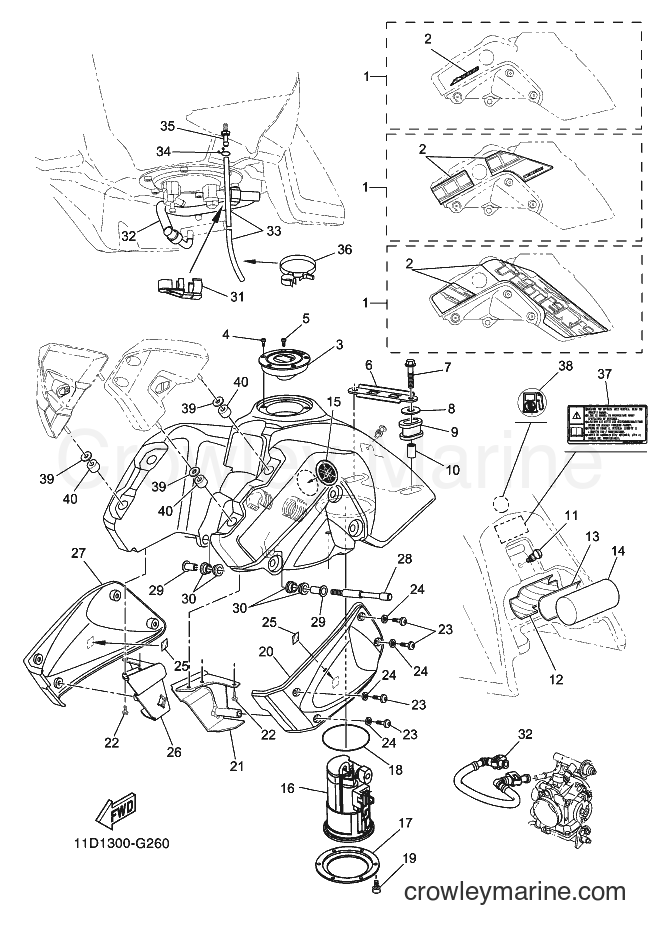

2008 Dirt Bike XT660Z - XT660Z (11D1) [020] FUEL TANK diagram
![Yamaha Motors XT660Z (11D1) [020] - FUEL TANK](https://cdn.crowleymarine.com/yamaha/u7XiyYye.png)
1
Yamaha Motors
FUEL TANK COMP.11D-XF411-00-P0
Required: 1
FUEL TANK COMP.
Price unavailable
2
Yamaha Motors
. GRAPHIC SET11D-F4230-00
Required: 1
. GRAPHIC SET
Price unavailable
3
Yamaha Motors
CAP ASSY11D-24602-00
Required: 1
CAP ASSY
Price unavailable
-10%
4
Yamaha Motors
HEX SOCKET HEAD BOLT90110-05112-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
$9.44
You save $1.05
-10%
$2.48
You save $0.27
6
Yamaha Motors
BRACKET, FUEL TANK 211D-F4192-00
Required: 1
BRACKET, FUEL TANK 2
Price unavailable
-50%
In stock
Only 2 remaining
$3.75
You save $3.75
-10%
8
Yamaha Motors
Plate Washer90201-08M03-00
Required: 2
WASHER, PLATE
$6.29
You save $0.70
9
Yamaha Motors
DAMPER, LOCATING 211D-F4182-00
Required: 2
DAMPER, LOCATING 2
Price unavailable
-10%
$8.99
You save $1.00
11
Yamaha Motors
BOLT, SEAT FITTING11D-F4717-00
Required: 1
BOLT, SEAT FITTING
Price unavailable
12
Yamaha Motors
PROTECTOR, FUEL TANK11D-F4141-00
Required: 1
PROTECTOR, FUEL TANK
Price unavailable
13
Yamaha Motors
HOLDER, TOOL11D-F8170-00
Required: 1
HOLDER, TOOL
Price unavailable
14
Yamaha Motors
TOOL KIT11D-F8100-00
Required: 1
TOOL KIT
Price unavailable
15
Yamaha Motors
EMBLEM11D-F413B-00
Required: 2
EMBLEM
Price unavailable
16
Yamaha Motors
FUEL PUMP COMP.11D-13907-00
Required: 1
FUEL PUMP COMP.
Price unavailable
17
Yamaha Motors
BRACKET, FUEL PUMP5YK-F4491-00
Required: 1
BRACKET, FUEL PUMP
Price unavailable
-10%
18
Yamaha Motors
O-Ring19B-24486-01-00
Required: 1
O-RING
Supersedes: 5JW-24486-00-00
$43.19
You save $4.80
-10%
$8.54
You save $0.95
20
Yamaha Motors
SCOOP, AIR 111D-F137W-00
Required: 1
SCOOP, AIR 1
Price unavailable
21
Yamaha Motors
STAY, FUEL TANK 111D-F4115-00
Required: 1
STAY, FUEL TANK 1
Price unavailable
-10%
$0.85
You save $0.09
23
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X19
Required: 8
BOLT,HEX. SOCKET BUTTON
Price unavailable
24
Yamaha Motors
WASHER, PLATE90201-06X28
Required: 8
WASHER, PLATE
Price unavailable
25
Yamaha Motors
DAMPER, LOCATING 211D-F836U-00
Required: 2
DAMPER, LOCATING 2
Price unavailable
26
Yamaha Motors
STAY, FUEL TANK 211D-F4116-00
Required: 1
STAY, FUEL TANK 2
Price unavailable
27
Yamaha Motors
SCOOP, AIR 211D-F137X-00
Required: 1
SCOOP, AIR 2
Price unavailable
28
Yamaha Motors
ROD 111D-F4243-00
Required: 2
ROD 1
Price unavailable
29
Yamaha Motors
COLLAR11D-F412G-00
Required: 2
COLLAR
Price unavailable
30
Yamaha Motors
DAMPER, LOCATING 111D-F4181-00
Required: 4
DAMPER, LOCATING 1
Price unavailable
-10%
$12.14
You save $1.35
32
Yamaha Motors
PIPE, FUEL 15YK-13971-00
Required: 1
PIPE, FUEL 1
Price unavailable
33
Yamaha Motors
PIPE, OVERFLOW11D-F4318-00
Required: 1
PIPE, OVERFLOW
Price unavailable
-10%
34
Yamaha Motors
Clip90467-090A2-00
Required: 1
CLIP
Supersedes: 90467-09006-00
$4.28
You save $0.47
35
Yamaha Motors
JOINT5YK-F4478-00
Required: 1
JOINT
Price unavailable
36
Yamaha Motors
CLAMP90464-09X00
Required: 2
CLAMP
Price unavailable
37
Yamaha Motors
LABEL, WARNING5JN-F1568-M0
Required: 1
LABEL, WARNING
Price unavailable
38
Yamaha Motors
LABEL, CAUTION4SU-F415E-00
Required: 1
LABEL, CAUTION
Price unavailable
39
Yamaha Motors
WASHER, PLATE90202-08X01
Required: 4
WASHER, PLATE
Price unavailable
40
Yamaha Motors
GROMMET11D-F8187-00
Required: 4
GROMMET
Price unavailable
