2009 Dirt Bike WR125X - WR125X (22B2) [030] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

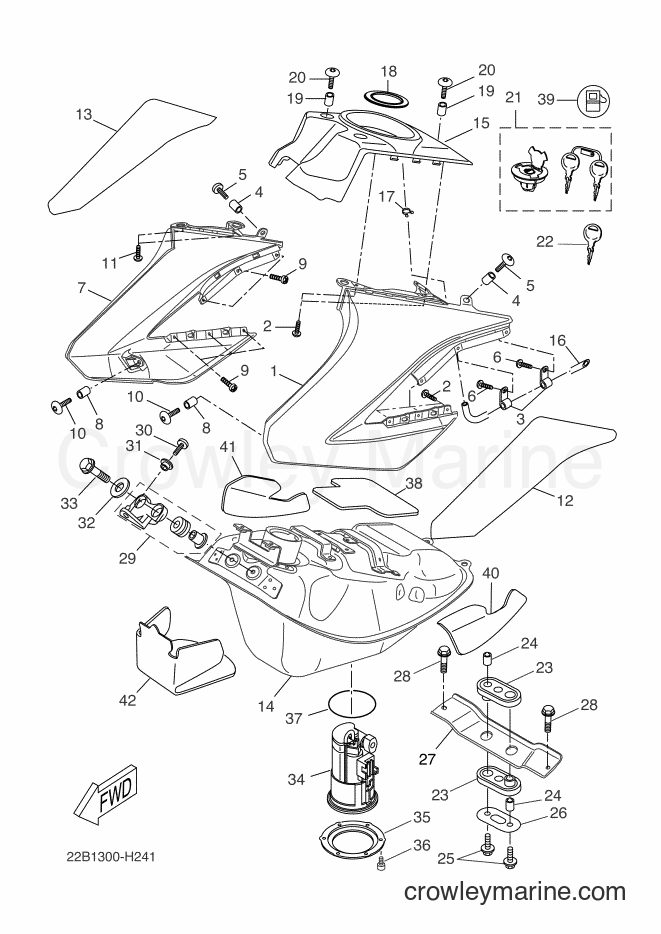

Yamaha Motors WR125X (22B2) [030] - FUEL TANK
Change View:
COVER, SIDE 3
1
Yamaha Motors
COVER, SIDE 322B-F1731-00
Required: 1
COVER, SIDE 3
Price unavailable
TRUSS SCREW
2
Yamaha Motors
TRUSS SCREW97707-40010-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.55
More details
-10%
Clamp
3
Yamaha Motors
Clamp90461-11099-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$2.30
$2.07
You save $0.23
More details
COLLAR
4
Yamaha Motors
COLLAR90387-06X50
Required: 2
COLLAR
Price unavailable
BOLT,HEX. SOCKET BUTTON
5
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X17
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
-10%
Truss Screw
6
Yamaha Motors
Truss Screw97707-40012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40012-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
COVER, SIDE 4
7
Yamaha Motors
COVER, SIDE 422B-F1741-00
Required: 1
COVER, SIDE 4
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR90387-06X50
Required: 2
COLLAR
Price unavailable
TRUSS SCREW
9
Yamaha Motors
TRUSS SCREW97707-40010-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.55
More details
BOLT,HEX. SOCKET BUTTON
10
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X17
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
TRUSS SCREW
11
Yamaha Motors
TRUSS SCREW97707-40010-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.55
More details
GRAPHIC 5
12
Yamaha Motors
GRAPHIC 522B-2174J-00
Required: 1
GRAPHIC 5
Price unavailable
GRAPHIC 6
13
Yamaha Motors
GRAPHIC 622B-2174K-00
Required: 1
GRAPHIC 6
Price unavailable
FUEL TANK COMP.
14
Yamaha Motors
FUEL TANK COMP.22B-F4110-00
Required: 1
FUEL TANK COMP.
Price unavailable
PROTECTOR, FUEL TANK
15
Yamaha Motors
PROTECTOR, FUEL TANK22B-F4141-00
Required: 1
PROTECTOR, FUEL TANK
Price unavailable
PIPE, OVERFLOW
16
Yamaha Motors
PIPE, OVERFLOW22B-F4318-00
Required: 1
PIPE, OVERFLOW
Price unavailable
-10%
Scissor Clip
17
Yamaha Motors
Scissor Clip90467-08003-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
SEAL
18
Yamaha Motors
SEAL5SE-F414G-00
Required: 1
SEAL
Price unavailable
COLLAR
19
Yamaha Motors
COLLAR90387-06X19
Required: 4
COLLAR
Price unavailable
BOLT,HEX. SOCKET BUTTON
20
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X19
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
CAP ASSY
21
Yamaha Motors
CAP ASSY22B-F4610-00
Required: 1
CAP ASSY
Price unavailable
BLANK KEY
22
Yamaha Motors
BLANK KEY5D7-H2511-09
Required: 1
BLANK KEY
Price unavailable
DAMPER, LOCATING 1
23
Yamaha Motors
DAMPER, LOCATING 122B-F4181-00
Required: 2
DAMPER, LOCATING 1
Price unavailable
-10%
COLLAR
24
Yamaha Motors
COLLAR90387-06028-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Flange Bolt
25
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
WASHER, SPECIAL
26
Yamaha Motors
WASHER, SPECIAL22B-F4186-00
Required: 1
WASHER, SPECIAL
Price unavailable
BRACKET, FUEL TANK 2
27
Yamaha Motors
BRACKET, FUEL TANK 222B-F4192-00
Required: 1
BRACKET, FUEL TANK 2
Price unavailable
BOLT, FLANGE
28
Yamaha Motors
BOLT, FLANGE90105-06X24
Required: 2
BOLT, FLANGE
Price unavailable
TANK BRACKET ASSY
29
Yamaha Motors
TANK BRACKET ASSY22B-F4104-00
Required: 1
TANK BRACKET ASSY
Price unavailable
-10%
SPECIAL SHAPE SCREW
30
Yamaha Motors
SPECIAL SHAPE SCREW90149-06302-00
Required: 1
SCREW
Supersedes: 90149-06022-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
31
Yamaha Motors
COLLAR90387-087L0-00
Required: 1
COLLAR
Supersedes: 90387-061U9-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
WASHER, PLATE
32
Yamaha Motors
WASHER, PLATE90201-06X08
Required: 2
WASHER, PLATE
Price unavailable
-10%
Flange Bolt
33
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.71
You save $0.19
More details
FUEL PUMP COMP.
34
Yamaha Motors
FUEL PUMP COMP.22B-13907-00
Required: 1
FUEL PUMP COMP.
Price unavailable
-10%
Fuel Pump Bracket
35
Yamaha Motors
Fuel Pump Bracket3D7-24491-00-00
Required: 1
BRACKET, FUEL PUMP
Cross Ship
Leaves in 2-5 days
$56.99
$51.29
You save $5.70
More details
-10%
Button head bolt
36
Yamaha Motors
Button head bolt92012-05016-00
Required: 6
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
O-Ring
37
Yamaha Motors
O-Ring1S4-24486-00-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$52.99
$47.69
You save $5.30
More details
SEAT, TANK PROTECTOR
38
Yamaha Motors
SEAT, TANK PROTECTOR22B-F4193-00
Required: 1
SEAT, TANK PROTECTOR
Price unavailable
LABEL, CAUTION
39
Yamaha Motors
LABEL, CAUTION5DN-F415A-10
Required: 1
LABEL, CAUTION
Price unavailable
DAMPER, LOCATING 4
40
Yamaha Motors
DAMPER, LOCATING 422B-F4184-00
Required: 1
DAMPER, LOCATING 4
Price unavailable
DAMPER, LOCATING 5
41
Yamaha Motors
DAMPER, LOCATING 522B-F4185-00
Required: 1
DAMPER, LOCATING 5
Price unavailable
DAMPER, PLATE 1
42
Yamaha Motors
DAMPER, PLATE 122B-F414H-00
Required: 1
DAMPER, PLATE 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
