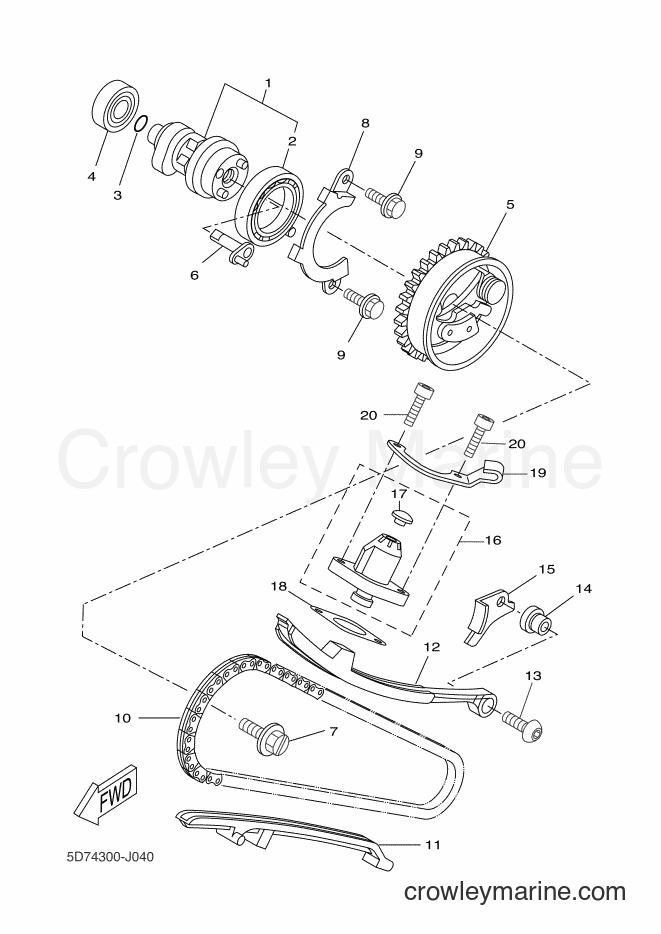

2014 Dirt Bike WR125R - WR125R (22BB) [080] CAMSHAFT & CHAIN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors WR125R (22BB) [080] - CAMSHAFT & CHAIN
Change View:
CAM SHAFT ASSY
1
Yamaha Motors
CAM SHAFT ASSY5D7-WE211-00
Required: 1
CAM SHAFT ASSY
Price unavailable
. BEARING
2
Yamaha Motors
. BEARING93306-906Y0
Required: 1
. BEARING
Price unavailable
O-RING
3
Yamaha Motors
O-RING93210-09806
Required: 1
O-RING
Price unavailable
BEARING
4
Yamaha Motors
BEARING93306-001X2
Required: 1
BEARING
Price unavailable
DECOMPRESSION ASSY
5
Yamaha Motors
DECOMPRESSION ASSY3C1-E2280-00
Required: 1
DECOMPRESSION ASSY
Price unavailable
CAM, DECOMPRESSION
6
Yamaha Motors
CAM, DECOMPRESSION5YP-E2288-00
Required: 1
CAM, DECOMPRESSION
Price unavailable
BOLT
7
Yamaha Motors
BOLT5YP-E2157-00
Required: 1
BOLT
Price unavailable
-10%
Plate
8
Yamaha Motors
Plate1B9-E111F-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
Flange Bolt (4MY)
9
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
CHAIN
10
Yamaha Motors
CHAIN94568-A8096
Required: 1
CHAIN
Price unavailable
GUIDE, STOPPER 1
11
Yamaha Motors
GUIDE, STOPPER 11B9-E2231-00
Required: 1
GUIDE, STOPPER 1
Price unavailable
GUIDE, STOPPER 2
12
Yamaha Motors
GUIDE, STOPPER 21B9-E2241-00
Required: 1
GUIDE, STOPPER 2
Price unavailable
SCREW
13
Yamaha Motors
SCREW90149-06829
Required: 1
SCREW
Price unavailable
COLLAR
14
Yamaha Motors
COLLAR5D7-E5598-00
Required: 1
COLLAR
Price unavailable
COVER, CHAIN
15
Yamaha Motors
COVER, CHAIN5D7-E2256-00
Required: 1
COVER, CHAIN
Price unavailable
TENSIONER ASSY, CAM CHAIN
16
Yamaha Motors
TENSIONER ASSY, CAM CHAIN1B9-E2210-00
Required: 1
TENSIONER ASSY, CAM CHAIN
Price unavailable
. PLUG
17
Yamaha Motors
. PLUG5MX-E2222-00
Required: 1
. PLUG
Price unavailable
GASKET, TENSIONER CASE
18
Yamaha Motors
GASKET, TENSIONER CASE5VV-E2213-01
Required: 1
GASKET, TENSIONER CASE
Price unavailable
HOLDER, CLUTCH CABLE
19
Yamaha Motors
HOLDER, CLUTCH CABLE22B-E5441-00
Required: 1
HOLDER, CLUTCH CABLE
Price unavailable
Bolt
20
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.23
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
