1990 Scooter CW50 - CW50 (3WW1) [999] SIDE COVER & OIL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

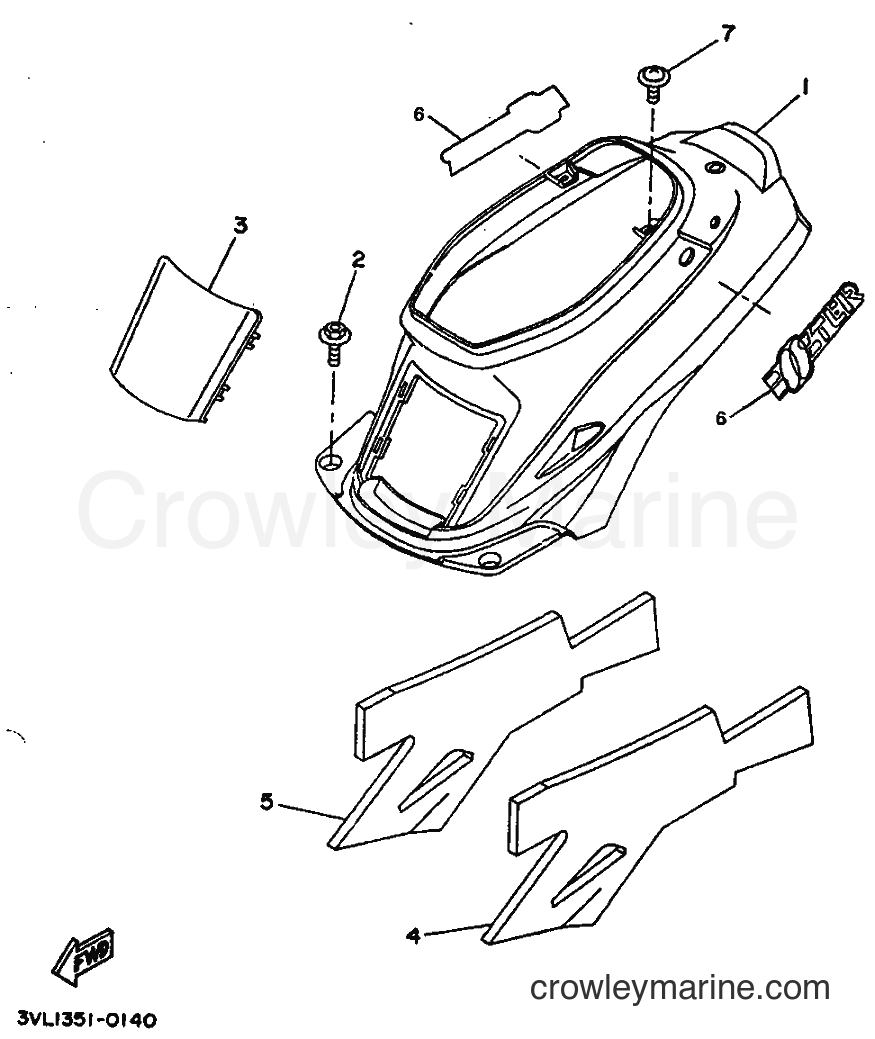

Yamaha Motors CW50 (3WW1) [999] - SIDE COVER & OIL TANK

Change View:

Yamaha Motors

COVER, SIDE 13VL-F1711-00-12

Required: 1

COVER, SIDE 1

Price unavailable

Yamaha Motors

COVER, SIDE 13VL-F1711-00-11

Required: 1

COVER, SIDE 1

Price unavailable

-10%

Yamaha Motors

Bolt with Washer90119-06226-00

Required: 2

BOLT, WITH WASHER

Supersedes: 90119-06060-00

~~$2.80~~

$2.52

You save $0.28

More details

Yamaha Motors

COVER, SIDE 23VL-F1721-00-12

Required: 1

COVER, SIDE 2

Price unavailable

Yamaha Motors

COVER, SIDE 23VL-F1721-00-11

Required: 1

COVER, SIDE 2

Price unavailable

Yamaha Motors

DAMPER, LOCATING 13VL-F1778-00

Required: 1

DAMPER, LOCATING 1

Price unavailable

Yamaha Motors

DAMPER, LOCATING 23VL-F1779-00

Required: 1

DAMPER, LOCATING 2

Price unavailable

Yamaha Motors

EMBLEM 23VL-F1782-40

Required: 2

EMBLEM 2

Price unavailable

Yamaha Motors

EMBLEM 23VL-F1782-30

Required: 2

EMBLEM 2

Price unavailable

-10%

Yamaha Motors

Screw with Washer90159-06059-00

Required: 2

SCREW, WITH WASHER

~~$11.49~~

$10.34

You save $1.15

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
