1995 Scooter YA50Z - YA50Z (4SC1) [999] SIDE COVER & OIL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

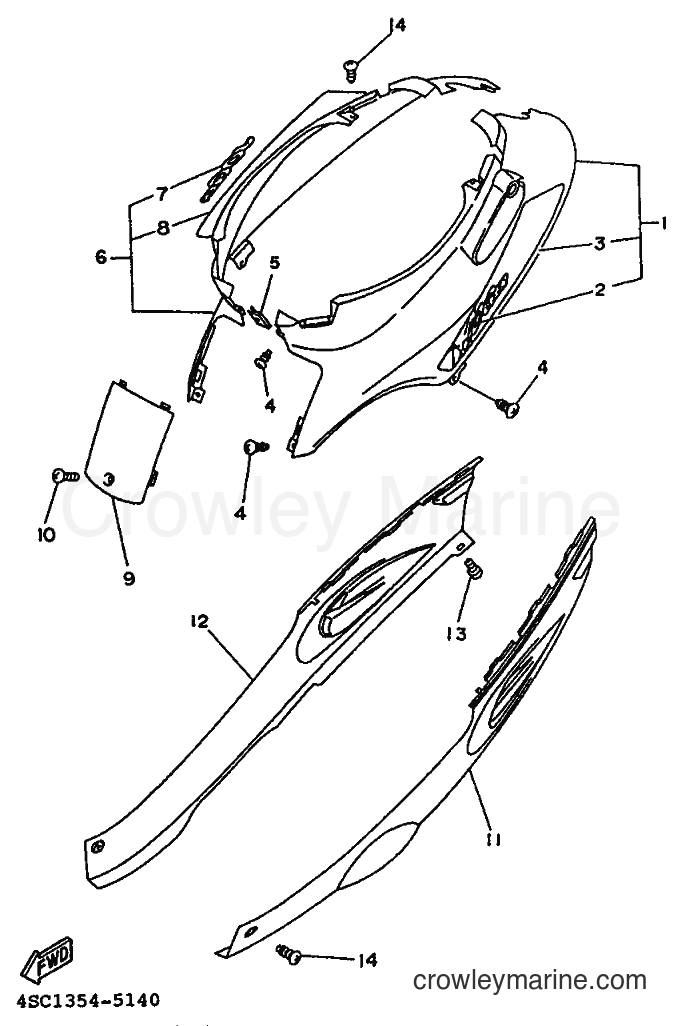

Yamaha Motors YA50Z (4SC1) [999] - SIDE COVER & OIL TANK
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 14DY-X2171-00-P5
Required: 1
COVER, SIDE 1
Price unavailable
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 14DY-X2171-10-4B
Required: 1
COVER, SIDE 1
Price unavailable
. EMBLEM
2
Yamaha Motors
. EMBLEM4JL-F1737-00
Required: 1
. EMBLEM
Price unavailable
. GRAPHIC 1
3
Yamaha Motors
. GRAPHIC 14JL-F173E-20
Required: 1
. GRAPHIC 1
Price unavailable
. GRAPHIC 1
3
Yamaha Motors
. GRAPHIC 14JL-F173E-00
Required: 1
. GRAPHIC 1
Price unavailable
-10%
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 24DY-X2172-00-P5
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 2
6
Yamaha Motors
COVER, SIDE 24DY-X2172-10-4B
Required: 1
COVER, SIDE 2
Price unavailable
. EMBLEM
7
Yamaha Motors
. EMBLEM4JL-F1737-00
Required: 1
. EMBLEM
Price unavailable
. GRAPHIC 2
8
Yamaha Motors
. GRAPHIC 24JL-F173F-00
Required: 1
. GRAPHIC 2
Price unavailable
. GRAPHIC 2
8
Yamaha Motors
. GRAPHIC 24JL-F173F-20
Required: 1
. GRAPHIC 2
Price unavailable
COVER, SIDE 3
9
Yamaha Motors
COVER, SIDE 34DY-F1731-00-P5
Required: 1
COVER, SIDE 3
Price unavailable
. COVER, SIDE 3
9
Yamaha Motors
. COVER, SIDE 34DY-F1731-00-4B
Required: 1
. COVER, SIDE 3
Price unavailable
-10%
Tapping Screw
10
Yamaha Motors
Tapping Screw90167-05055-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
MOLE, SIDE COVER 1
11
Yamaha Motors
MOLE, SIDE COVER 14JL-F171L-20
Required: 1
MOLE, SIDE COVER 1
Price unavailable
MOLE, SIDE COVER 1
11
Yamaha Motors
MOLE, SIDE COVER 14JL-F171L-00
Required: 1
MOLE, SIDE COVER 1
Price unavailable
MOLE, SIDE COVER 2
12
Yamaha Motors
MOLE, SIDE COVER 24JL-F171M-20
Required: 1
MOLE, SIDE COVER 2
Price unavailable
MOLE, SIDE COVER 2
12
Yamaha Motors
MOLE, SIDE COVER 24JL-F171M-00
Required: 1
MOLE, SIDE COVER 2
Price unavailable
-10%
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
