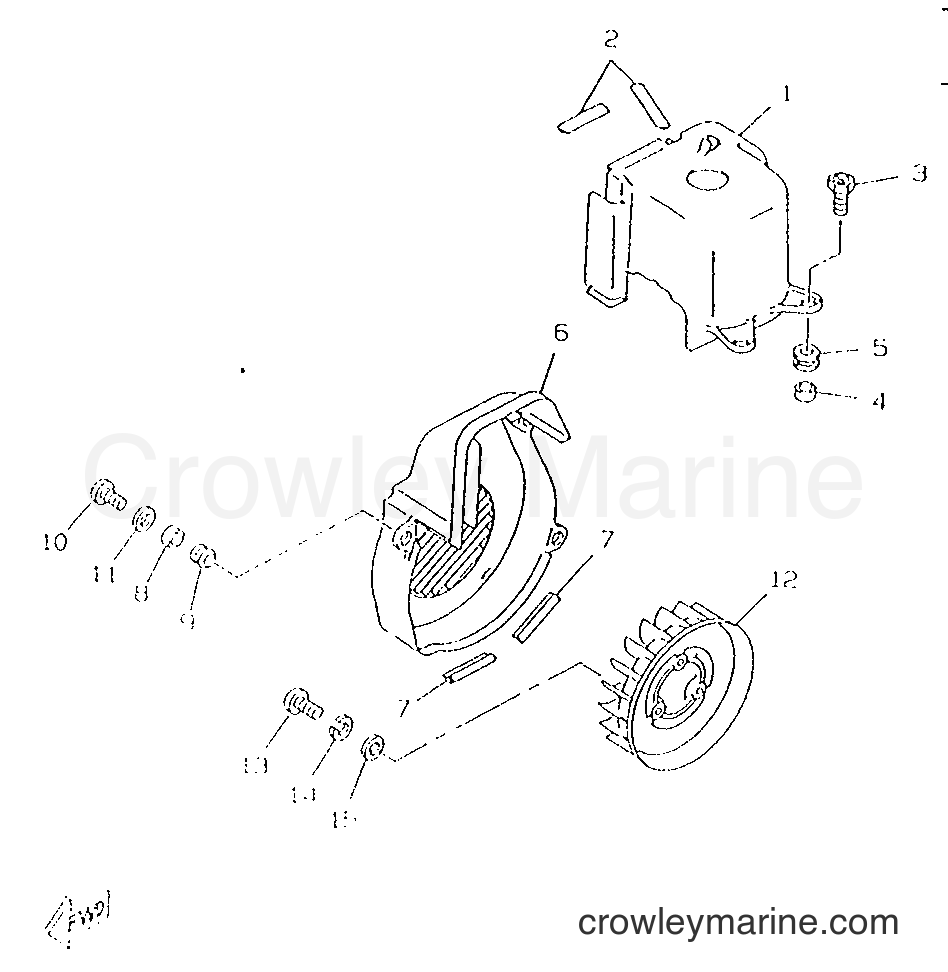

1996 Scooter CW50RSP - CW50RSP (4WS1) [999] AIR SHROUD & FAN diagram
![Yamaha Motors CW50RSP (4WS1) [999] - AIR SHROUD & FAN](https://cdn.crowleymarine.com/yamaha/Luu3FsCe.png)
-10%
1
Yamaha Motors
Cylinder Air Shroud3VL-E2651-00-00
Required: 1
AIR SHROUD, CYLINDER 1
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
2
Yamaha Motors
Air Shroud Damper3VL-E2658-00-00
Required: 2
DAMPER, AIR SHROUD 1
$3.96
You save $0.44
3
Yamaha Motors
Hexagon Screw90153-06022-00
Required: 2
SCREW, HEXAGON
$0.95
-10%
$9.44
You save $1.05
-10%
$2.79
You save $0.31
-10%
6
Yamaha Motors
Cylinder Air Shroud3VL-E2653-00-00
Required: 1
AIR SHROUD, CYLINDER 3
No longer availableSearch Nationwide Inventory
$52.19
You save $5.80
-10%
7
Yamaha Motors
Air Shroud Damper3VL-E2658-00-00
Required: 2
DAMPER, AIR SHROUD 1
$3.96
You save $0.44
-10%
8
Yamaha Motors
COLLAR90387-06023-00
Required: 3
COLLAR
Supersedes: 90387-067T6-00
$9.44
You save $1.05
-10%
$2.79
You save $0.31
-20%
10
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 3
SCREW, PAN HEAD
In stock
Only 5 remaining
$1.88
You save $0.47
-10%
11
Yamaha Motors
Plate Washer92907-06600-00
Required: 3
WASHER, PLATE
$0.90
You save $0.10
-10%
12
Yamaha Motors
Fan3VL-E2611-01-00
Required: 1
FAN
Supersedes: 3VL-E2611-00-00
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-15%
13
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 3
SCREW, PAN HEAD
In stock
5+ in stock
$2.93
You save $0.52
-15%
14
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
In stock
5+ in stock
$3.02
You save $0.53
-15%
15
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
