1996 Scooter CY50R - CY50R (3WG6) [999] EQUIPO ELECTRICO 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

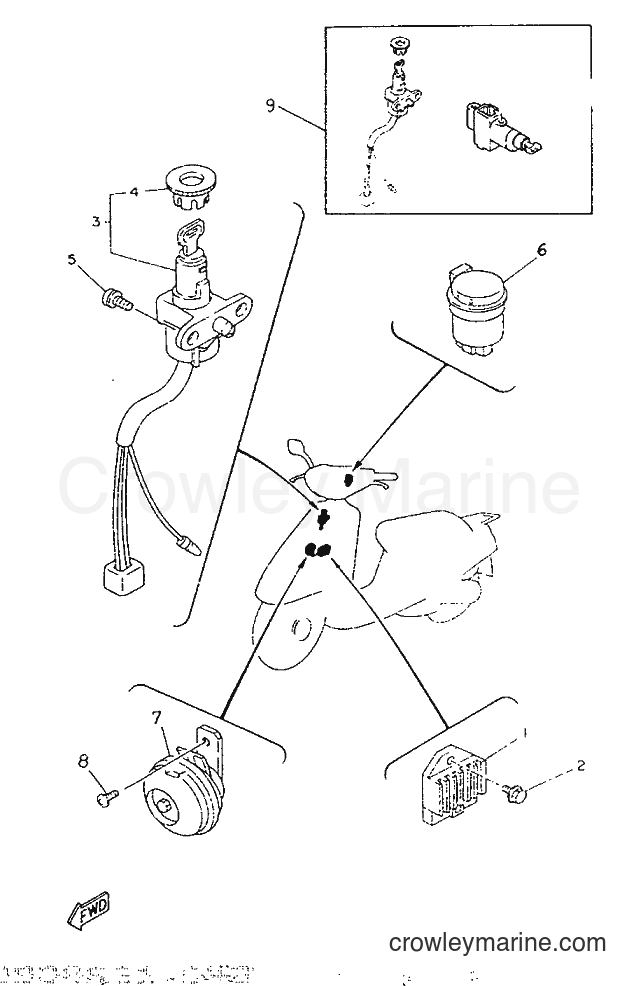

Yamaha Motors CY50R (3WG6) [999] - EQUIPO ELECTRICO 1
Change View:
MAIN SWITCH STEERING LOCK
3
Yamaha Motors
MAIN SWITCH STEERING LOCK3WG-H2501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
. CAP, SWITCH
4
Yamaha Motors
. CAP, SWITCH4MJ-H2552-00
Required: 1
. CAP, SWITCH
Price unavailable
-10%
Bolt (4MY)
5
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 1
BOLT
Supersedes: 91316-06010-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
FLASHER RELAY ASSY
6
Yamaha Motors
FLASHER RELAY ASSY4MJ-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
HORN
7
Yamaha Motors
HORN4MJ-H3371-00
Required: 1
HORN
Price unavailable
-10%
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
KEY SET
9
Yamaha Motors
KEY SET3WG-S2501-00
Required: 1
KEY SET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
