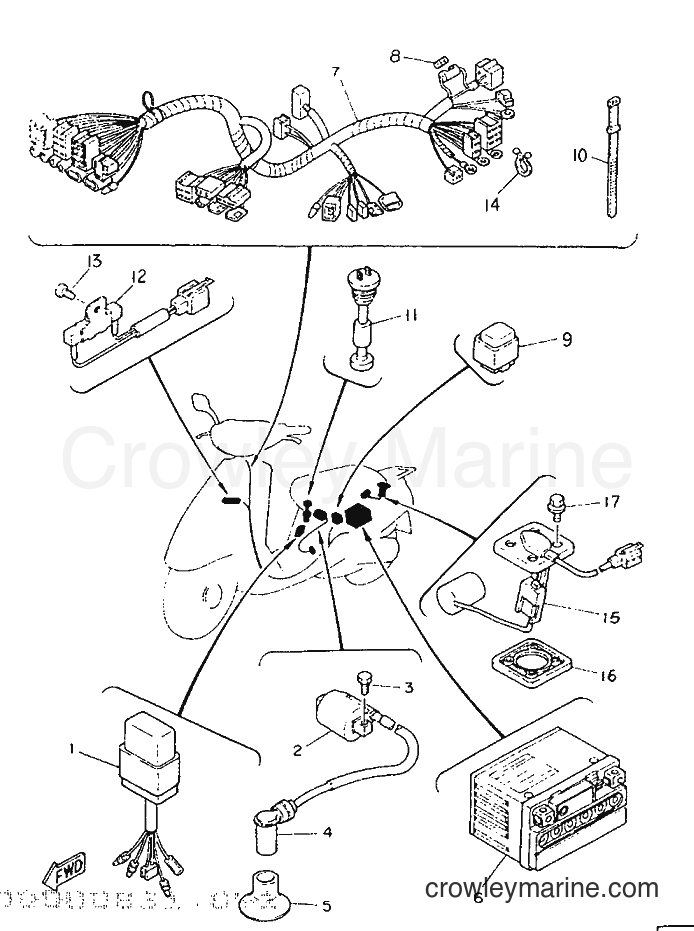

1996 Scooter CY50R - CY50R (3WG6) [999] EQUIPO ELECTRICO 2 diagram
![Yamaha Motors CY50R (3WG6) [999] - EQUIPO ELECTRICO 2](https://cdn.crowleymarine.com/yamaha/uth5ZVfR.png)
1
Yamaha Motors
C.D.I. UNIT ASSY3SL-85540-10
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
2
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-01-00
$37.79
You save $4.20
-15%
In stock
Only 5 remaining
$2.35
You save $0.41
-10%
4
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
$26.09
You save $2.90
-10%
5
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
$7.64
You save $0.85
6
Yamaha Motors
BATTERY ASSY3UC-82100-00
Required: 1
BATTERY ASSY
Price unavailable
7
Yamaha Motors
WIRE HARNESS ASSY3WG-H2590-R1
Required: 1
WIRE HARNESS ASSY
Price unavailable
8
Yamaha Motors
FUSE3WG-H2151-00
Required: 1
FUSE
Price unavailable
-10%
9
Yamaha Motors
29U-81950-93-0027V-81940-02-00
Required: 1
STARTER RELAY ASSY
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
10
Yamaha Motors
BAND, SWITCH CORD5T8-H3936-10
Required: 4
BAND, SWITCH CORD
Price unavailable
-10%
11
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
$58.49
You save $6.50
12
Yamaha Motors
OIL LEVEL GAUGE ASSY3WG-H5730-10
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
-10%
13
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06010-00
$8.54
You save $0.95
-10%
$7.64
You save $0.85
-10%
15
Yamaha Motors
FUEL METER SENDER ASSEMBLY3KJ-85752-00-00
Required: 1
SENDER UNIT ASSY, FUEL METER
No longer availableSearch Nationwide Inventory
$73.79
You save $8.20
16
Yamaha Motors
GASKET, SENDER UNIT3WG-H5753-00
Required: 1
GASKET, SENDER UNIT
Price unavailable
-10%
17
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
