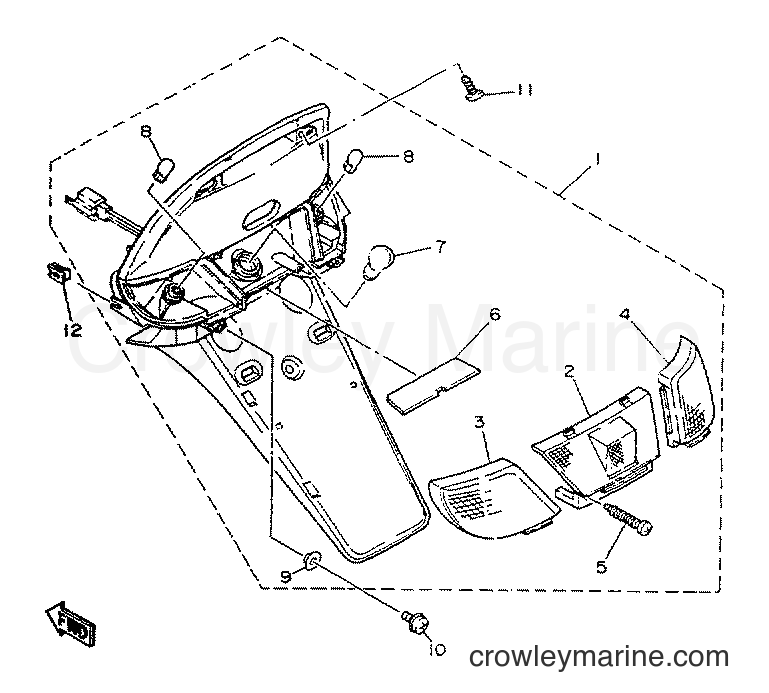

1996 Scooter YA50S - YA50S (4MJ7) [999] LUCES PILOTO TRASERO diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YA50S (4MJ7) [999] - LUCES PILOTO TRASERO
Change View:
TAILLIGHT ASSY
1
Yamaha Motors
TAILLIGHT ASSY4MJ-H4700-B0
Required: 1
TAILLIGHT ASSY
Price unavailable
. LENS, TAILLIGHT
2
Yamaha Motors
. LENS, TAILLIGHT4MJ-H4721-00
Required: 1
. LENS, TAILLIGHT
Price unavailable
. LENS, FLASHER
3
Yamaha Motors
. LENS, FLASHER4MJ-H3332-A0
Required: 1
. LENS, FLASHER
Price unavailable
. LENS, FLASHER 2
4
Yamaha Motors
. LENS, FLASHER 24MJ-H3342-A0
Required: 1
. LENS, FLASHER 2
Price unavailable
. SCREW, TAPPING
5
Yamaha Motors
. SCREW, TAPPING97701-40620
Required: 2
. SCREW, TAPPING
Price unavailable
. LENS, LICENCE LIGHT
6
Yamaha Motors
. LENS, LICENCE LIGHT4MJ-H4743-00
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
. BULB (P21/5W)
7
Yamaha Motors
. BULB (P21/5W)4BA-H4714-00
Required: 1
. BULB (P21/5W)
Price unavailable
. BULB (12V 10W)
8
Yamaha Motors
. BULB (12V 10W)3TH-H3311-00
Required: 2
. BULB (12V 10W)
Price unavailable
. WASHER, SPECIAL
9
Yamaha Motors
. WASHER, SPECIAL4MJ-H4725-00
Required: 2
. WASHER, SPECIAL
Price unavailable
-10%
Bolt with Washer
10
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06043-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
