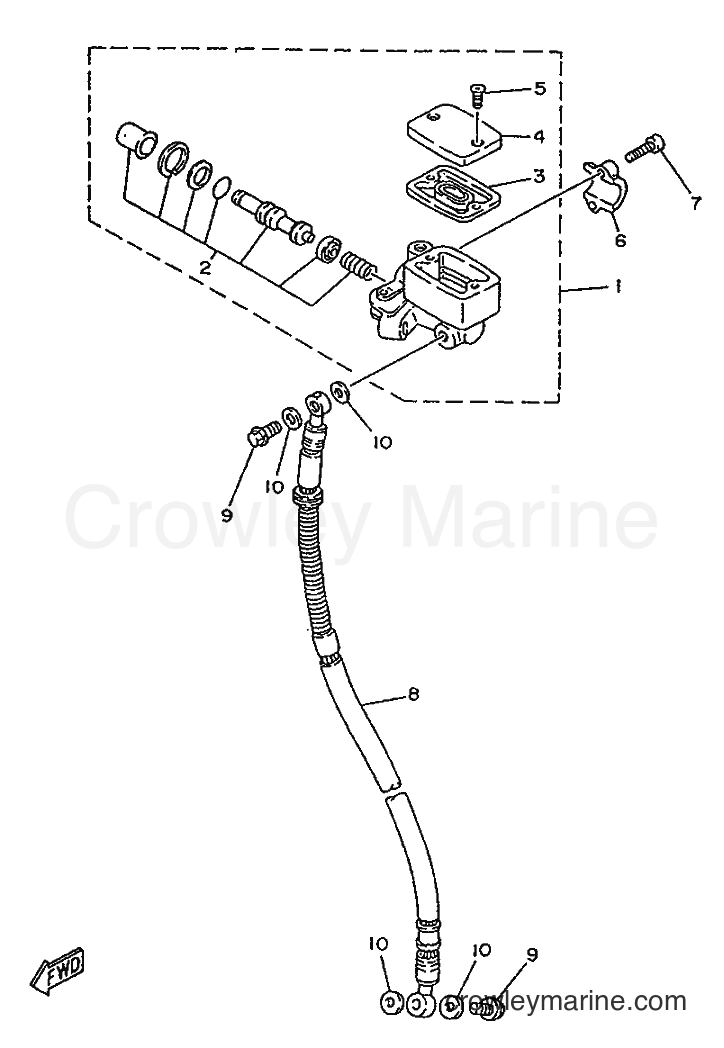

1996 Scooter YA50S - YA50S (4MJ9) [999] BOMBA DE FRENO DELANTERA diagram
![Yamaha Motors YA50S (4MJ9) [999] - BOMBA DE FRENO DELANTERA](https://cdn.crowleymarine.com/yamaha/xUeepW8p.png)
1
Yamaha Motors
MASTER CYLINDER ASSY3RY-2583T-03
Required: 1
MASTER CYLINDER ASSY
Price unavailable
-10%
2
Yamaha Motors
MASTER CYLINDER KIT5RS-25807-03-00
Required: 1
. CYLINDER KIT, MASTER
Supersedes: 3RW-W0041-02-00
$40.49
You save $4.50
-10%
3
Yamaha Motors
DIAPHRAGM RESERVOR3RW-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$16.19
You save $1.80
-10%
4
Yamaha Motors
Reservoir Cap4GY-25852-01-00
Required: 1
. CAP, RESERVOIR
Supersedes: 3RW-25852-00-00
$41.39
You save $4.60
-10%
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 1
. SCREW, FLAT HEAD
$1.67
You save $0.19
-10%
6
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$28.79
You save $3.20
-50%
7
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 91312-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
8
Yamaha Motors
HOSE, BRAKE 14PC-F5872-10
Required: 1
HOSE, BRAKE 1
Price unavailable
9
Yamaha Motors
BOLT, OIL 12RN-F5877-00
Required: 2
BOLT, OIL 1
Price unavailable
-20%
10
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
