Find all guaranteed-fit parts for your motorcycle
Where is my model number?
All diagrams for this model

1997 Scooter CW50RSP - CW50RSP (4WL3) [999] EQUIPO ELECTRICO 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

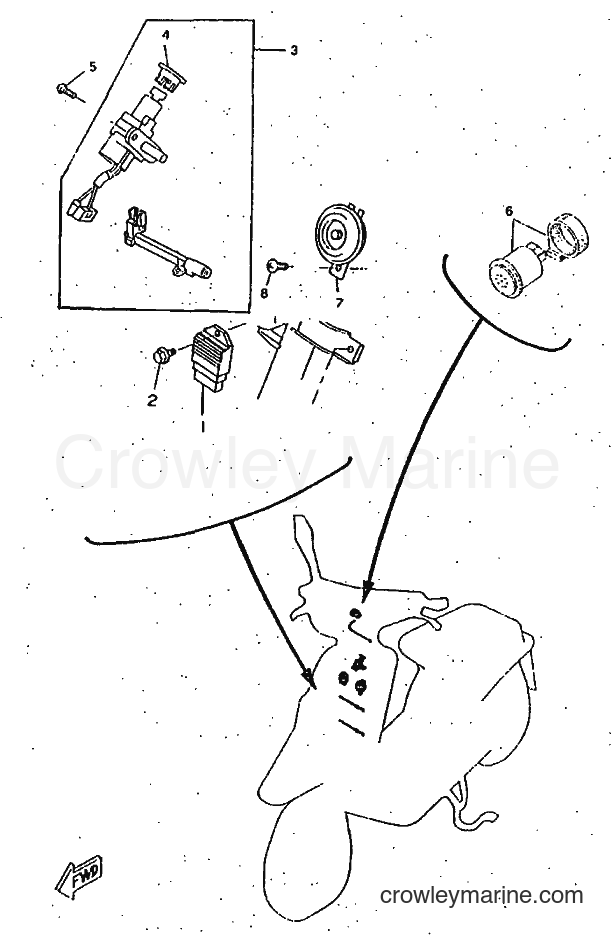

Yamaha Motors CW50RSP (4WL3) [999] - EQUIPO ELECTRICO 1
Change View:
-10%
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
KEY SET
3
Yamaha Motors
KEY SET4SB-H2021-02
Required: 1
KEY SET
Price unavailable
-10%
Cap
4
Yamaha Motors
Cap1S0-H2552-00-00
Required: 1
CAP
Supersedes: 4VV-H2532-00-00
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details
-10%
BOLT
5
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.76
You save $0.20
More details
FLASHER RELAY ASSY
6
Yamaha Motors
FLASHER RELAY ASSY4SB-83350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
-10%
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
