1997 Scooter DT50R - DT50R (5EC1) [999] EQUIPO ELECTRICO 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

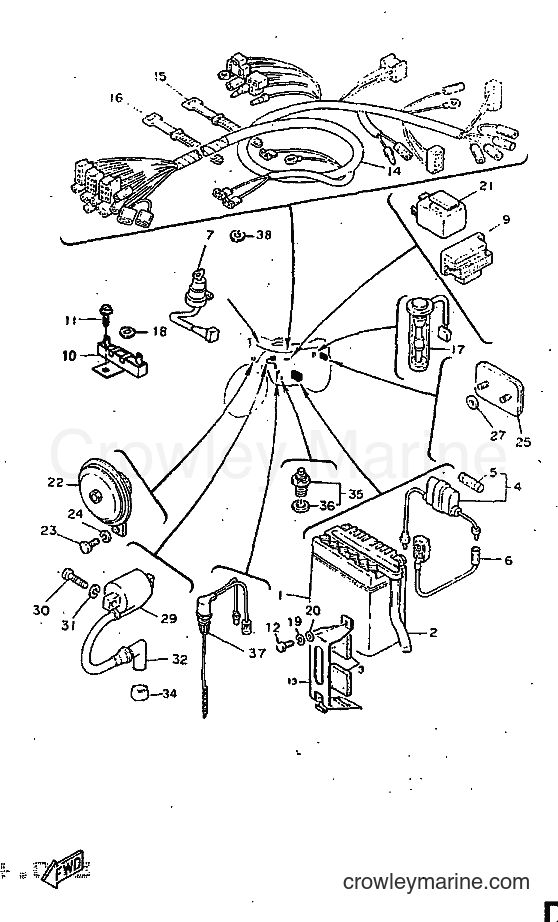

Yamaha Motors DT50R (5EC1) [999] - EQUIPO ELECTRICO 1
Change View:
BATTERY ASSY
1
Yamaha Motors
BATTERY ASSY3HL-82110-01
Required: 1
BATTERY ASSY
Price unavailable
SEAT, BATTERY
3
Yamaha Motors
SEAT, BATTERY3HL-H2122-00
Required: 2
SEAT, BATTERY
Price unavailable
FUSE HOLDER ASSY (6V-10A)
4
Yamaha Motors
FUSE HOLDER ASSY (6V-10A)5T8-H2150-00
Required: 1
FUSE HOLDER ASSY (6V-10A)
Price unavailable
-10%
Obsolete Yamaha Part
5
Yamaha Motors
Obsolete Yamaha Part1A0-82151-00-00
Required: 2
FUSE (10A)
Supersedes: 116-82151-00-00
Cross Ship
Leaves in 2-5 days
$17.99
$16.19
You save $1.80
More details
WIRE, PLUS LEAD
6
Yamaha Motors
WIRE, PLUS LEAD10W-82115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
MAIN SWITCH ASSY
7
Yamaha Motors
MAIN SWITCH ASSY5BK-H2510-00
Required: 1
MAIN SWITCH ASSY
Price unavailable
RECTIFIER & REGULATOR ASSY
9
Yamaha Motors
RECTIFIER & REGULATOR ASSY5BK-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
RESISTOR ASSY
10
Yamaha Motors
RESISTOR ASSY5BK-H5370-00
Required: 1
RESISTOR ASSY
Price unavailable
SCREW 1
11
Yamaha Motors
SCREW 15BK-H1445-00
Required: 1
SCREW 1
Price unavailable
A16-63161-00
12
Yamaha Motors
A16-63161-00NJ9-63161-00
Required: 1
A16-63161-00
Price unavailable
BAND
15
Yamaha Motors
BANDNH7-51470-70
Required: 5
BAND
Price unavailable
-10%
Switch Cord Band
16
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Supersedes: 4KH-H3936-00-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
OIL LEVEL GAUGE ASSY
17
Yamaha Motors
OIL LEVEL GAUGE ASSY3HL-85720-01
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
WASHER 2
19
Yamaha Motors
WASHER 23HL-F2244-00
Required: 2
WASHER 2
Price unavailable
WASHER, SPECIAL
20
Yamaha Motors
WASHER, SPECIALNU3-84138-00
Required: 1
WASHER, SPECIAL
Price unavailable
FLASHER RELAY ASSY
21
Yamaha Motors
FLASHER RELAY ASSY5BK-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
BOLT
23
Yamaha Motors
BOLTNG8-63221-00
Required: 1
BOLT
Price unavailable
WASHER ONDUFLEX
24
Yamaha Motors
WASHER ONDUFLEXNH8-52480-00
Required: 1
WASHER ONDUFLEX
Price unavailable
REAR REFLECTOR ASSY
25
Yamaha Motors
REAR REFLECTOR ASSY5BK-H5130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable
WASHER, SPECIAL
27
Yamaha Motors
WASHER, SPECIAL5BK-H4127-00
Required: 2
WASHER, SPECIAL
Price unavailable
IGNITION COIL ASSY
29
Yamaha Motors
IGNITION COIL ASSY5BK-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
BOLT
30
Yamaha Motors
BOLTNE5-32271-00
Required: 2
BOLT
Price unavailable
WASHER, SPECIAL
31
Yamaha Motors
WASHER, SPECIALNU3-84138-00
Required: 2
WASHER, SPECIAL
Price unavailable
-10%
Plug Cap Assembly
32
Yamaha Motors
Plug Cap Assembly1J7-82370-00-00
Required: 1
PLUG CAP ASSY
Cross Ship
Leaves in 2-5 days
$105.99
$95.39
You save $10.60
More details
GASKET
34
Yamaha Motors
GASKET90430-09824
Required: 1
GASKET
Price unavailable
NEUTRAL SWITCH ASSY
35
Yamaha Motors
NEUTRAL SWITCH ASSY3NC-H2540-00
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
GASKET
36
Yamaha Motors
GASKET5BK-H2543-00
Required: 1
GASKET
Price unavailable
STOP SWITCH ASSY
37
Yamaha Motors
STOP SWITCH ASSY5BK-H2530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
NUT, MAIN SWITCH
38
Yamaha Motors
NUT, MAIN SWITCH4CT-H2569-00
Required: 1
NUT, MAIN SWITCH
Price unavailable
