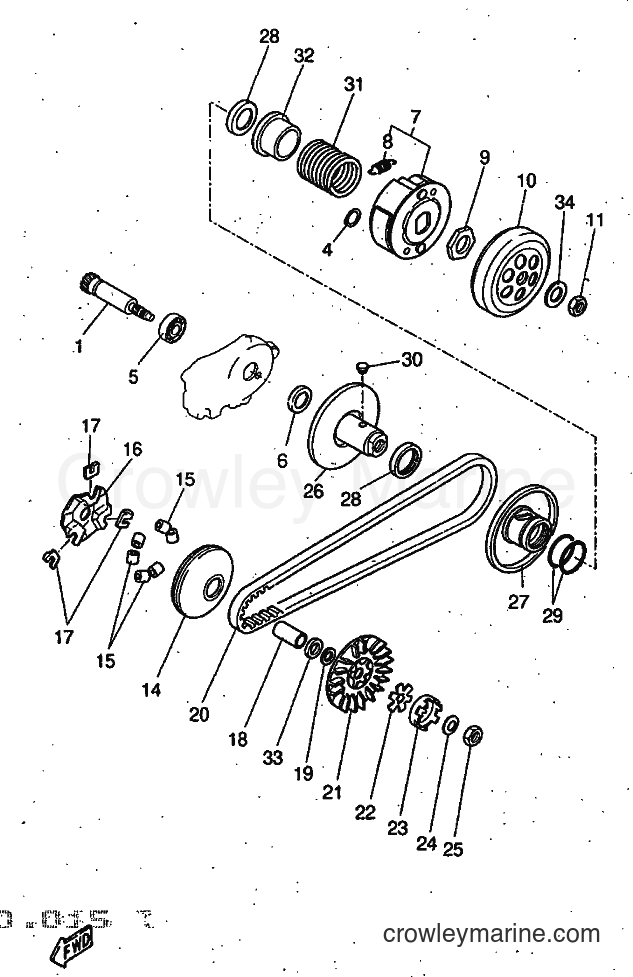

1997 Scooter YQ50 - YQ50 (5DP1) [999] CLUTCH diagram
![Yamaha Motors YQ50 (5DP1) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/hGzY0xt3.png)
-10%
1
Yamaha Motors
Primary Drive Gear3VL-E6111-00-00
Required: 1
GEAR, PRIMARY DRIVE
No longer availableSearch Nationwide Inventory
$218.69
You save $24.30
-15%
4
Yamaha Motors
Circle Clip99080-05600-00
Required: 3
CIRCLIP
Supersedes: 99001-05600-00
In stock
Only 1 remaining
$8.07
You save $1.42
-10%
5
Yamaha Motors
Bearing93306-20327-00
Required: 1
BEARING
Supersedes: 93306-20301-00
$38.69
You save $4.30
-10%
6
Yamaha Motors
Oil Seal93102-17467-00
Required: 1
OIL SEAL
Supersedes: 93102-17342-00
$16.64
You save $1.85
-10%
7
Yamaha Motors
Clutch Carrier Assembly5BR-E6620-00-00
Required: 1
CLUTCH CARRIER ASSY
No longer availableSearch Nationwide Inventory
$197.09
You save $21.90
-10%
8
Yamaha Motors
CLUTCH WEIGH SPRING5BR-E6626-00-00
Required: 2
SPRING, CLUTCH WEIGHT 1
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
10
Yamaha Motors
Clutch Housing Component5BR-E6611-10-00
Required: 1
CLUTCH HOUSING COMP.
Supersedes: 5BR-E6611-00-00
$62.99
You save $7.00
-10%
$8.54
You save $0.95
-10%
14
Yamaha Motors
PRIMARY SLIDING SHEAVE5WW-E7620-10-00
Required: 1
PRIMARY SLIDING SHEAVE COMP.
Supersedes: 4CU-E7620-00-00
$84.59
You save $9.40
15
Yamaha Motors
WEIGHT4FG-E7632-00
Required: 6
WEIGHT
Price unavailable
-10%
16
Yamaha Motors
CAM4B0-E7623-00-00
Required: 1
CAM
Supersedes: 3VL-E7623-00-00
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
17
Yamaha Motors
Slider4B0-E7653-00-00
Required: 3
SLIDER
Supersedes: 3VL-E7653-00-00
$4.46
You save $0.50
-10%
$16.64
You save $1.85
-10%
19
Yamaha Motors
Plain Washer90201-133M8-00
Required: 1
WASHER, PLATE
$7.64
You save $0.85
-50%
In stock
Only 1 remaining
$30.00
You save $30.00
-10%
21
Yamaha Motors
PRIMARY FIXED SHEAVE5WW-E7611-10-00
Required: 1
SHEAVE, PRIMARY FIXED
Supersedes: 3VL-E7611-00-00
$68.39
You save $7.60
-10%
$5.84
You save $0.65
-10%
23
Yamaha Motors
One Way Clutch3KJ-15657-00-00
Required: 1
CLUTCH, ONEWAY
$41.39
You save $4.60
-10%
24
Yamaha Motors
Conical Spring Washer90208-10012-00
Required: 1
WASHER, CONICAL SPRING
$16.64
You save $1.85
25
Yamaha Motors
NUT90179-10219
Required: 1
NUT
Price unavailable
26
Yamaha Motors
SECONDARY FIXED SHEAVE5BR-E7660-00-00
Required: 1
SECONDARY FIXED SHEAVE COMP.
No longer availableSearch Nationwide Inventory
$129.36
27
Yamaha Motors
Secondary Sheave5BR-E7671-00-00
Required: 1
SHEAVE, SECONDARY
$108.57
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$4.00
You save $0.45
-10%
$2.30
You save $0.25
-10%
31
Yamaha Motors
Compression Spring90501-35864-00
Required: 1
SPRING, COMPRESSION
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
-10%
32
Yamaha Motors
SEAT SPRING SET5BR-E7684-10-00
Required: 1
SEAT, SECONDARY SPRING
Supersedes: 5BR-E7684-00-00
$17.09
You save $1.90
33
Yamaha Motors
SPACER 15BR-E7654-00
Required: 1
SPACER 1
Price unavailable
$0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
