1997 Scooter YQ50 - YQ50 (5DP1) [999] REAR WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

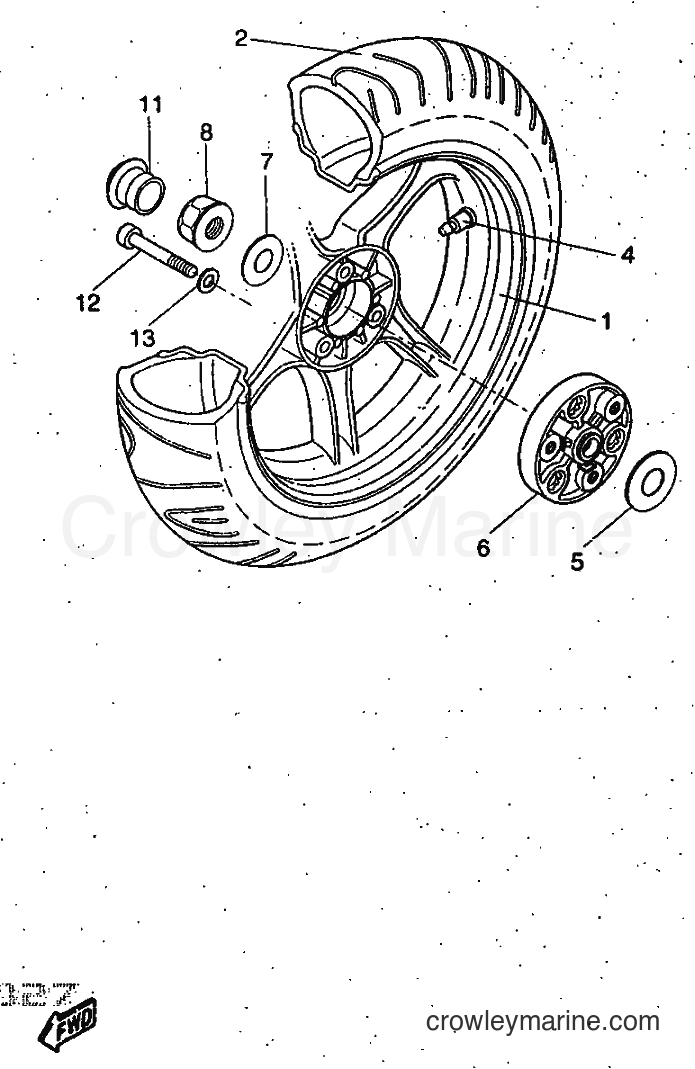

Yamaha Motors YQ50 (5DP1) [999] - REAR WHEEL

Change View:

Yamaha Motors

CAST WHEEL, REAR5BR-F5338-00

Required: 1

CAST WHEEL, REAR

Price unavailable

Yamaha Motors

REAR TIRE SET5BR-F5308-10

Required: 1

REAR TIRE SET

Price unavailable

Yamaha Motors

REAR TIRE SET5BR-F5308-00

Required: 1

REAR TIRE SET

Price unavailable

Yamaha Motors

AIR VALVE ASSY5BR-F5170-00

Required: 1

AIR VALVE ASSY

Price unavailable

-10%

Yamaha Motors

Plate Washer90201-177G4-00

Required: 1

WASHER, PLATE

~~$10.49~~

$9.44

You save $1.05

More details

Yamaha Motors

HUB, REAR5BR-F5311-00

Required: 1

HUB, REAR

Price unavailable

-10%

Yamaha Motors

Plate Washer90201-142M6-00

Required: 1

WASHER, PLATE

~~$10.49~~

$9.44

You save $1.05

More details

-50%

Yamaha Motors

Self-Locking Nut90185-14070-00

Required: 1

NUT, SELF-LOCKING

In stock

Only 1 remaining

~~$14.49~~

$7.24

You save $7.24

More details

Yamaha Motors

CAP, WHEEL(REAR)5BR-F532A-00

Required: 1

CAP, WHEEL(REAR)

Price unavailable

Yamaha Motors

BOLT, HEXAGON SOCKET HEAD90110-10X00

Required: 3

BOLT, HEXAGON SOCKET HEAD

Price unavailable

Yamaha Motors

WASHER, PLATE90201-10X01

Required: 3

WASHER, PLATE

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
