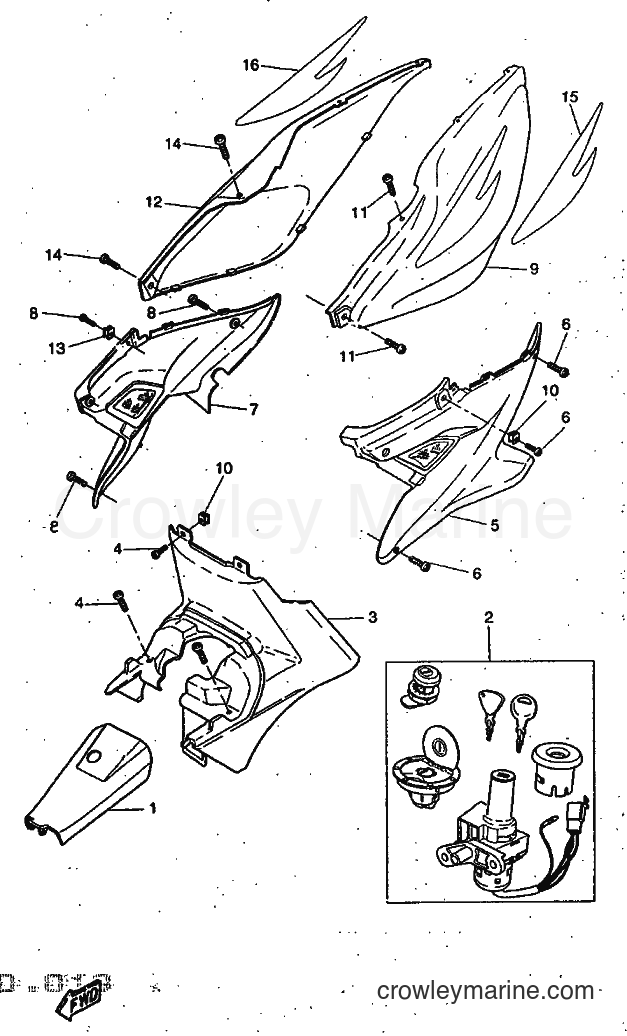

1997 Scooter YQ50 - YQ50 (5DP1) [999] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50 (5DP1) [999] - SIDE COVER
Change View:
LID
1
Yamaha Motors
LID5BR-F177E-00
Required: 1
LID
Price unavailable
KEY SET
2
Yamaha Motors
KEY SET5BR-H2021-00
Required: 1
KEY SET
Price unavailable
LID, SIDE COVER
3
Yamaha Motors
LID, SIDE COVER5BR-F1716-00
Required: 1
LID, SIDE COVER
Price unavailable
SCREW, UNION
4
Yamaha Motors
SCREW, UNIONNU6-21768-00
Required: 4
SCREW, UNION
Price unavailable
COVER, SIDE 1
5
Yamaha Motors
COVER, SIDE 15BR-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
SCREW, UNION
6
Yamaha Motors
SCREW, UNIONNU6-21768-10
Required: 2
SCREW, UNION
Price unavailable
COVER, SIDE 2
7
Yamaha Motors
COVER, SIDE 25BR-F1721-00
Required: 1
COVER, SIDE 2
Price unavailable
SCREW, UNION
8
Yamaha Motors
SCREW, UNIONNU6-21768-10
Required: 3
SCREW, UNION
Price unavailable
COVER, SIDE 3
9
Yamaha Motors
COVER, SIDE 35BR-F1731-01-P1
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 3
9
Yamaha Motors
COVER, SIDE 35BR-F1731-01-P4
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 3
9
Yamaha Motors
COVER, SIDE 35BR-F1731-01-P0
Required: 1
COVER, SIDE 3
Price unavailable
SCREW, UNION
11
Yamaha Motors
SCREW, UNIONNU6-21768-00
Required: 2
SCREW, UNION
Price unavailable
COVER, SIDE 4
12
Yamaha Motors
COVER, SIDE 45BR-F1741-01-P1
Required: 1
COVER, SIDE 4
Price unavailable
COVER, SIDE 4
12
Yamaha Motors
COVER, SIDE 45BR-F1741-01-P0
Required: 1
COVER, SIDE 4
Price unavailable
COVER, SIDE 4
12
Yamaha Motors
COVER, SIDE 45BR-F1741-01-P4
Required: 1
COVER, SIDE 4
Price unavailable
SCREW, UNION
14
Yamaha Motors
SCREW, UNIONNU6-21768-00
Required: 2
SCREW, UNION
Price unavailable
GRAPHIC 1
15
Yamaha Motors
GRAPHIC 15BR-F173E-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
16
Yamaha Motors
GRAPHIC 25BR-F173F-00
Required: 1
GRAPHIC 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
