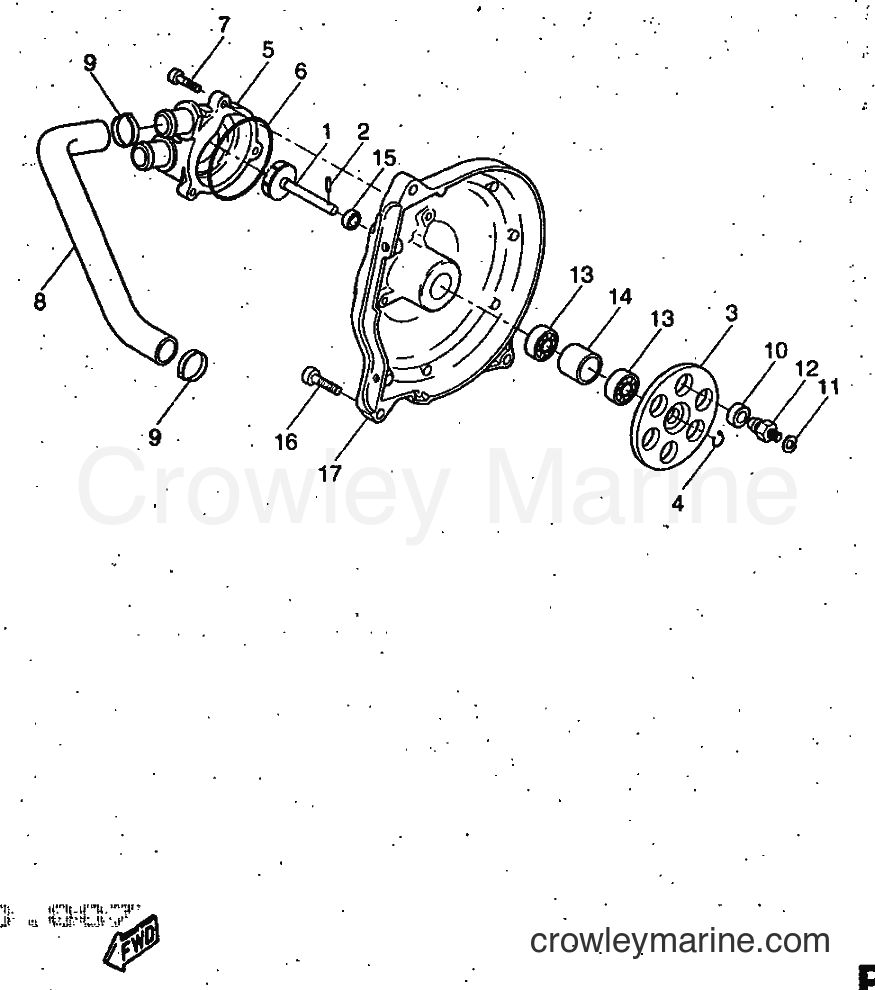

1997 Scooter YQ50 - YQ50 (5DP1) [999] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50 (5DP1) [999] - WATER PUMP
Change View:
IMPELLER SHAFT ASSY
1
Yamaha Motors
IMPELLER SHAFT ASSY5BR-E2450-00
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
-10%
Dowel Pin
2
Yamaha Motors
Dowel Pin93603-22028-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$4.05
$3.65
You save $0.40
More details
GEAR, IMPELLER SHAFT
3
Yamaha Motors
GEAR, IMPELLER SHAFT5BR-E2459-00
Required: 1
GEAR, IMPELLER SHAFT
Price unavailable
COVER, HOUSING
5
Yamaha Motors
COVER, HOUSING5BR-E2422-00
Required: 1
COVER, HOUSING
Price unavailable
O-RING
6
Yamaha Motors
O-RING93210-548E8
Required: 1
O-RING
Price unavailable
-10%
BOLT
7
Yamaha Motors
BOLT91317-05020-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
PIPE 3
8
Yamaha Motors
PIPE 35BR-E2483-00
Required: 1
PIPE 3
Price unavailable
CLAMP
9
Yamaha Motors
CLAMP90465-06830
Required: 1
CLAMP
Price unavailable
GROMMET
10
Yamaha Motors
GROMMET90480-06874
Required: 3
GROMMET
Price unavailable
BOLT
12
Yamaha Motors
BOLT90109-06X00
Required: 3
BOLT
Price unavailable
BEARING
13
Yamaha Motors
BEARING93306-608Y0
Required: 2
BEARING
Price unavailable
COLLAR
14
Yamaha Motors
COLLAR90387-178S8
Required: 1
COLLAR
Price unavailable
OIL SEAL
15
Yamaha Motors
OIL SEAL93101-10842
Required: 1
OIL SEAL
Price unavailable
BOLT, HEXAGON SOCKET HEAD
16
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X01
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable
COVER, CRANKCASE 2
17
Yamaha Motors
COVER, CRANKCASE 25BR-E5421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
