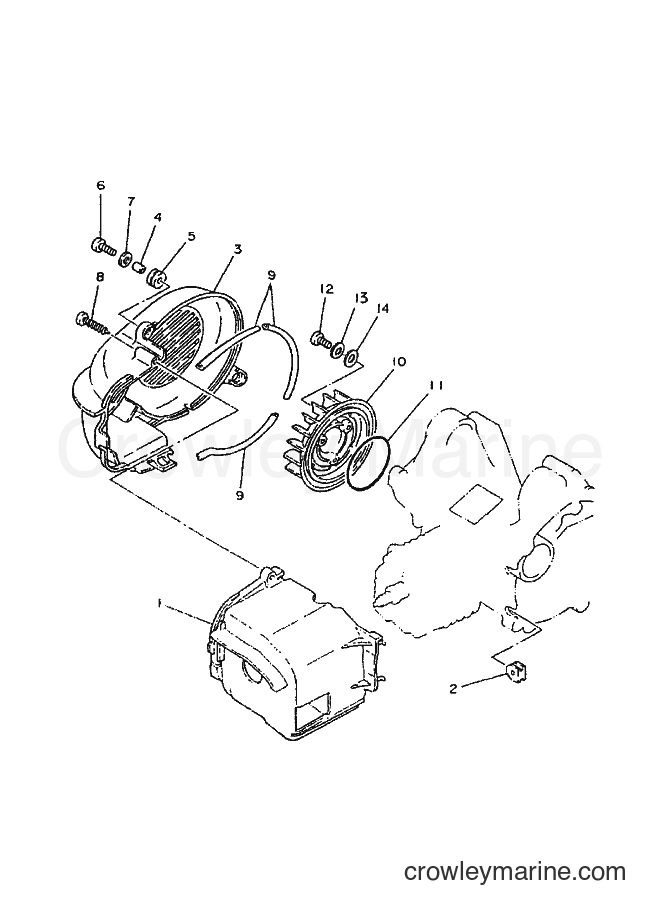

1999 Scooter CY50R - CY50R (3WG8) [010] AIR SHROUD & FAN diagram
![Yamaha Motors CY50R (3WG8) [010] - AIR SHROUD & FAN](https://cdn.crowleymarine.com/yamaha/2p5DOe4u.png)
1
Yamaha Motors
AIR SHROUD, CYLINDER 14CU-E2651-00
Required: 1
AIR SHROUD, CYLINDER 1
Price unavailable
-10%
$1.57
You save $0.18
3
Yamaha Motors
AIR SHROUD, CYLINDER 34CU-E2653-00
Required: 1
AIR SHROUD, CYLINDER 3
Price unavailable
-10%
4
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
COLLAR
Supersedes: 90387-06X06-00
$2.97
You save $0.33
5
Yamaha Motors
GROMMET90480-12X00
Required: 2
GROMMET
Price unavailable
-20%
6
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98506-06020-00
In stock
Only 5 remaining
$1.88
You save $0.47
7
Yamaha Motors
WASHER, PLATE90201-06815
Required: 2
WASHER, PLATE
Price unavailable
8
Yamaha Motors
SCREW, TAPPING90167-06X00
Required: 1
SCREW, TAPPING
Price unavailable
9
Yamaha Motors
DAMPER, AIR SHROUD 14CU-E2658-00
Required: 3
DAMPER, AIR SHROUD 1
Price unavailable
10
Yamaha Motors
FAN4MJ-E2611-00
Required: 1
FAN
Price unavailable
-15%
In stock
5+ in stock
$8.07
You save $1.42
-10%
12
Yamaha Motors
98580-06016-0098502-06016-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98501-06016-00
No longer availableSearch Nationwide Inventory
$3.02
You save $0.33
-15%
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
