1999 Scooter CY50R - CY50R (3WG8) [010] TUBO DE ESCAPE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

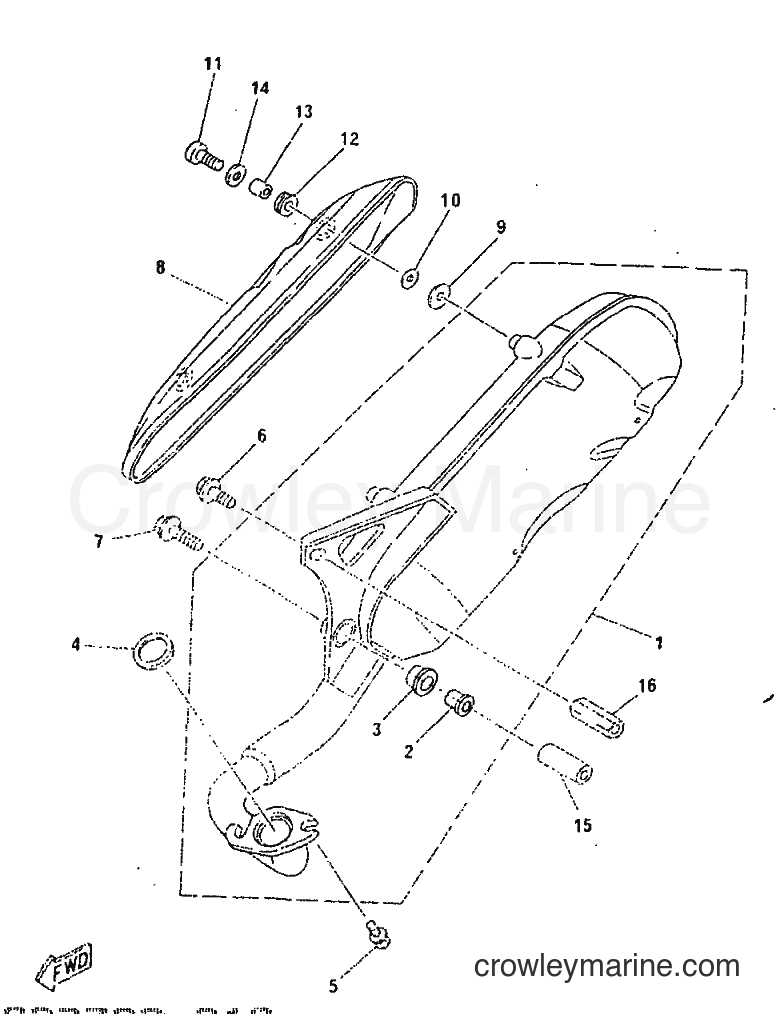

Yamaha Motors CY50R (3WG8) [010] - TUBO DE ESCAPE
Change View:
EXHAUST PIPE ASSY 1
1
Yamaha Motors
EXHAUST PIPE ASSY 13WG-E4610-00
Required: 1
EXHAUST PIPE ASSY 1
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
2
Yamaha Motors
GROMMET, WATER TUBE (UPPER)4MJ-E4445-00-00
Required: 1
. GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.21
You save $0.25
More details
. COLLAR
3
Yamaha Motors
. COLLAR4MJ-E4779-00
Required: 1
. COLLAR
Price unavailable
GASKET, EXHAUST PIPE
4
Yamaha Motors
GASKET, EXHAUST PIPE3WG-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
-10%
Hexagon Screw
5
Yamaha Motors
Hexagon Screw90153-06061-00
Required: 2
SCREW
Supersedes: 90149-06113-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
PROTECTOR, MUFFLER 1
8
Yamaha Motors
PROTECTOR, MUFFLER 13WG-E4718-R0
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
WASHER, PROTECTOR
9
Yamaha Motors
WASHER, PROTECTOR3WG-E4766-00
Required: 2
WASHER, PROTECTOR
Price unavailable
-10%
Grommet
12
Yamaha Motors
Grommet90480-12237-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$3.10
$2.79
You save $0.31
More details
-10%
COLLAR
13
Yamaha Motors
COLLAR90387-060G7-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
WASHER, PROTECTOR
14
Yamaha Motors
WASHER, PROTECTOR3WG-E4766-10
Required: 2
WASHER, PROTECTOR
Price unavailable
COLLAR
15
Yamaha Motors
COLLAR90387-088A9
Required: 1
COLLAR
Price unavailable
BOLT, FOOTREST
16
Yamaha Motors
BOLT, FOOTREST3WG-F7416-10
Required: 1
BOLT, FOOTREST
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
