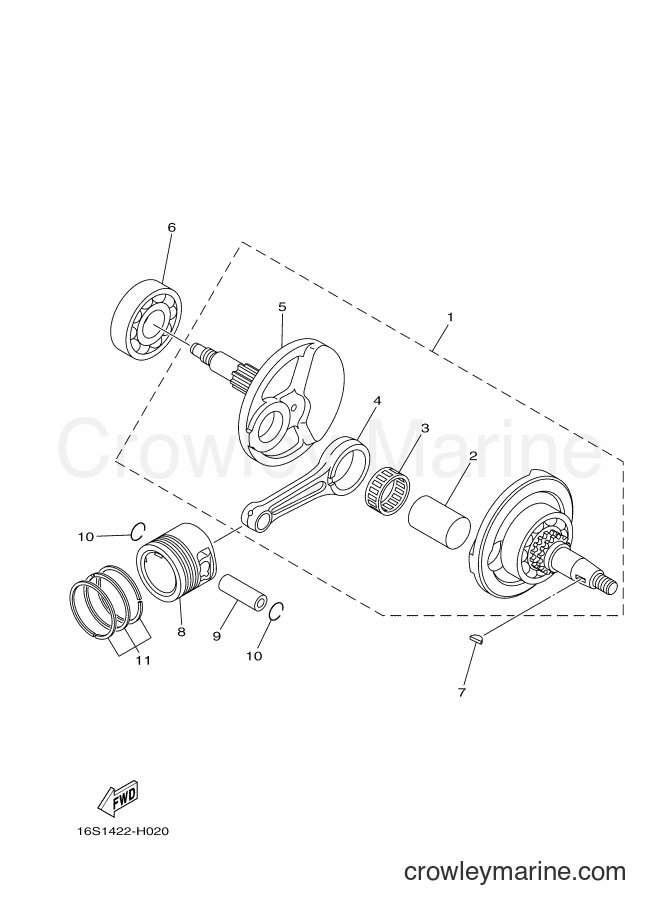

2009 Scooter T115 - T115 (5D91) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status
2009 Scooter T115 - T115 (5D91) [010] - CRANKSHAFT & PISTON 2009 Scooter T115 - T115 (5D91) [010] - CRANKSHAFT & PISTON

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
