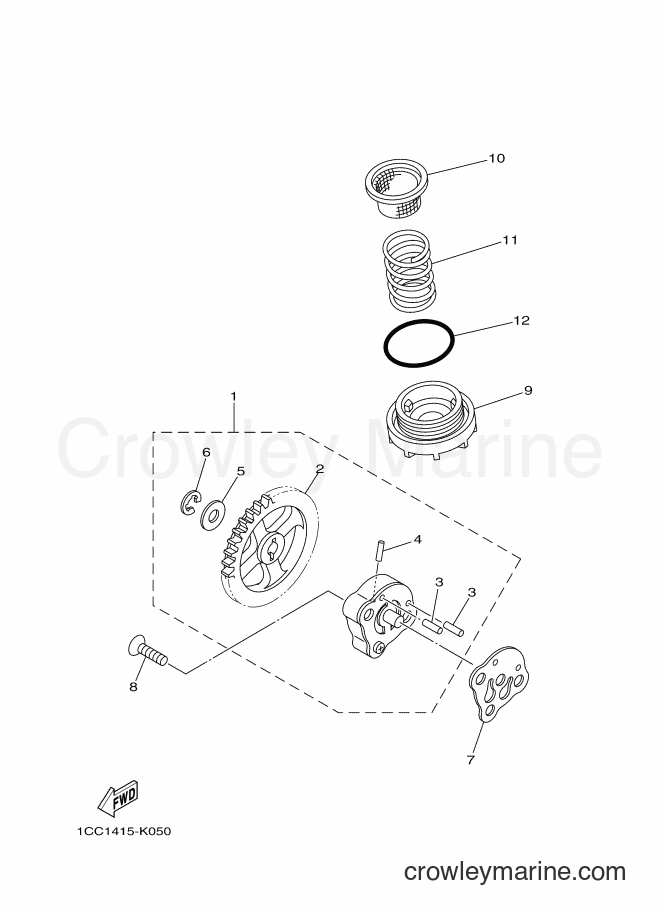

2012 Scooter XC100E - XC100E (1RS1) [010] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status
2012 Scooter XC100E - XC100E (1RS1) [010] - OIL PUMP 2012 Scooter XC100E - XC100E (1RS1) [010] - OIL PUMP

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Back to diagram
