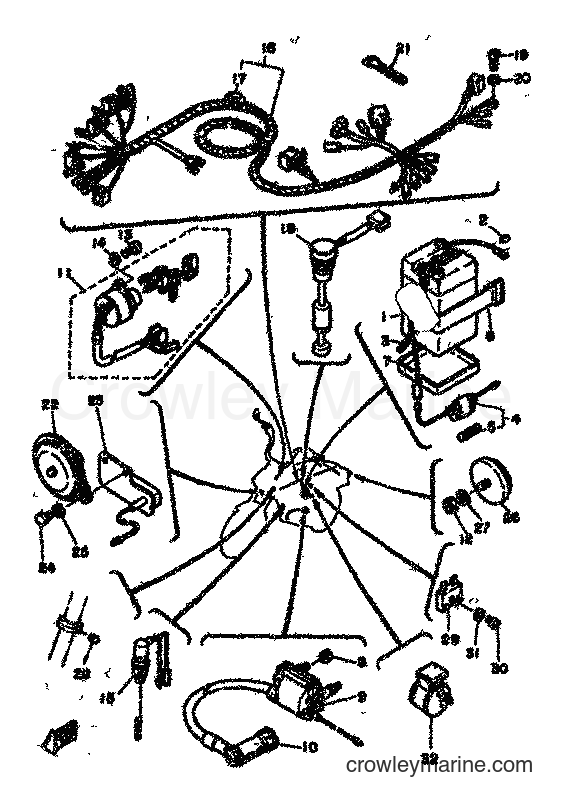

1981 Sport Bike TZ125H - TZ125H (5F5) [999] ELECTRICAL 1 diagram
![Yamaha Motors TZ125H (5F5) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/CwdeoFG3.png)
-10%
1
Yamaha Motors
6N4-2A-2 GS BATTERY6N4-2A200-00-00
Required: 1
BATTERY ASSY
Supersedes: 120-82110-29-00
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
-10%
2
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06010-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$2.15
You save $0.24
-10%
4
Yamaha Motors
55K-82150-01-0055K-82150-00-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 353-82150-00-00
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
$16.19
You save $1.80
-10%
7
Yamaha Motors
BATTERY SEAT268-82122-00-00
Required: 1
SEAT, BATTERY
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
9
Yamaha Motors
IGNITION COIL ASSEMBLY355-82310-40-00
Required: 1
IGNITION COIL ASSY
Supersedes: 439-82310-40-00
$190.79
You save $21.20
-10%
10
Yamaha Motors
Obsolete Yamaha Part7KA-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 512-82370-10-00
$66.59
You save $7.40
11
Yamaha Motors
MAIN SWITCH ASSY5F5-82508-20
Required: 1
MAIN SWITCH ASSY
Price unavailable
-10%
12
Yamaha Motors
Nut95303-05600-00
Required: 1
NUT
Supersedes: 95301-05600-00
No longer availableSearch Nationwide Inventory
$1.76
You save $0.20
-15%
13
Yamaha Motors
Screw97885-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05010-00
$2.68
You save $0.47
-15%
14
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
15
Yamaha Motors
Stop Switch1J7-82530-02-00
Required: 1
STOP SWITCH ASSY
Supersedes: 1J7-82530-00-00
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
16
Yamaha Motors
WIRE HARNESS ASSY5F5-82590-20
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
17
Yamaha Motors
DIODE3K7-81980-00-00
Required: 1
. DIODE ASSY
$26.09
You save $2.90
-10%
19
Yamaha Motors
98580-06008-0092501-06008-00
Required: 1
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-15%
20
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-10%
21
Yamaha Motors
CLAMP90464-30014-00
Required: 2
BAND, SWITCH CORD
Supersedes: 168-83936-01-00
$5.04
You save $0.56
22
Yamaha Motors
HORN2T5-83371-10
Required: 1
HORN
Price unavailable
23
Yamaha Motors
RESISTOR ASSY511-85370-10
Required: 1
RESISTOR ASSY
Price unavailable
-50%
24
Yamaha Motors
Bolt97013-06012-00
Required: 2
BOLT
Supersedes: 97301-06012-00
In stock
Only 3 remaining
$3.25
You save $3.25
-15%
25
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
26
Yamaha Motors
Rear Reflector449-85131-02-00
Required: 1
REFLECTOR, REAR 1
Supersedes: 449-85131-01-00
$30.59
You save $3.40
-15%
27
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
No longer availableSearch Nationwide Inventory
$1.57
You save $0.18
-10%
29
Yamaha Motors
RECTIFIER ASSY353-81970-M1-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-50-00
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
29
Yamaha Motors
RECTIFIER ASSY353-81970-M1-00
Required: 1
RECTIFIER ASSY
Supersedes: 353-81970-63-00
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
30
Yamaha Motors
Pan Head Screw98511-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-05020-00
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-15%
31
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
32
Yamaha Motors
FLASHER RELAY ASSY3K3-83350-12
Required: 1
FLASHER RELAY ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
