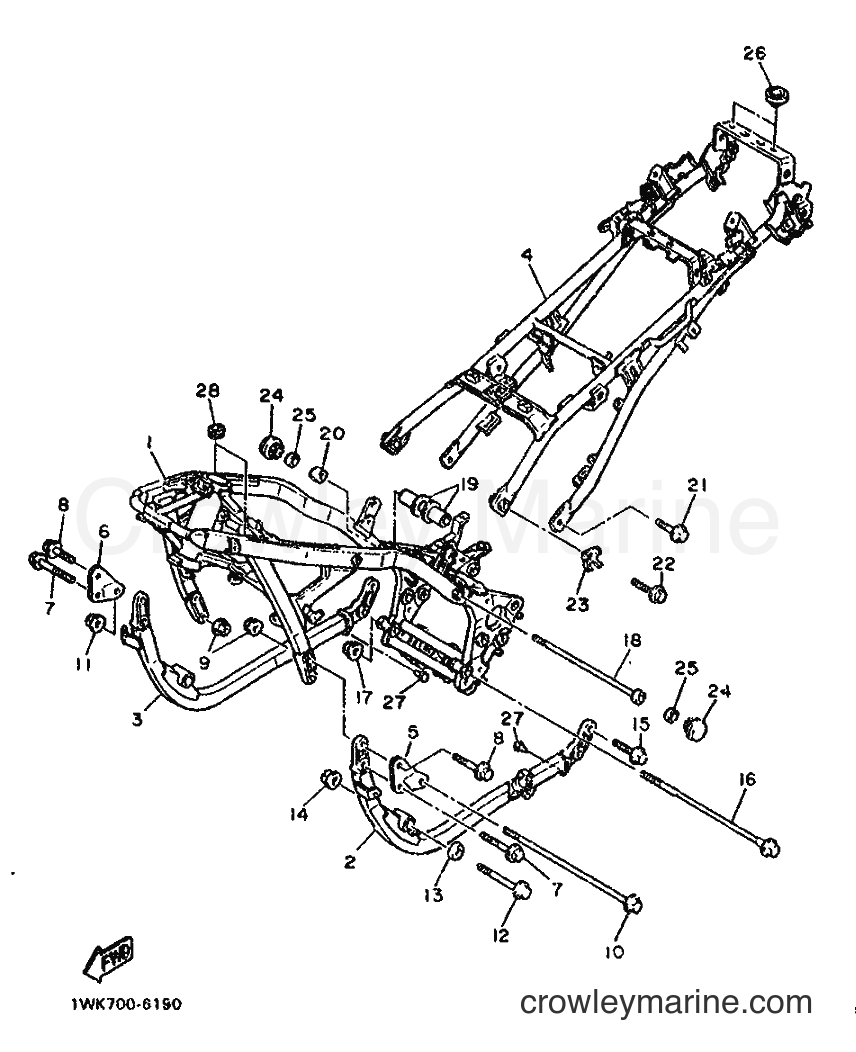

1986 Sport Bike FJ1200 - FJ1200 (1WH) [999] FRAME diagram
![Yamaha Motors FJ1200 (1WH) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/NSRUgT0A.png)
1
Yamaha Motors
FRAME COMP.1TX-21110-00-35
Required: 1
FRAME COMP.
Price unavailable
2
Yamaha Motors
DOWN TUBE COMP.1TX-21140-00-35
Required: 1
DOWN TUBE COMP.
Price unavailable
3
Yamaha Motors
DOWN TUBE COMP.21TX-21150-00-35
Required: 1
DOWN TUBE COMP.2
Price unavailable
-10%
4
Yamaha Motors
Rear Frame1TX-21190-00-33
Required: 1
REAR FRAME COMP.
No longer availableSearch Nationwide Inventory
$240.29
You save $26.70
-10%
5
Yamaha Motors
ENGINE STAY 236Y-21315-00-00
Required: 1
STAY, ENGINE 1
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
6
Yamaha Motors
Engine Stay36Y-21316-00-00
Required: 1
STAY, ENGINE 2
No longer availableSearch Nationwide Inventory
$13.94
You save $1.55
-10%
$5.84
You save $0.65
-50%
8
Yamaha Motors
Flange Bolt95817-08035-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-08368-00
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
9
Yamaha Motors
Nut90179-08491-00
Required: 4
NUT
Supersedes: 90179-08246-00
$2.52
You save $0.28
-10%
$28.79
You save $3.20
11
Yamaha Motors
NUT90179-10313
Required: 1
NUT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
13
Yamaha Motors
Conical Spring Washer90208-10039-00
Required: 2
WASHER, CONICAL SPRING
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-10%
$9.44
You save $1.05
-50%
15
Yamaha Motors
Flange Bolt95817-08035-00
Required: 4
BOLT, FLANGE
Supersedes: 90105-08368-00
In stock
Only 1 remaining
$5.25
You save $5.25
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$2.97
You save $0.33
-10%
18
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10073-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
19
Yamaha Motors
COLLAR90387-101V2-00
Required: 2
COLLAR
Supersedes: 90387-113L4-00
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
20
Yamaha Motors
Nut90179-10013-00
Required: 1
NUT
Supersedes: 90179-10377-00
$8.54
You save $0.95
-50%
21
Yamaha Motors
Washer Based Bolt90105-10638-00
Required: 2
BOLT, FLANGE
Supersedes: 90105-10308-00
In stock
Only 4 remaining
$4.25
You save $4.25
-10%
22
Yamaha Motors
BOLT90101-10303-00
Required: 2
BOLT
Supersedes: 90101-10524-00
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
25
Yamaha Motors
RUBBER DAMPER36Y-21485-00-00
Required: 2
DAMPER, RUBBER 1
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$9.89
You save $1.10
-10%
27
Yamaha Motors
Plug90338-07018-00
Required: 2
DAMPER 2
Supersedes: 4G0-21639-00-00
$7.64
You save $0.85
28
Yamaha Motors
GROMMET90480-01141
Required: 2
GROMMET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
