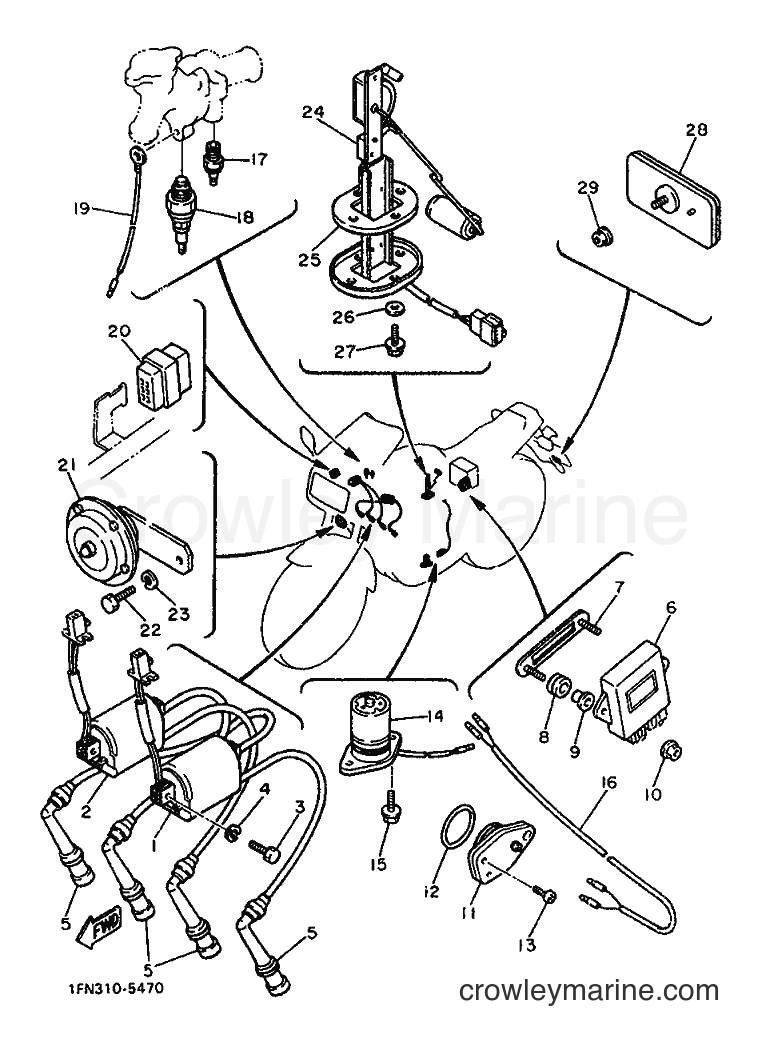

1986 Sport Bike FZ750 - FZ750 (1VR) [999] ELECTRICAL 1 diagram
![Yamaha Motors FZ750 (1VR) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/8At5mWW0.png)
-10%
1
Yamaha Motors
IGNITION COIL ASSEMBLY1AE-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 1AE-82310-60-00
No longer availableSearch Nationwide Inventory
$181.79
You save $20.20
-10%
2
Yamaha Motors
IGNITION COIL ASSEMBLY1AE-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 1AE-82320-60-00
No longer availableSearch Nationwide Inventory
$181.79
You save $20.20
-10%
$3.65
You save $0.41
-15%
4
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
5
Yamaha Motors
Plug Cap Assembly2KT-82370-00-00
Required: 4
PLUG CAP ASSY
Supersedes: 1AE-82370-00-00
$119.69
You save $13.30
-10%
6
Yamaha Motors
Ignitor Unit Assembly1AE-82305-10-00
Required: 1
IGNITOR UNIT ASSY
No longer availableSearch Nationwide Inventory
$619.19
You save $68.80
-10%
No longer availableSearch Nationwide Inventory
$1.95
You save $0.22
-10%
$8.54
You save $0.95
-15%
9
Yamaha Motors
Collar90387-06M52-00
Required: 2
COLLAR
Supersedes: 90387-077M3-00
In stock
5+ in stock
$6.37
You save $1.12
-20%
In stock
Only 1 remaining
$2.08
You save $0.52
-10%
11
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1AE-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-15%
13
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-10%
14
Yamaha Motors
OIL LEVEL GAUGE ASSY4H7-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 4H7-85720-01-00
$161.09
You save $17.90
-10%
15
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06016-00
$9.44
You save $1.05
-10%
16
Yamaha Motors
SUB LEAD WIRE1AE-82509-00-00
Required: 1
WIRE, SUB LEAD
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
17
Yamaha Motors
Thermo Switch Assembly47X-82560-00-00
Required: 1
THERMO SWITCH ASSY
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
$103.49
You save $11.50
-10%
19
Yamaha Motors
EARTH LEAD WIRE47X-82519-00-00
Required: 1
WIRE, LEAD
Supersedes: 1E6-81949-00-00
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-10%
20
Yamaha Motors
Flasher Relay Assembly41R-83350-72-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 41R-83350-71-00
$175.95
You save $20.04
-10%
No longer availableSearch Nationwide Inventory
$95.39
You save $10.60
-10%
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
23
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-08100-00
$8.54
You save $0.95
-10%
24
Yamaha Motors
FUEL METER SENDER ASSEMBLY1AE-85752-00-00
Required: 1
SENDER UNIT ASSY, FUEL METER
No longer availableSearch Nationwide Inventory
$92.69
You save $10.30
-10%
25
Yamaha Motors
SENDER UNIT GASKET2H7-85753-00-00
Required: 1
GASKET, SENDER UNIT
$29.69
You save $3.30
-20%
26
Yamaha Motors
Plate Washer90202-05187-00
Required: 4
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
No longer availableSearch Nationwide Inventory
$0.67
-10%
28
Yamaha Motors
4KM-85130-00-003G1-85130-01-00
Required: 1
REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
$0.85
You save $0.09
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
