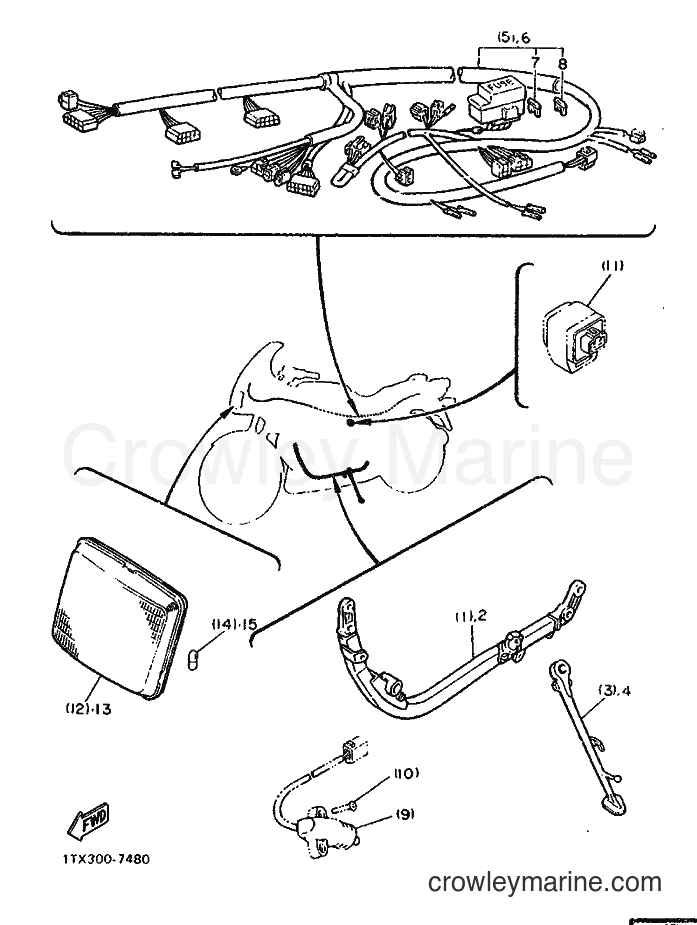

1987 Sport Bike FJ1200 - FJ1200 (1TX) [999] ALTERNATE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FJ1200 (1TX) [999] - ALTERNATE
Change View:
DOWN TUBE COMP.
1
Yamaha Motors
DOWN TUBE COMP.1TX-21140-10-35
Required: 1
DOWN TUBE COMP.
Price unavailable
DOWN TUBE COMP.
2
Yamaha Motors
DOWN TUBE COMP.1TX-21140-00-35
Required: 1
DOWN TUBE COMP.
Price unavailable
STAND, SIDE
4
Yamaha Motors
STAND, SIDE36Y-27311-00-35
Required: 1
STAND, SIDE
Price unavailable
WIRE HARNESS ASSY
5
Yamaha Motors
WIRE HARNESS ASSY1TX-82590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
6
Yamaha Motors
WIRE HARNESS ASSY1WH-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
FUSE (15 AMP)
7
Yamaha Motors
FUSE (15 AMP)36Y-82151-00-00
Required: 4
. FUSE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Fuse (30A-Bl)
8
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
SIDE STAND SWITCH
9
Yamaha Motors
SIDE STAND SWITCH33E-82566-00-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$150.99
$135.89
You save $15.10
More details
-10%
Flat Screw
10
Yamaha Motors
Flat Screw98707-05016-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98706-05016-00
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details
-10%
RELAY ASSY
11
Yamaha Motors
RELAY ASSY4U8-81950-03-00
Required: 1
RELAY ASSY
Supersedes: 4U8-81950-01-00
Cross Ship
Leaves in 2-5 days
$101.99
$91.79
You save $10.20
More details
LENS ASSY
12
Yamaha Motors
LENS ASSY36Y-84321-E0
Required: 1
LENS ASSY
Price unavailable
LENS ASSY
13
Yamaha Motors
LENS ASSY47E-84321-G0
Required: 1
LENS ASSY
Price unavailable
BULB (12V-3.4W)
14
Yamaha Motors
BULB (12V-3.4W)*
Required: 1
BULB (12V-3.4W)
Price unavailable
BULB (12V-4W)
15
Yamaha Motors
BULB (12V-4W)*
Required: 1
BULB (12V-4W)
Price unavailable
BULB
15
Yamaha Motors
BULB4E2-84347-00
Required: 1
BULB
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
