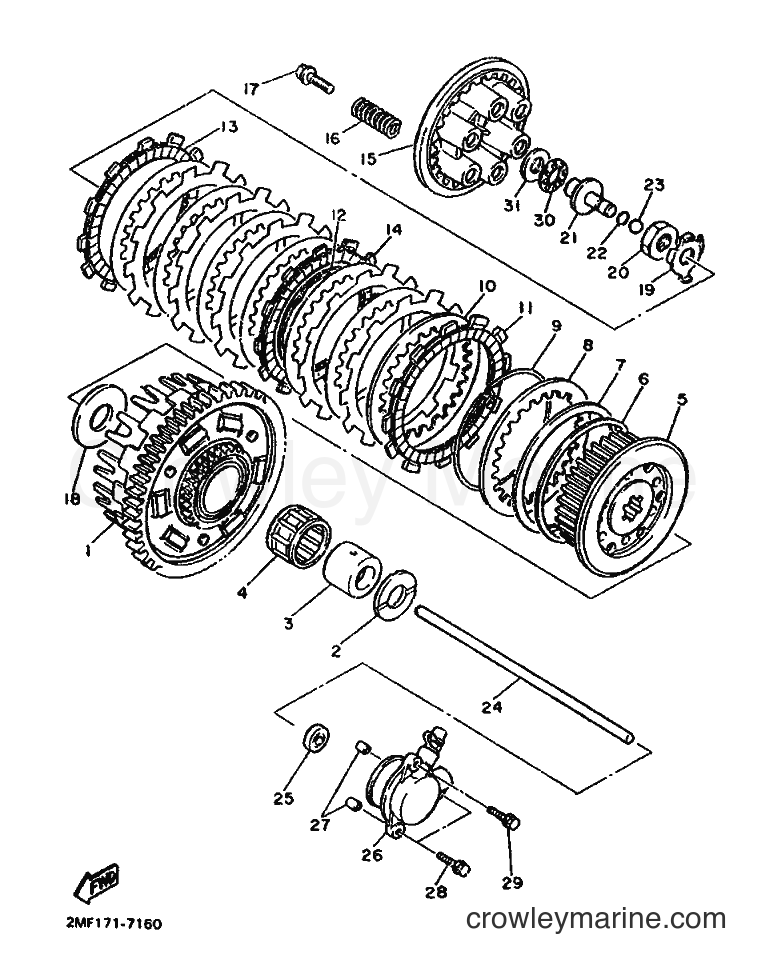

1987 Sport Bike FZ750 T - FZ750 T (2MG) [99A] CLUTCH diagram
![Yamaha Motors FZ750 T (2MG) [99A] - CLUTCH](https://cdn.crowleymarine.com/yamaha/iKVdVO8v.png)
-10%
1
Yamaha Motors
Primary Driven Gear1TV-16150-01-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
No longer availableSearch Nationwide Inventory
$457.19
You save $50.80
-10%
2
Yamaha Motors
Thrust Plate1AE-16154-00-00
Required: 1
PLATE, THRUST 1
No longer availableSearch Nationwide Inventory
$43.19
You save $4.80
-10%
3
Yamaha Motors
COLLAR90387-25024-00
Required: 1
SPACER
Supersedes: 90560-25270-00
$35.09
You save $3.90
-10%
$45.89
You save $5.10
-10%
5
Yamaha Motors
Clutch Boss1AE-16371-02-00
Required: 1
BOSS, CLUTCH
Supersedes: 1AE-16371-00-00
No longer availableSearch Nationwide Inventory
$115.19
You save $12.80
-10%
$13.94
You save $1.55
-10%
7
Yamaha Motors
Clutch Boss Spring5G2-16383-00-00
Required: 1
SPRING, CLUTCH BOSS
$45.89
You save $5.10
-10%
8
Yamaha Motors
PLATE, CLUTCH 1168-16324-10-00
Required: 1
PLATE, CLUTCH 1
Supersedes: 168-16324-00-00
$21.59
You save $2.40
-10%
9
Yamaha Motors
Clutch Boss Ring1J7-16385-00-00
Required: 1
RING, CLUTCH BOSS
$10.79
You save $1.20
-10%
10
Yamaha Motors
PLATE, CLUTCH 231A-16325-10-00
Required: 7
PLATE, CLUTCH 2
Supersedes: 31A-16325-00-00
$10.34
You save $1.15
-10%
11
Yamaha Motors
4H7-16321-02-004H7-16321-01-00
Required: 6
PLATE, FRICTION
Supersedes: 4H7-16321-00-00
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-10%
12
Yamaha Motors
Clutch Boss Spring5Y1-16383-00-00
Required: 1
SPRING, CLUTCH BOSS
$32.39
You save $3.60
-10%
13
Yamaha Motors
4H7-16321-02-0031A-16321-01-00
Required: 1
PLATE, FRICTION
Supersedes: 31A-16321-00-00
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-10%
14
Yamaha Motors
Friction Plate5Y1-16331-01-00
Required: 1
PLATE, FRICTION 2
$29.69
You save $3.30
-10%
15
Yamaha Motors
PRESSURE PLATE 158L-16351-00-00
Required: 1
PLATE, PRESSURE 1
$44.99
You save $5.00
-10%
16
Yamaha Motors
Compression Spring90501-225A9-00
Required: 6
SPRING, COMPRESSION
$8.54
You save $0.95
-10%
17
Yamaha Motors
Screw With Washer90159-06123-00
Required: 6
SCREW, WITH WASHER
$9.44
You save $1.05
-10%
18
Yamaha Motors
Thrust Plate1AE-16164-00-00
Required: 1
PLATE, THRUST 2
$16.19
You save $1.80
-50%
In stock
Only 3 remaining
$1.83
You save $1.83
-10%
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-15%
In stock
5+ in stock
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-10%
25
Yamaha Motors
SDO TYPE OIL SEAL93109-08061-00
Required: 1
SEAL, PUSH ROD
Supersedes: 371-15389-00-00
$7.64
You save $0.85
-10%
26
Yamaha Motors
1TV-16381-11-001TV-16381-10-00
Required: 1
PUSH LEVER COMP.
Supersedes: 1TV-16381-00-00
No longer availableSearch Nationwide Inventory
$134.99
You save $15.00
-10%
27
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
PIN, DOWEL
Supersedes: 91810-18013-00
$4.09
You save $0.46
-10%
28
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06030-00
$3.87
You save $0.43
-10%
29
Yamaha Motors
Small Bolt Flange95027-06090-00
Required: 1
BOLT, FLANGE
Supersedes: 95026-06090-00
$2.52
You save $0.28
-10%
$18.89
You save $2.10
-10%
31
Yamaha Motors
Plain Washer90201-150U6-00
Required: 1
WASHER, PLATE
Supersedes: 90201-150H2-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
