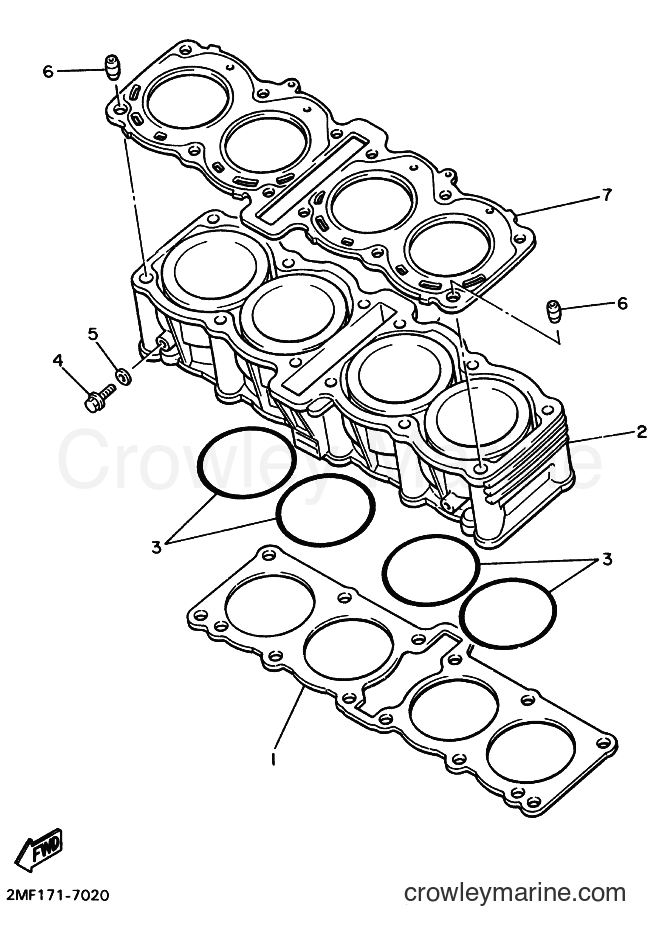

1987 Sport Bike FZ750 T - FZ750 T (2MG) [99A] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZ750 T (2MG) [99A] - CYLINDER
Change View:
-10%
CYLINDER GASKET
1
Yamaha Motors
CYLINDER GASKET4AM-11351-00-00
Required: 1
GASKET, CYLINDER
Supersedes: 1AA-11351-00-00
Cross Ship
Leaves in 2-5 days
$31.99
$28.79
You save $3.20
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-73693-00
Required: 4
O-RING
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Gasket
5
Yamaha Motors
Gasket90430-06014-00
Required: 2
GASKET
Cross Ship
Leaves in 2-5 days
$8.99
$8.09
You save $0.90
More details
-10%
Dowel Pin
6
Yamaha Motors
Dowel Pin93612-16254-00
Required: 2
PIN, DOWEL
Supersedes: 91810-08016-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
CYLINDER HEAD GASKET
7
Yamaha Motors
CYLINDER HEAD GASKET2KT-11181-01-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 2KT-11181-00-00
Cross Ship
Leaves in 2-5 days
$111.99
$100.79
You save $11.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
