1987 Sport Bike FZR1000 - FZR1000 (2LA) [999] ALTERNATE FOR CHASSIS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

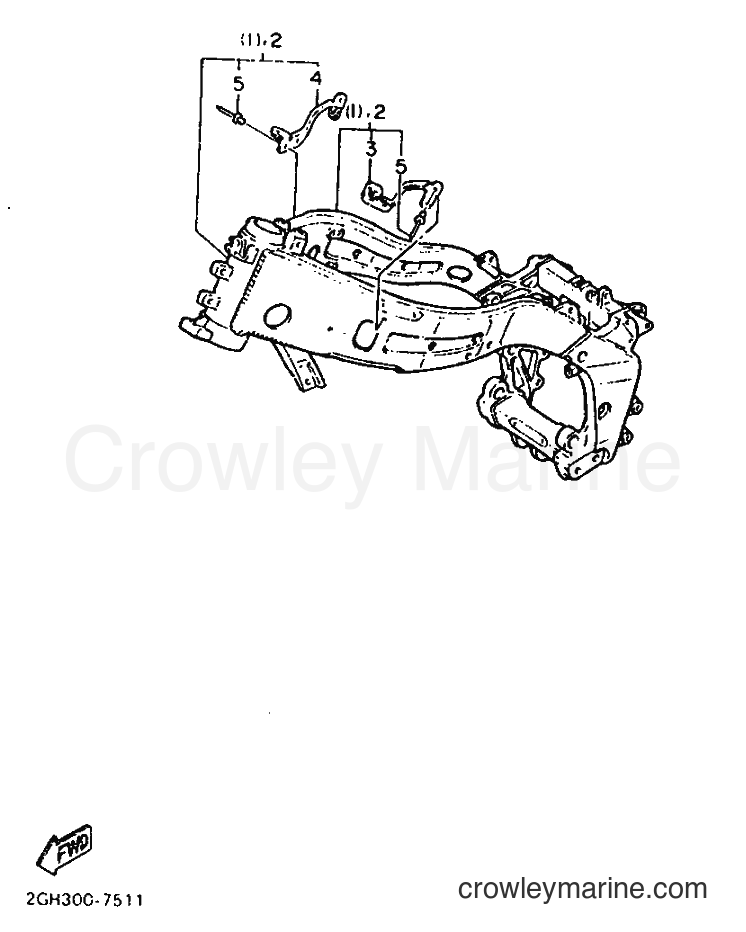

Yamaha Motors FZR1000 (2LA) [999] - ALTERNATE FOR CHASSIS

Change View:

Yamaha Motors

FRAME COMP.2GH-21110-03

Required: 1

FRAME COMP.

Price unavailable

-10%

Yamaha Motors

FRAME COMP.(2YJ)99999-01934-00

Required: 1

FRAME COMP.

Supersedes: 2LJ-21110-03-00

No longer availableSearch Nationwide Inventory

~~$2039.99~~

$1835.99

You save $204.00

More details

-10%

Yamaha Motors

Bracket, 122GH-2833J-00-00

Required: 1

. BRACKET 12

No longer availableSearch Nationwide Inventory

~~$27.99~~

$25.19

You save $2.80

More details

-10%

Yamaha Motors

Bracket2GH-2833K-00-00

Required: 1

. BRACKET 13

No longer availableSearch Nationwide Inventory

~~$13.49~~

$12.14

You save $1.35

More details

-10%

Yamaha Motors

BLIND RIVET90267-40105-00

Required: 6

. RIVET, BLIND

Supersedes: 90267-40087-00

~~$1.90~~

$1.71

You save $0.19

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
