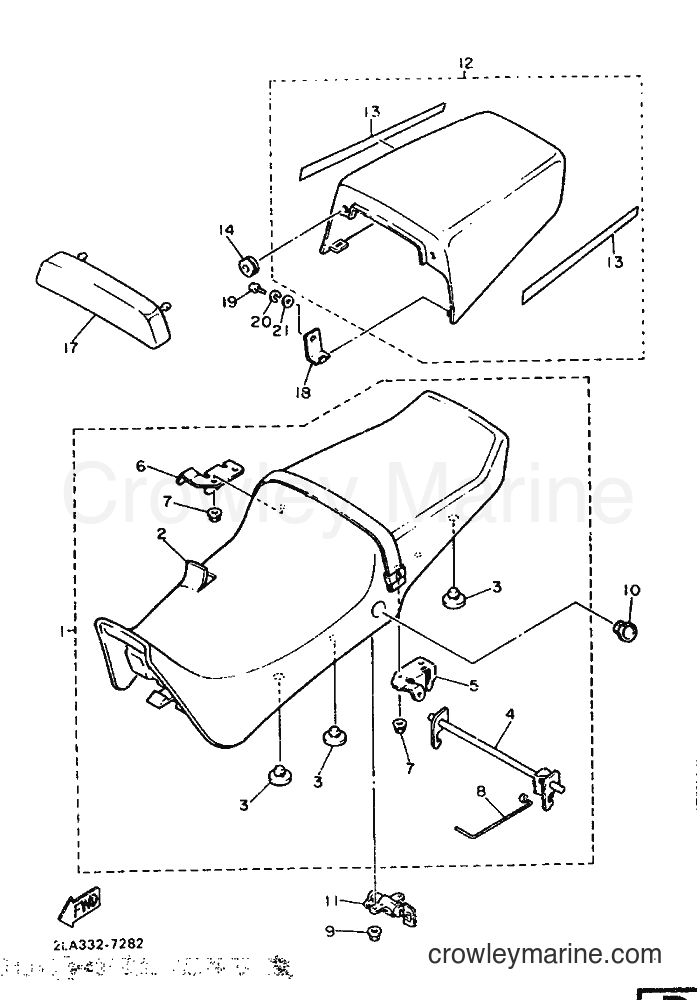

1987 Sport Bike FZR1000 - FZR1000 (2GH) [999] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR1000 (2GH) [999] - SEAT
Change View:
-10%
Seat Pad
3
Yamaha Motors
Seat Pad2GH-24741-01-00
Required: 6
. PAD, SEAT
Supersedes: 2GH-24741-00-00
Cross Ship
Leaves in 2-5 days
$3.30
$2.97
You save $0.33
More details
-10%
OIL OUTLET COVER
10
Yamaha Motors
OIL OUTLET COVER47X-24796-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COVER, SEAT BACK
12
Yamaha Motors
COVER, SEAT BACK2GH-24791-00-JW
Required: 1
COVER, SEAT BACK
Price unavailable
COVER, SEAT BACK
12
Yamaha Motors
COVER, SEAT BACK2GH-24791-00-V4
Required: 1
COVER, SEAT BACK
Price unavailable
COVER, SEAT
12
Yamaha Motors
COVER, SEAT2GH-Y2479-00-0X
Required: 1
COVER, SEAT
Price unavailable
GROMMET
14
Yamaha Motors
GROMMET29L-24742-50
Required: 2
GROMMET
Price unavailable
-10%
Pan Head Screw
19
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
