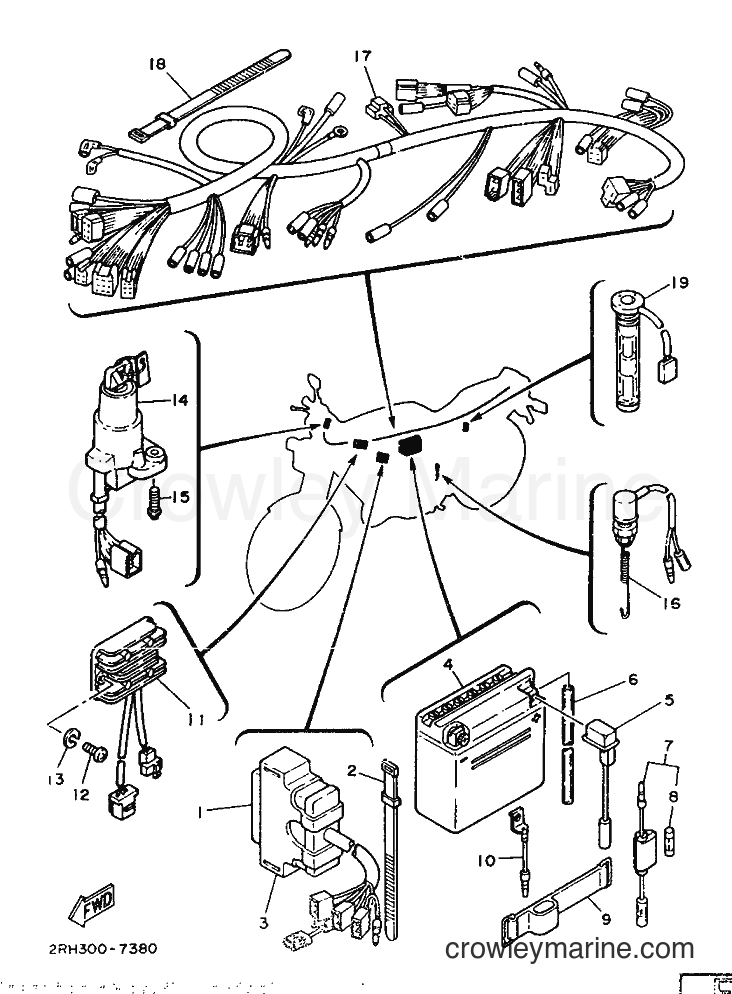

1987 Sport Bike TZR125 - TZR125 (2RK) [999] ELECTRICAL 1 diagram
![Yamaha Motors TZR125 (2RK) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/PUu9JKaC.png)
1
Yamaha Motors
C.D.I. UNIT ASSY2RH-85540-M0
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
2
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
3
Yamaha Motors
BAND1GU-85546-00
Required: 1
BAND
Price unavailable
-10%
4
Yamaha Motors
12N53B YUASA BATTER12N-53BY0-00-00
Required: 1
BATTERY ASSY
Supersedes: 235-82110-79-00
No longer availableSearch Nationwide Inventory
$34.64
You save $3.85
-10%
5
Yamaha Motors
Plus Lead Wire1M1-82115-00-00
Required: 1
WIRE, PLUS LEAD
$28.79
You save $3.20
-10%
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
7
Yamaha Motors
Fuse Holder Assembly2UJ-82150-01-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 164-82150-00-00
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
8
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
. FUSE
Supersedes: 148-82151-00-00
$7.64
You save $0.85
9
Yamaha Motors
BAND, BATTERY22J-82131-00
Required: 1
BAND, BATTERY
Price unavailable
-10%
10
Yamaha Motors
MINUS LEAD WIRE2J2-82116-00-00
Required: 1
WIRE, MINUS LEAD
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
11
Yamaha Motors
Rectifier/Regulator Assembly5H0-81960-A0-00
Required: 1
RECTIFIER & REGULATOR ASSY
No longer availableSearch Nationwide Inventory
$129.59
You save $14.40
-15%
12
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-15%
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
14
Yamaha Motors
MAIN SWITCH STEERING LOCK2RH-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
15
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-06614-00
$4.94
You save $0.55
-10%
16
Yamaha Motors
STOP SWITCH ASSEMBLY34L-82530-02-00
Required: 1
STOP SWITCH ASSY
Supersedes: 34L-82530-00-00
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
17
Yamaha Motors
WIRE HARNESS ASSY2RH-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
18
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 3
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
19
Yamaha Motors
OIL LEVEL GAUGE ASSEMBLY2E7-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
No longer availableSearch Nationwide Inventory
$65.69
You save $7.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
