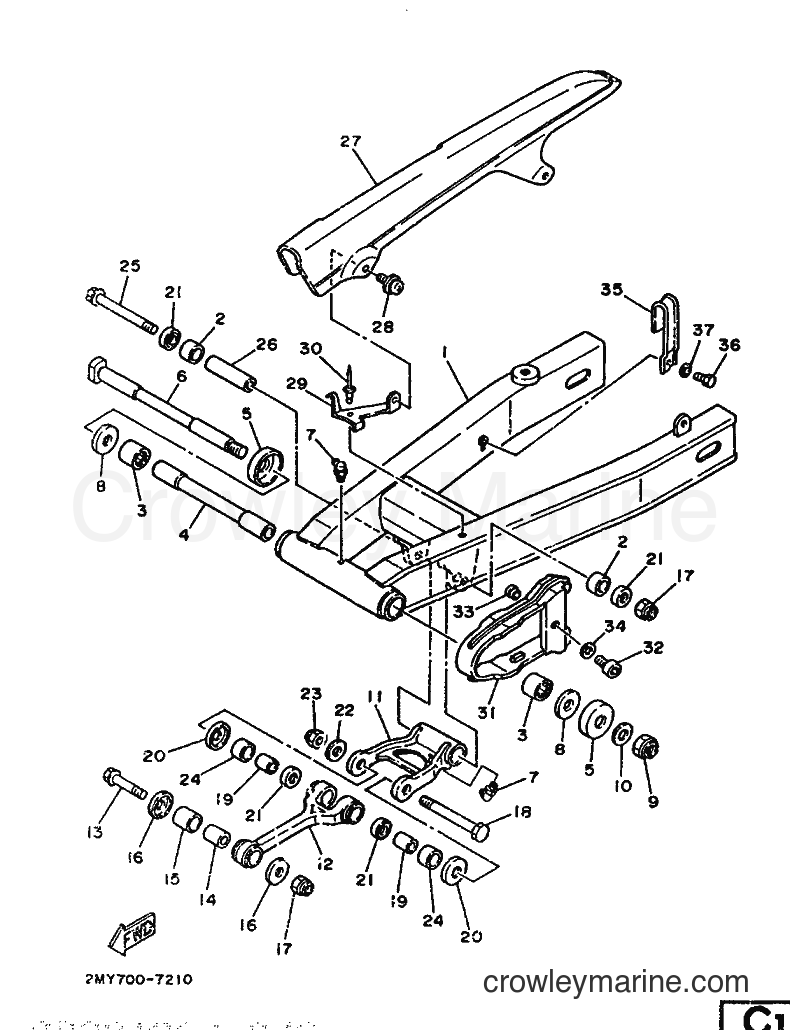

1987 Sport Bike TZR250 - TZR250 (2MA) [99A] REAR ARM diagram
![Yamaha Motors TZR250 (2MA) [99A] - REAR ARM](https://cdn.crowleymarine.com/yamaha/M2jyrsmA.png)
1
Yamaha Motors
REAR ARM COMP.1KT-22110-01
Required: 1
REAR ARM COMP.
Price unavailable
2
Yamaha Motors
BEARING93315-31843
Required: 2
BEARING
Price unavailable
-10%
$45.89
You save $5.10
-10%
No longer availableSearch Nationwide Inventory
$89.09
You save $9.90
-10%
5
Yamaha Motors
THRUST COVER47X-22129-00-00
Required: 2
COVER, THRUST 2
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$53.09
You save $5.90
-10%
7
Yamaha Motors
Grease Nipple93700-06005-00
Required: 2
NIPPLE, GREASE
$12.14
You save $1.35
-10%
8
Yamaha Motors
Plate Washer90201-161J2-00
Required: 2
WASHER, PLATE
$3.19
You save $0.35
-10%
9
Yamaha Motors
Self-Locking Nut90185-14112-00
Required: 1
NUT, SELF-LOCKING
$11.24
You save $1.25
-10%
10
Yamaha Motors
Plate Washer90201-140H8-00
Required: 1
WASHER, PLATE
$5.84
You save $0.65
11
Yamaha Motors
ARM 11KT-2217M-01
Required: 1
ARM 1
Price unavailable
12
Yamaha Motors
ARM, RELAY1KT-2217A-00
Required: 1
ARM, RELAY
Price unavailable
-10%
13
Yamaha Motors
Washer Based Bolt90105-10402-00
Required: 1
BOLT, WASHER BASED
$9.44
You save $1.05
14
Yamaha Motors
COLLAR90387-103N9
Required: 1
COLLAR
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
16
Yamaha Motors
COVER, THRUST 11KT-22128-00
Required: 2
COVER, THRUST 1
Price unavailable
-10%
17
Yamaha Motors
Self-Locking Nut90185-10170-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95601-10200-00
$9.44
You save $1.05
18
Yamaha Motors
BOLT90101-12645
Required: 1
BOLT
Price unavailable
19
Yamaha Motors
COLLAR90387-123N6
Required: 2
COLLAR
Price unavailable
-10%
20
Yamaha Motors
THRUST COVER55K-22129-00-00
Required: 2
COVER, THRUST 2
Supersedes: 23X-22129-00-00
$22.49
You save $2.50
-10%
$13.04
You save $1.45
-10%
22
Yamaha Motors
Plate Washer90201-126A7-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
23
Yamaha Motors
Self-Locking Nut90185-12119-00
Required: 1
NUT, SELF-LOCKING
$11.24
You save $1.25
24
Yamaha Motors
BUSH90386-18149
Required: 2
BUSH
Price unavailable
-10%
25
Yamaha Motors
Washer Based Bolt90105-10409-00
Required: 1
BOLT, WASHER BASED
$10.34
You save $1.15
26
Yamaha Motors
COLLAR90387-103N4
Required: 1
COLLAR
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
28
Yamaha Motors
Screw with Washer90159-06082-00
Required: 2
SCREW, WITH WASHER
Supersedes: 90159-06084-00
$9.44
You save $1.05
29
Yamaha Motors
STAY, CHAIN CASE 11KT-22321-00
Required: 1
STAY, CHAIN CASE 1
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
31
Yamaha Motors
PROTECTOR, CHAIN1KT-22147-00
Required: 1
PROTECTOR, CHAIN
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
$9.44
You save $1.05
-10%
34
Yamaha Motors
Plate Washer90201-065G8-00
Required: 1
WASHER, PLATE
$8.54
You save $0.95
35
Yamaha Motors
HOLDER, BRAKE HOSE 11KT-25875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
37
Yamaha Motors
Wave Washer92907-06700-00
Required: 1
WASHER
Supersedes: 92906-06700-00
$1.80
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
