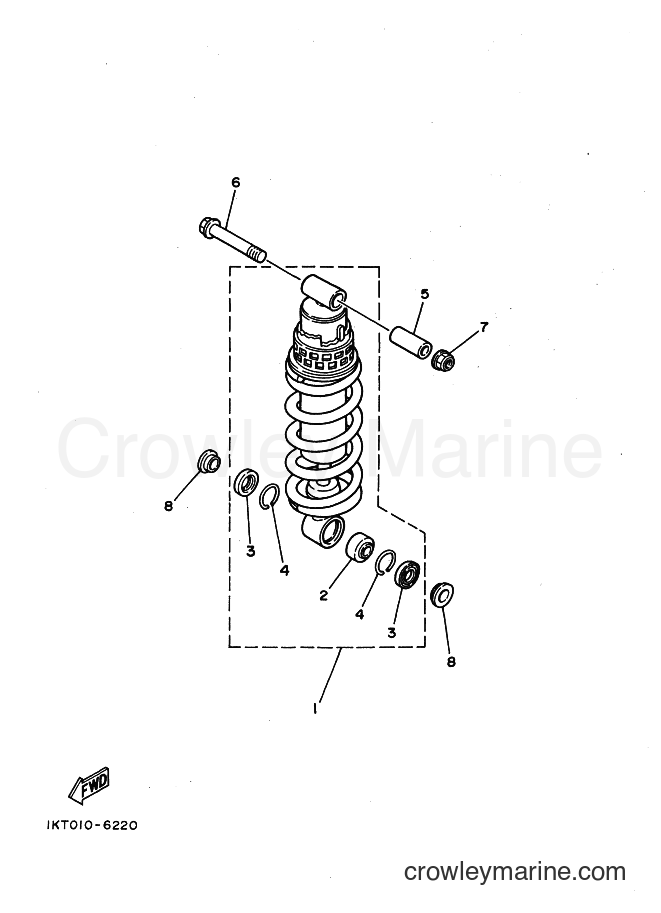

1987 Sport Bike TZR250 - TZR250 (2MA) [99A] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR250 (2MA) [99A] - REAR SUSPENSION
Change View:
SHOCK ABSORBER ASSY, REAR
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR2MY-22210-00
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
-10%
Special Bearing
2
Yamaha Motors
Special Bearing93399-99919-00
Required: 1
. BEARING
Cross Ship
Leaves in 2-5 days
$66.99
$60.29
You save $6.70
More details
-10%
S-TYPE OIL SEAL
3
Yamaha Motors
S-TYPE OIL SEAL93101-16131-00
Required: 2
. OIL SEAL
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Circlip (Outer)
4
Yamaha Motors
Circlip (Outer)93440-30113-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
COLLAR
5
Yamaha Motors
COLLAR90387-103N5
Required: 1
COLLAR
Price unavailable
-10%
Self-Locking Nut
7
Yamaha Motors
Self-Locking Nut90185-10170-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 95601-10200-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
