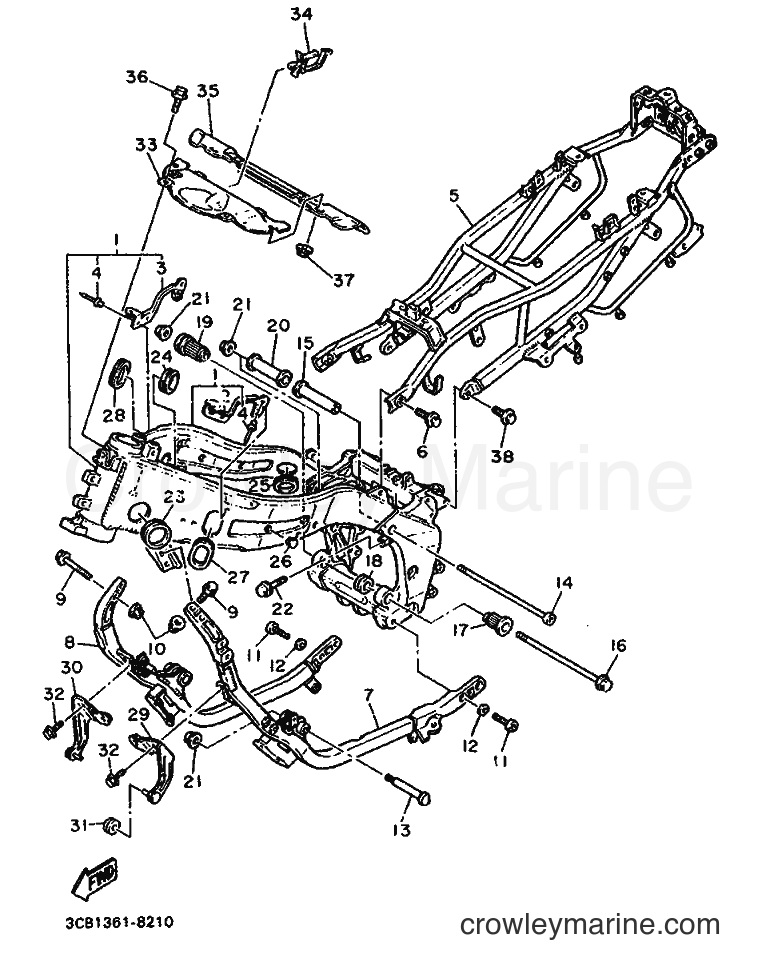

1988 Sport Bike FZR1000 - FZR1000 (3CB1) [999] FRAME diagram
![Yamaha Motors FZR1000 (3CB1) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/RSxSkuzE.png)
1
Yamaha Motors
FRAME COMP.2LJ-21110-13
Required: 1
FRAME COMP.
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
3
Yamaha Motors
Bracket2GH-2833K-00-00
Required: 1
. BRACKET 13
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
4
Yamaha Motors
BLIND RIVET90267-40105-00
Required: 6
. RIVET, BLIND
Supersedes: 90267-40087-00
$1.71
You save $0.19
-10%
5
Yamaha Motors
Rear Frame2GH-21190-00-35
Required: 1
. REAR FRAME COMP.
No longer availableSearch Nationwide Inventory
$764.09
You save $84.90
-10%
6
Yamaha Motors
Washer Based Bolt90105-10459-00
Required: 2
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$3.11
You save $0.34
-10%
7
Yamaha Motors
TUBE,DOWN2LJ-21140-00-35
Required: 1
DOWN TUBE COMP.
No longer availableSearch Nationwide Inventory
$160.19
You save $17.80
-10%
8
Yamaha Motors
DOWN TUBE COMP. 22LJ-21150-00-35
Required: 1
DOWN TUBE COMP.2
No longer availableSearch Nationwide Inventory
$152.99
You save $17.00
-10%
9
Yamaha Motors
Washer Based Bolt90105-10169-00
Required: 4
BOLT, WASHER BASED
Supersedes: 90105-10496-00
$11.24
You save $1.25
-10%
10
Yamaha Motors
Self-Locking Nut90185-10170-00
Required: 4
NUT, SELF-LOCKING
Supersedes: 95601-10200-00
$9.44
You save $1.05
-10%
11
Yamaha Motors
91317-08025-0090110-08193-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-08150-00
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-50%
12
Yamaha Motors
Plate Washer90201-086J0-00
Required: 4
WASHER, PLATE
In stock
Only 2 remaining
$5.25
You save $5.25
-10%
No longer availableSearch Nationwide Inventory
$4.14
You save $0.46
-10%
14
Yamaha Motors
HEX SOCKET HEAD BOLT90110-10154-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
16
Yamaha Motors
Washer Based Bolt90105-10476-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
-10%
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
19
Yamaha Motors
Engine Mount Damper2GH-15316-00-00
Required: 1
DAMPER, ENGINE MOUNT 1
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
$9.44
You save $1.05
-10%
22
Yamaha Motors
Washer Based Bolt90105-08475-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
-10%
23
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-35526-00
Required: 2
GROMMET
Supersedes: 90480-35394-00
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$2.93
You save $0.32
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$3.21
You save $0.36
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
29
Yamaha Motors
BRACKET, COOLER 12GH-2136A-00-00
Required: 1
BRACKET, COOLER 1
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
-10%
30
Yamaha Motors
BRACKET, COOLER 22GH-2136E-00-00
Required: 1
BRACKET, COOLER 2
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
31
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13428-00
Required: 2
GROMMET
Supersedes: 90480-13383-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$0.99
You save $0.11
-10%
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
-10%
36
Yamaha Motors
Bolt With Washer90119-06063-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06061-00
$9.44
You save $1.05
-10%
37
Yamaha Motors
NUT, W/WASHER95707-06600-00
Required: 2
NUT, WITH WASHER
Supersedes: 95702-06600-00
$7.64
You save $0.85
-10%
38
Yamaha Motors
Washer Based Bolt90105-10634-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-10499-00
$10.34
You save $1.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
