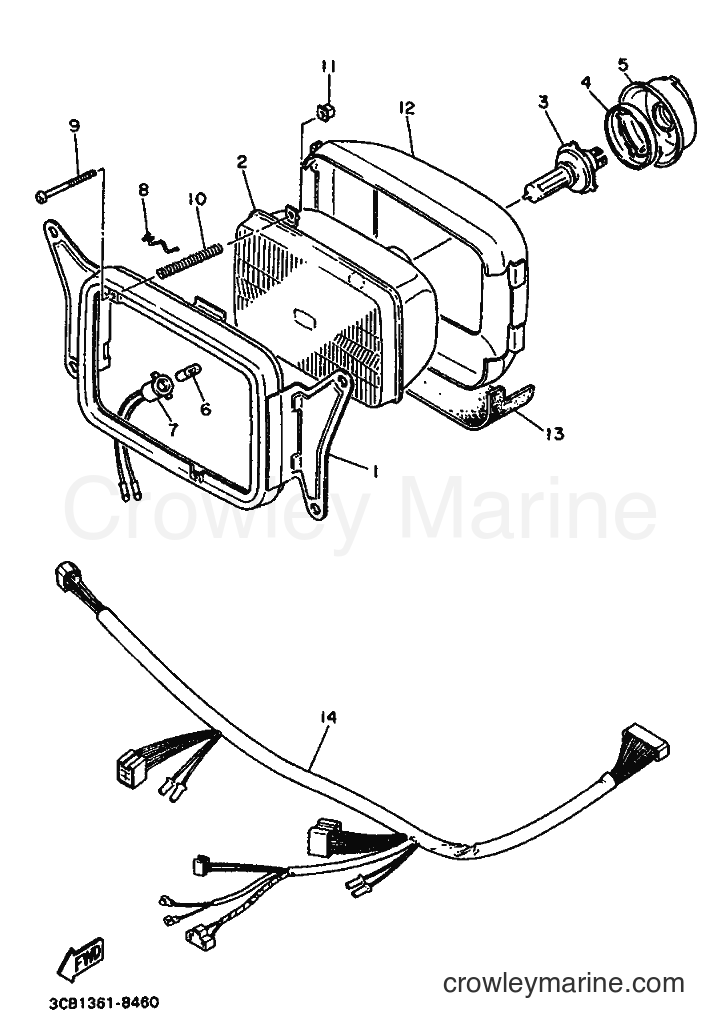

1988 Sport Bike FZR1000 - FZR1000 (3CB1) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR1000 (3CB1) [999] - HEADLIGHT
Change View:
RIM, HEADLIGHT
1
Yamaha Motors
RIM, HEADLIGHT2LF-84315-00
Required: 1
RIM, HEADLIGHT
Price unavailable
LENS ASSY
2
Yamaha Motors
LENS ASSY11U-84321-G0
Required: 1
LENS ASSY
Price unavailable
BULB (12V-60/55W)
3
Yamaha Motors
BULB (12V-60/55W)*
Required: 1
BULB (12V-60/55W)
Price unavailable
-10%
BULB FITTING PLATE
4
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
5
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
BULB (12V-4W)
6
Yamaha Motors
BULB (12V-4W)*
Required: 1
BULB (12V-4W)
Price unavailable
HOLDER, SOCKET
7
Yamaha Motors
HOLDER, SOCKET2LF-84312-00
Required: 1
HOLDER, SOCKET
Price unavailable
-10%
SPRING SET
8
Yamaha Motors
SPRING SET14T-84124-00-00
Required: 1
SPRING, SET
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
RIM ADJUSTER SCREW
9
Yamaha Motors
RIM ADJUSTER SCREW43F-84131-00-00
Required: 2
SCREW, RIM ADJUSTER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Screw Spring
10
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
SPRING, SCREW
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Adjusting Nut
11
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COVER
12
Yamaha Motors
COVER2LF-84396-00
Required: 1
COVER
Price unavailable
DAMPER, HEADLIGHT
13
Yamaha Motors
DAMPER, HEADLIGHT2LF-84345-00
Required: 1
DAMPER, HEADLIGHT
Price unavailable
CORD, HEADLIGHT
14
Yamaha Motors
CORD, HEADLIGHT2LF-84359-00
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
