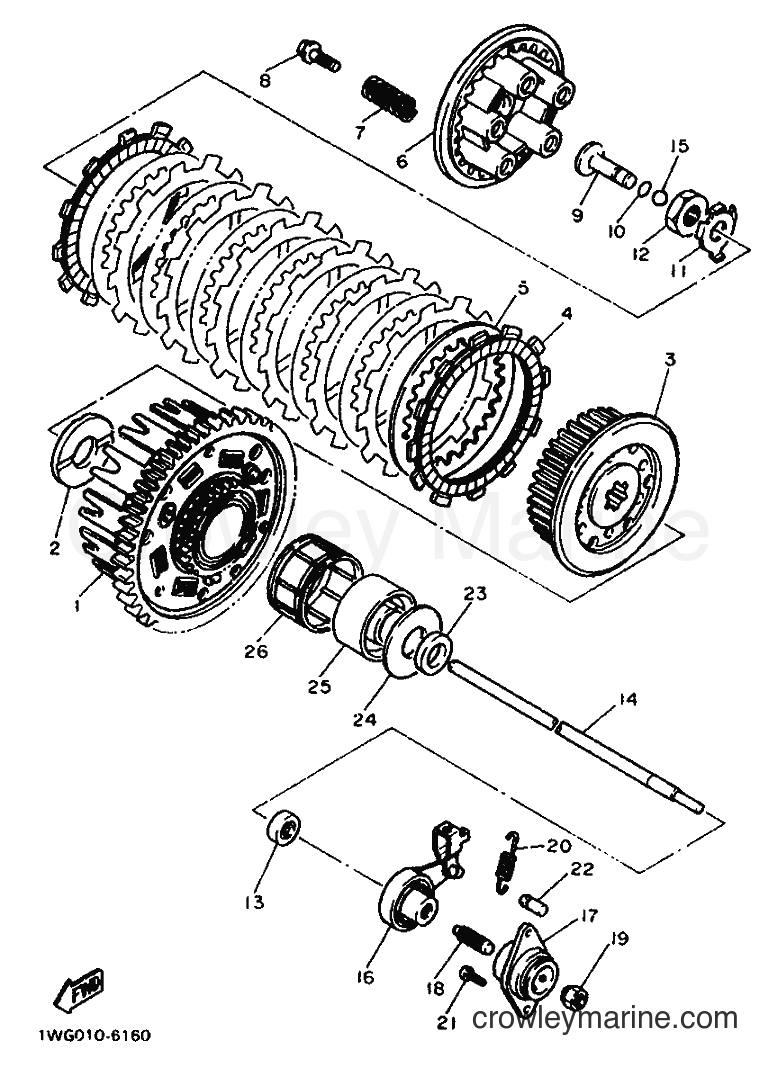

1988 Sport Bike FZR400 - FZR400 (3BF2) [010] CLUTCH diagram
![Yamaha Motors FZR400 (3BF2) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/6EUA9MgY.png)
-10%
1
Yamaha Motors
Primary Driven Gear1WG-16150-01-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
No longer availableSearch Nationwide Inventory
$325.79
You save $36.20
-10%
2
Yamaha Motors
Thrust Plate1WG-16154-00-00
Required: 1
PLATE, thrust 1
No longer availableSearch Nationwide Inventory
$33.29
You save $3.70
-10%
No longer availableSearch Nationwide Inventory
$147.59
You save $16.40
-10%
4
Yamaha Motors
Friction Plate3XP-16321-00-00
Required: 8
PLATE, friction
Supersedes: 21V-16321-00-00
$19.79
You save $2.20
-10%
5
Yamaha Motors
CLUTCH PLATE131-16324-00-00
Required: 7
PLATE, clutch 1
$13.94
You save $1.55
-10%
6
Yamaha Motors
PRESSURE PLATE 137F-16351-00-00
Required: 1
PLATE, pressure 1
$55.79
You save $6.20
-10%
7
Yamaha Motors
Compression Spring90501-227E0-00
Required: 5
SPRING, compression
$9.44
You save $1.05
-20%
8
Yamaha Motors
Bolt With Washer90119-05001-00
Required: 5
BOLT, with washer
In stock
Only 5 remaining
$2.80
You save $0.70
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-50%
In stock
5+ in stock
$4.75
You save $4.75
-10%
$14.84
You save $1.65
-10%
$14.84
You save $1.65
-50%
In stock
Only 1 remaining
$6.75
You save $6.75
-10%
14
Yamaha Motors
ROD, PUSH 21WG-16357-02-00
Required: 1
ROD, push 2
Supersedes: 1WG-16357-01-00
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-50%
In stock
Only 3 remaining
$1.45
You save $1.45
-10%
16
Yamaha Motors
PUSH LEVER ASSEMBLY1WG-16340-01-00
Required: 1
PUSH LEVER ASSY
No longer availableSearch Nationwide Inventory
$67.49
You save $7.50
-50%
17
Yamaha Motors
BALL SCREW HOUSING ASSEMBLY1WG-16304-00-00
Required: 1
BALL SCREW HOUSING ASSY
In stock
Only 1 remaining
$72.00
You save $72.00
-10%
$10.34
You save $1.15
-10%
$7.64
You save $0.85
-50%
20
Yamaha Motors
TENSION SPRING90506-11488-00
Required: 1
SPRING, tension
Supersedes: 90506-09232-00
In stock
Only 1 remaining
$5.25
You save $5.25
-50%
21
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, pan head
Supersedes: 90157-05065-00
In stock
Only 4 remaining
$2.30
You save $2.30
-10%
$9.89
You save $1.10
-10%
$18.89
You save $2.10
-10%
24
Yamaha Motors
Thrust Plate1WG-16164-00-00
Required: 1
PLATE, thrust 2
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
26
Yamaha Motors
BEARING,CYL.#1093310-345R8-00
Required: 1
BEARING, cylindrical
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
