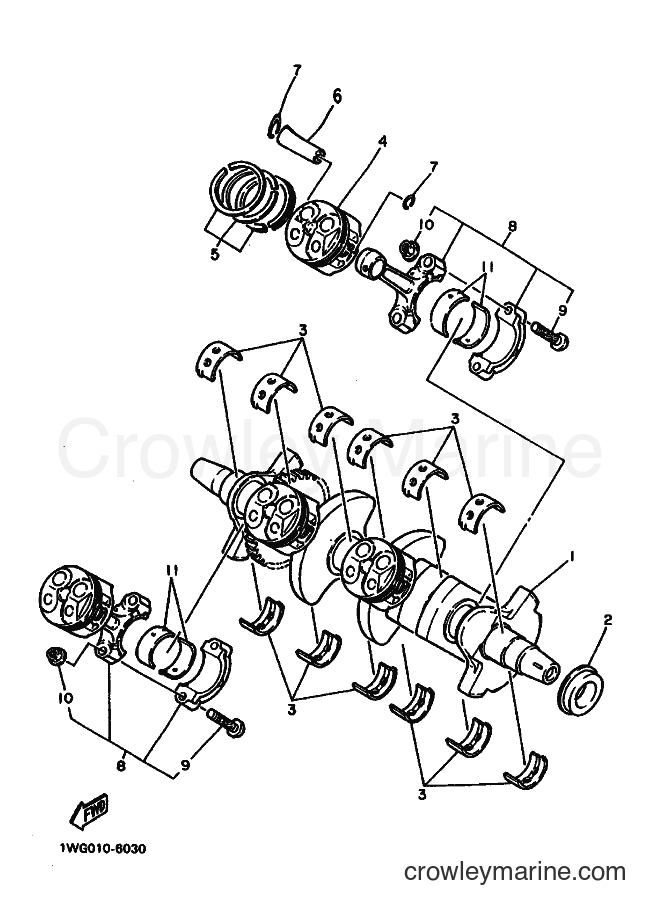

1988 Sport Bike FZR400 - FZR400 (3BF2) [010] CRANKSHAF & PISTON diagram
![Yamaha Motors FZR400 (3BF2) [010] - CRANKSHAF & PISTON](https://cdn.crowleymarine.com/yamaha/Dh823TE5.png)
-10%
1
Yamaha Motors
Crankshaft 39 - see block comment 4099999-01963-00
Required: 1
CRANKSHAFT
Supersedes: 1WG-11411-00-00
No longer availableSearch Nationwide Inventory
$750.59
You save $83.40
-10%
2
Yamaha Motors
93101-26156-0093101-26154-00
Required: 1
OIL SEAL
Supersedes: 93101-26141-00
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
3
Yamaha Motors
Crankshaft Plane Bearing4TV-11416-20-00
Required: 12
PLANE BEARING, crankshaft 1
Supersedes: 1WG-11416-20-00
$17.09
You save $1.90
-10%
3
Yamaha Motors
Crankshaft Plane Bearing4TV-11416-00-00
Required: 12
PLANE BEARING, crankshaft 1
Supersedes: 1WG-11416-00-00
$10.34
You save $1.15
-10%
3
Yamaha Motors
Crankshaft Plane Bearing4TV-11416-10-00
Required: 12
PLANE BEARING, crankshaft 1
Supersedes: 1WG-11416-10-00
$17.09
You save $1.90
-10%
3
Yamaha Motors
Crankshaft Plane Bearing4TV-11416-40-00
Required: 12
PLANE BEARING, crankshaft 1
Supersedes: 1WG-11416-40-00
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
3
Yamaha Motors
Crankshaft Plane Bearing4TV-11416-30-00
Required: 12
PLANE BEARING, crankshaft 1
Supersedes: 1WG-11416-30-00
$17.09
You save $1.90
-10%
4
Yamaha Motors
PISTON 4 O/S 1.001WG-11638-01-00
Required: 4
PISTON (1.00MM O/S)
No longer availableSearch Nationwide Inventory
$70.19
You save $7.80
-10%
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
-10%
4
Yamaha Motors
Piston1WG-11636-01-00
Required: 4
PISTON (0.50MM O/S)
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
-10%
5
Yamaha Motors
Piston Ring Set1WG-11610-40-00
Required: 4
PISTON RING SET (4TH O/S)
No longer availableSearch Nationwide Inventory
$46.79
You save $5.20
-10%
5
Yamaha Motors
Piston Ring Set1WG-11610-20-00
Required: 4
PISTON RING SET (2ND O/S)
No longer availableSearch Nationwide Inventory
$43.19
You save $4.80
-10%
5
Yamaha Motors
Piston Ring Set1WG-11610-00-00
Required: 4
PISTON RING SET (STD)
$62.09
You save $6.90
-10%
No longer availableSearch Nationwide Inventory
$32.39
You save $3.60
-50%
In stock
Only 3 remaining
$4.25
You save $4.25
-10%
8
Yamaha Motors
CONNECTING ROD Assembly1WG-11650-00-00
Required: 4
CONNECTING ROD ASSY
No longer availableSearch Nationwide Inventory
$212.39
You save $23.60
-10%
9
Yamaha Motors
Con Rod Bolt1WG-11654-00-00
Required: 2
.BOLT, connecting rod
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
No longer availableSearch Nationwide Inventory
$3.59
You save $0.40
-10%
11
Yamaha Motors
CONNECTER ROD PLANE BEARING1WG-11656-00-00
Required: 8
PLANE BEARING, connecting rod
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
11
Yamaha Motors
CONNECTER ROD PLANE BEARING1WG-11656-20-00
Required: 8
PLANE BEARING, connecting rod
$8.99
You save $1.00
-10%
11
Yamaha Motors
CONNECTER ROD PLANE BEARING1WG-11656-30-00
Required: 8
PLANE BEARING, connecting rod
$6.74
You save $0.75
-10%
11
Yamaha Motors
CONNECTER ROD PLANE BEARING1WG-11656-10-00
Required: 8
PLANE BEARING, connecting rod
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
