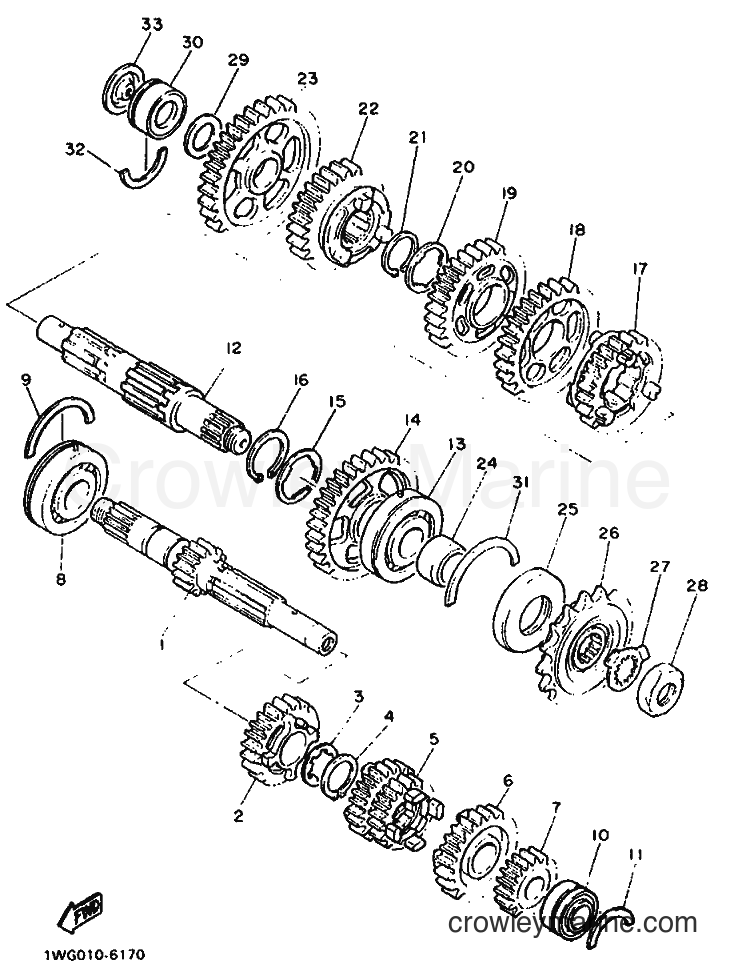

1988 Sport Bike FZR400 - FZR400 (3BF2) [010] TRANSMISSION diagram
![Yamaha Motors FZR400 (3BF2) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/AfEaiJXR.png)
-10%
1
Yamaha Motors
Main Axle1WG-17411-00-00
Required: 1
AXLE, main (13T)
No longer availableSearch Nationwide Inventory
$107.09
You save $11.90
-10%
2
Yamaha Motors
5th Pinion Gear1WG-17151-00-00
Required: 1
GEAR, 5th pinion (22T)
No longer availableSearch Nationwide Inventory
$52.19
You save $5.80
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
5
Yamaha Motors
3rd Pinion Gear3EN-17131-00-00
Required: 1
GEAR, 3rd pinion (21T/23T)
Supersedes: 1WG-17131-00-00
No longer availableSearch Nationwide Inventory
$85.49
You save $9.50
-10%
6
Yamaha Motors
6th Pinion Gear1WG-17161-00-00
Required: 1
GEAR, 6th pinion (23T)
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
7
Yamaha Motors
2nd Pinion Gear1WG-17121-01-00
Required: 1
GEAR, 2nd pinion (18T)
Supersedes: 1WG-17121-00-00
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
8
Yamaha Motors
BEARING93306-37208-00
Required: 1
BEARING (83B285C3)
Supersedes: 93306-37205-00
$44.09
You save $4.90
-10%
$5.84
You save $0.65
-10%
10
Yamaha Motors
BEARING (1WG)93399-99933-00
Required: 1
BEARING
Supersedes: 93399-99924-00
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
$8.54
You save $0.95
-10%
12
Yamaha Motors
DRIVE AXLE3HE-17421-00-00
Required: 1
AXLE, drive
Supersedes: 1WG-17421-01-00
No longer availableSearch Nationwide Inventory
$246.59
You save $27.40
-50%
In stock
Only 1 remaining
$35.00
You save $35.00
-10%
14
Yamaha Motors
2ND WHEEL GEAR1WG-17221-00-00
Required: 1
GEAR, 2nd wheel (40T)
No longer availableSearch Nationwide Inventory
$116.99
You save $13.00
-10%
$8.54
You save $0.95
-10%
$10.34
You save $1.15
-10%
17
Yamaha Motors
6th Wheel Gear1WG-17261-00-00
Required: 1
GEAR, 6th wheel (27T)
No longer availableSearch Nationwide Inventory
$59.39
You save $6.60
-10%
18
Yamaha Motors
3RD WHEEL GEAR1WG-17231-00-00
Required: 1
GEAR, 3rd wheel (36T)
No longer availableSearch Nationwide Inventory
$66.59
You save $7.40
-10%
19
Yamaha Motors
4TH WHEEL GEAR3EN-17241-00-00
Required: 1
GEAR, 4th wheel (33T)
Supersedes: 1WG-17241-00-00
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
22
Yamaha Motors
5th Wheel Gear1WG-17251-00-00
Required: 1
GEAR, 5th wheel (28T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
23
Yamaha Motors
1st Gear Wheel1WG-17211-00-00
Required: 1
GEAR, 1st wheel (43T)
No longer availableSearch Nationwide Inventory
$62.09
You save $6.90
-10%
$21.59
You save $2.40
-10%
25
Yamaha Motors
SD-TYPE OIL SEAL93102-35109-00
Required: 1
OIL SEAL (SD-35-62-6 HS)
$26.09
You save $2.90
-10%
26
Yamaha Motors
Drive Sprocket (19 teeth)3FH-17460-00-00
Required: 1
SPROCKET, drive (19T)
$37.79
You save $4.20
-10%
27
Yamaha Motors
Lock Washer90215-21290-00
Required: 1
WASHER, lock
Supersedes: 90215-21022-00
$8.54
You save $0.95
-10%
$12.14
You save $1.35
-10%
29
Yamaha Motors
Plate Washer90201-20276-00
Required: 1
WASHER, plate (1.0T)
$8.54
You save $0.95
-10%
30
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$21.59
You save $2.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
