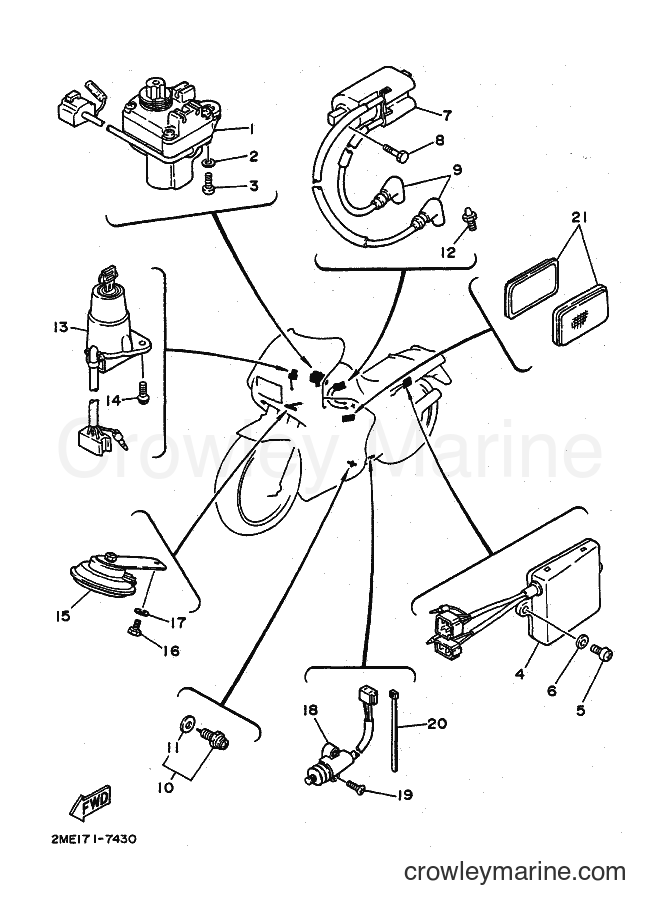

1988 Sport Bike TZR250 - TZR250 (2ME0) [010] ELECTRICAL 2 diagram
![Yamaha Motors TZR250 (2ME0) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/pa5261iR.png)
1
Yamaha Motors
SERVO MOTOR ASSY1KT-85820-01
Required: 1
SERVO MOTOR ASSY
Price unavailable
-10%
2
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, plate
Supersedes: 90201-06067-00
$0.59
You save $0.06
-10%
3
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 2
SCREW, pan head
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
4
Yamaha Motors
CONTROL UNIT ASSY1KT-85830-01
Required: 1
CONTROL UNIT ASSY
Price unavailable
-10%
5
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 2
SCREW, pan head
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
-15%
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, plate
In stock
5+ in stock
$2.51
You save $0.44
7
Yamaha Motors
IGNITION COIL ASSY1KT-82310-50
Required: 1
IGNITION COIL ASSY
Price unavailable
8
Yamaha Motors
BOLT98001-06050
Required: 2
BOLT
Price unavailable
-10%
9
Yamaha Motors
4PE-82370-10-004PE-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 1M1-82370-21-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
10
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 341-82540-01-00
$37.79
You save $4.20
-10%
11
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
.GASKET
Supersedes: 341-82543-00-00
$5.39
You save $0.60
-10%
$103.49
You save $11.50
13
Yamaha Motors
MAIN SWITCH STEERING LOCK2MY-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
$9.44
You save $1.05
15
Yamaha Motors
HORN1KT-83371-30
Required: 1
HORN
Price unavailable
-10%
16
Yamaha Motors
BOLT97026-06010-00
Required: 1
BOLT
Supersedes: 97006-06010-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-50%
17
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, spring
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
18
Yamaha Motors
Side Stand Switch3A3-82566-10-00
Required: 1
SWITCH, side stand
Supersedes: 3A3-82566-00-00
No longer availableSearch Nationwide Inventory
$82.79
You save $9.20
-10%
19
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, countersunk
Supersedes: 90152-05021-00
$7.19
You save $0.80
-10%
20
Yamaha Motors
Band1UA-82591-00-00
Required: 1
BAND
Supersedes: 12R-82591-00-00
$4.94
You save $0.55
-10%
21
Yamaha Motors
FRONT REFLECTOR ASSEMBLY2ME-85110-00-00
Required: 2
FRONT REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
