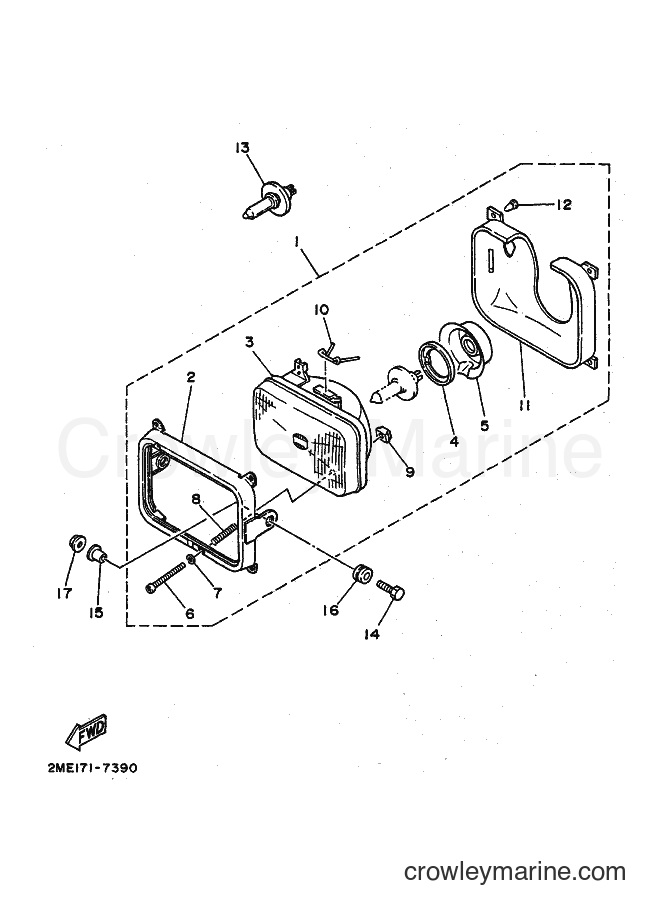

1988 Sport Bike TZR250 - TZR250 (2ME0) [010] HEADLIGHT diagram
![Yamaha Motors TZR250 (2ME0) [010] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/SFaZTrbi.png)
1
Yamaha Motors
HEADLIGHT UNIT ASSY2ME-84303-A0
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Yamaha Motors
.RIM, headlight2MA-84115-00
Required: 1
.RIM, headlight
Price unavailable
-10%
3
Yamaha Motors
HEADLIGHT LENS5G2-84321-A0-00
Required: 1
.LENS, headlight
No longer availableSearch Nationwide Inventory
$135.89
You save $15.10
-10%
4
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
.FITTING PLATE, bulb
$13.49
You save $1.50
-10%
5
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
.COVER, socket
$30.59
You save $3.40
6
Yamaha Motors
.BOLT, hexagon socket head90110-04117
Required: 2
.BOLT, hexagon socket head
Price unavailable
-10%
7
Yamaha Motors
Special Washer233-84127-60-00
Required: 2
.WASHER, special
$3.60
You save $0.40
-10%
8
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
.SPRING, screw
$9.89
You save $1.10
-10%
9
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
.NUT, adjusting
$7.64
You save $0.85
-10%
$4.94
You save $0.55
11
Yamaha Motors
.COVER, socket2MA-84196-00
Required: 1
.COVER, socket
Price unavailable
-10%
12
Yamaha Motors
COVER FITTING CLIP10V-84198-00-00
Required: 4
.CLIP, cover fitting
$5.39
You save $0.60
13
Yamaha Motors
BULB (12V-60/55W)*
Required: 1
BULB (12V-60/55W)
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
15
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
$8.54
You save $0.95
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
