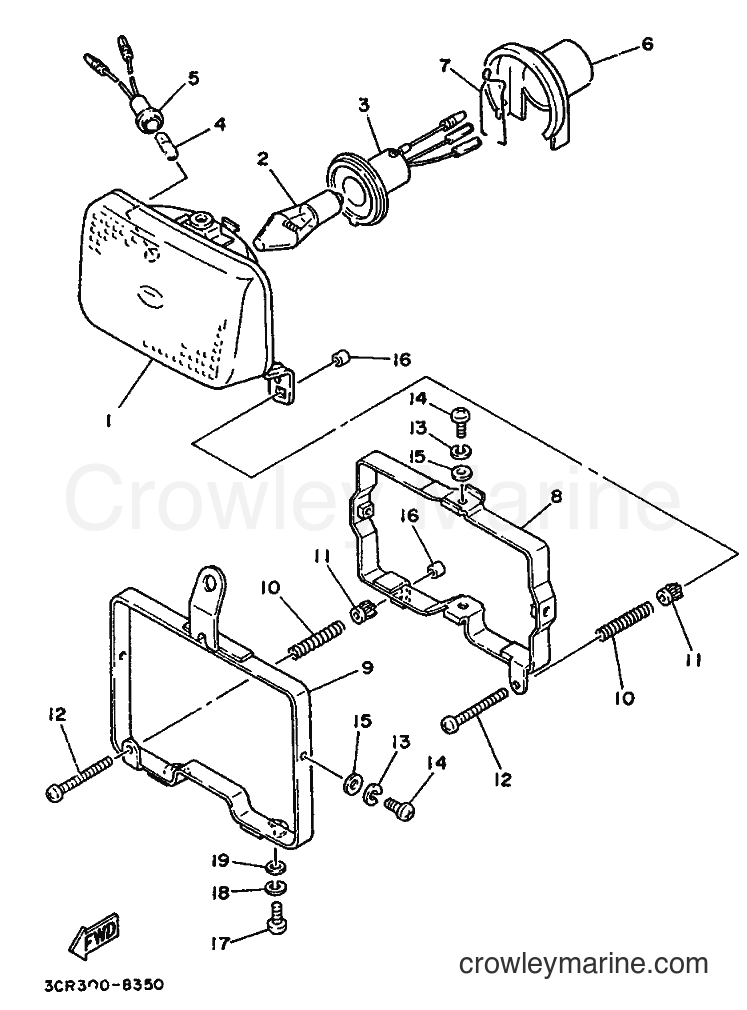

1988 Sport Bike YSR80 - YSR80 (3CR1) [999] HEADLIGHT diagram
![Yamaha Motors YSR80 (3CR1) [999] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/WAp2Hxb9.png)
1
Yamaha Motors
LENS ASSY3CR-84120-00
Required: 1
LENS ASSY
Price unavailable
3
Yamaha Motors
SOCKET314-84112-10
Required: 1
SOCKET
Price unavailable
5
Yamaha Motors
SOCKET, PILOT LIGHT34L-84346-00
Required: 1
SOCKET, PILOT LIGHT
Price unavailable
6
Yamaha Motors
COVER, SOCKET3Y3-84197-00
Required: 1
COVER, SOCKET
Price unavailable
7
Yamaha Motors
SPRING53V-84335-00
Required: 1
SPRING
Price unavailable
-10%
8
Yamaha Motors
Retaining Ring2RR-84195-00-00
Required: 1
RING, RETAINING
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
-10%
9
Yamaha Motors
MOUNTING RING2RR-84194-00-00
Required: 1
RING, MOUNTING
No longer availableSearch Nationwide Inventory
$63.89
You save $7.10
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
11
Yamaha Motors
Adjusting Nut50W-84334-00-00
Required: 2
NUT, ADJUSTING
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
12
Yamaha Motors
Adjuster Screw5BF-8433E-00-00
Required: 2
SCREW, LENS FITTING
Supersedes: 1M1-84524-60-00
$7.64
You save $0.85
-15%
13
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
WASHER, SPRING
$0.30
You save $0.05
-10%
$7.64
You save $0.85
-10%
15
Yamaha Motors
Plain Washer4KG-84344-00-00
Required: 4
WASHER, SPECIAL
Supersedes: 2RR-84138-00-00
$3.96
You save $0.44
-10%
$6.74
You save $0.75
-10%
17
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-15%
18
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
19
Yamaha Motors
Plate Washer90201-05029-00
Required: 2
WASHER, PLATE
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
