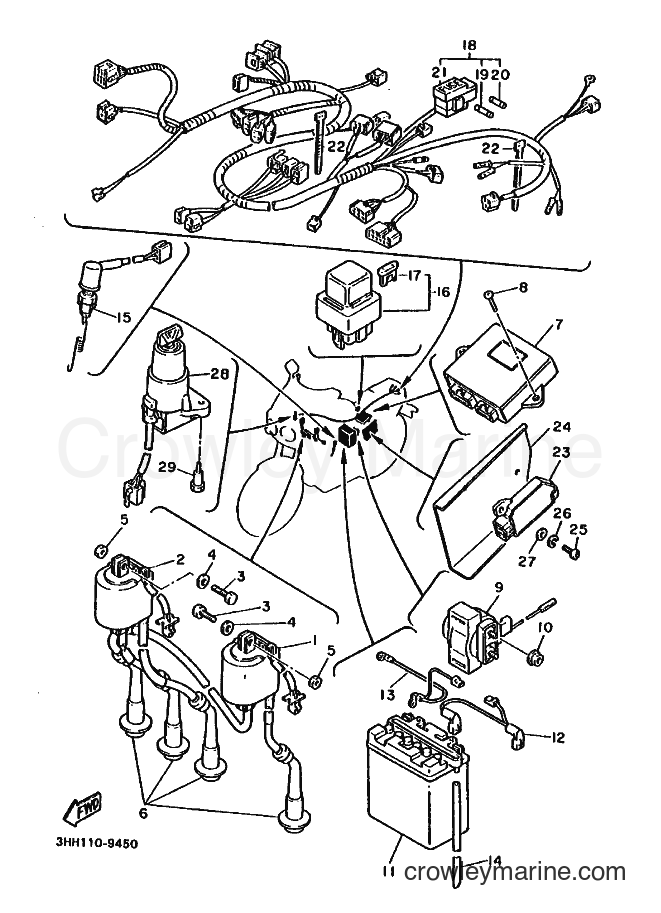

1989 Sport Bike FZR600 - FZR600 (3HH2) [010] ELECTRICAL 1 diagram
![Yamaha Motors FZR600 (3HH2) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/6xdUeGir.png)
-10%
1
Yamaha Motors
1WG-82310-09-003HE-82310-01-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3HE-82310-00-00
No longer availableSearch Nationwide Inventory
$168.29
You save $18.70
-10%
2
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3HE-82320-00-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
-10%
$5.39
You save $0.60
-10%
4
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, plate
Supersedes: 92906-06600-00
$0.90
You save $0.10
-10%
5
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95316-06600-00
$3.46
You save $0.38
-10%
No longer availableSearch Nationwide Inventory
$98.09
You save $10.90
-10%
7
Yamaha Motors
Ignitor Unit Assembly3HE-82305-00-00
Required: 1
IGNITOR UNIT ASSY
No longer availableSearch Nationwide Inventory
$614.69
You save $68.30
8
Yamaha Motors
Tapping Screw97702-60520-00
Required: 2
SCREW, tapping
No longer availableSearch Nationwide Inventory
$1.42
-10%
9
Yamaha Motors
Starter Switch Assembly36Y-81940-00-00
Required: 1
STARTER SWITCH ASSY
$150.29
You save $16.70
-10%
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
11
Yamaha Motors
BATTERY ASSY (GM12AZ-3A-2)1VJ-82110-60
Required: 1
BATTERY ASSY (GM12AZ-3A-2)
Price unavailable
-10%
12
Yamaha Motors
Plus Lead Wire1WG-82115-00-00
Required: 1
WIRE, plus lead
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
13
Yamaha Motors
MINUS LEAD WIRE4BP-82116-00-00
Required: 1
WIRE, minus lead
Supersedes: 3HE-82116-00-00
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
-10%
15
Yamaha Motors
STOP SWITCH ASSEMBLY1KT-82530-03-00
Required: 1
STOP SWITCH ASSY
Supersedes: 1KT-82530-01-00
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-10%
16
Yamaha Motors
FUSE HOLDER ASSEMBLY1AE-82150-00-00
Required: 1
FUSE HOLDER ASSY
No longer availableSearch Nationwide Inventory
$32.39
You save $3.60
-10%
17
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
.FUSE (12V 30A)
$7.64
You save $0.85
-10%
18
Yamaha Motors
Wire Harness Assembly3HH-82590-00-00
Required: 1
WIRE HARNESS ASSY
No longer availableSearch Nationwide Inventory
$233.09
You save $25.90
-10%
19
Yamaha Motors
Fuse (20A-BL)2GV-82151-00-00
Required: 4
.FUSE (20A)
Supersedes: 2GH-82151-00-00
$5.39
You save $0.60
-10%
$4.23
You save $0.47
-10%
21
Yamaha Motors
COVER,FUSE BOX1AE-82172-00-00
Required: 1
.COVER, fuse box
No longer availableSearch Nationwide Inventory
$4.28
You save $0.47
-10%
22
Yamaha Motors
Clamp90464-15195-00
Required: 2
CLAMP
Supersedes: 90464-13073-00
$3.97
You save $0.44
-10%
23
Yamaha Motors
Rectifier & Regulator Assembly47X-81960-A3-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 47X-81960-A1-00
$186.29
You save $20.70
-10%
24
Yamaha Motors
PLATE,RECTIFR FTNG3HE-81975-00-00
Required: 1
PLATE, rectifier fitting
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
-15%
25
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, pan head
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
26
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, plate
In stock
5+ in stock
$2.51
You save $0.44
-10%
28
Yamaha Motors
STEERING LOCK MAIN SWITCH3JV-82501-00-00
Required: 1
MAIN SWITCH STEERING LOCK
Supersedes: 3HH-82501-00-00
No longer availableSearch Nationwide Inventory
$203.39
You save $22.60
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
