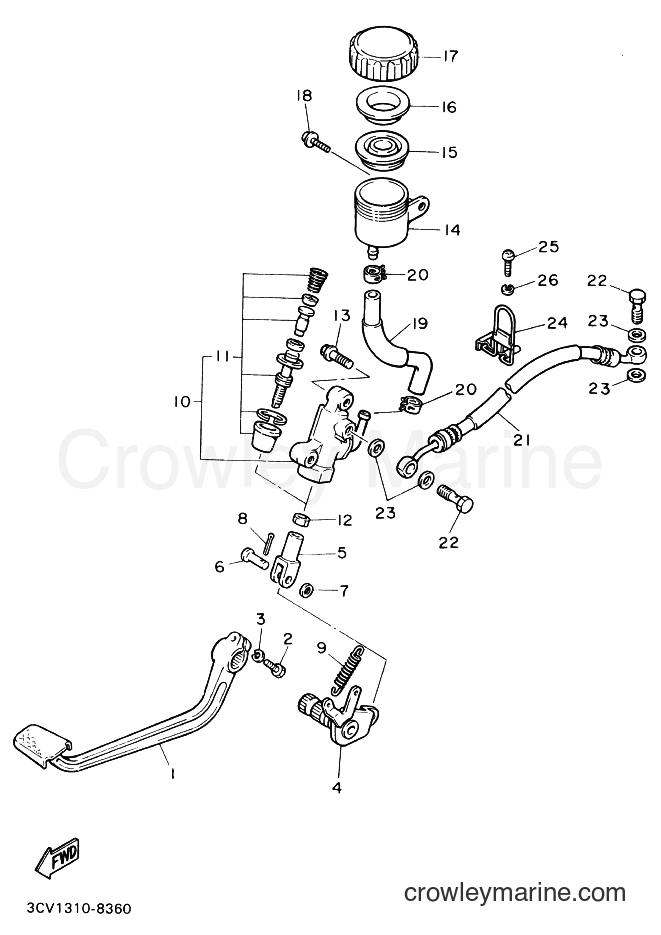

1990 Sport Bike FJ1200 - FJ1200 (3GP3) [010] REAR MASTER CYLINDER diagram
![Yamaha Motors FJ1200 (3GP3) [010] - REAR MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/oEkr0opK.png)
-10%
1
Yamaha Motors
BRAKE PEDAL3XW-27211-01-00
Required: 1
PEDAL, brake
Supersedes: 36Y-27211-00-00
No longer availableSearch Nationwide Inventory
$98.09
You save $10.90
-10%
$7.64
You save $0.85
-15%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
4
Yamaha Motors
BRAKE PEDAL SHAFT3CV-27212-00-00
Required: 1
SHAFT, brake pedal
No longer availableSearch Nationwide Inventory
$17.48
You save $1.94
-10%
$43.19
You save $4.80
-10%
$8.54
You save $0.95
-10%
7
Yamaha Motors
Plate Washer90201-08083-00
Required: 1
WASHER, plate
$9.44
You save $1.05
-15%
8
Yamaha Motors
Cotter Pin91490-20015-00
Required: 1
PIN, cotter
Supersedes: 91401-20015-00
In stock
5+ in stock
$1.87
You save $0.33
-10%
9
Yamaha Motors
TENSION SPRING90506-20192-00
Required: 1
SPRING, tension
$7.64
You save $0.85
-10%
10
Yamaha Motors
Master Cylinder Assembly36Y-25850-51-00
Required: 1
MASTER CYLINDER ASSY
No longer availableSearch Nationwide Inventory
$247.49
You save $27.50
-10%
11
Yamaha Motors
Master Cylinder Kit2YK-W0042-50-00
Required: 1
.CYLINDER KIT, master
Supersedes: 36Y-W0042-51-00
$97.19
You save $10.80
-10%
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.27
-10%
14
Yamaha Motors
Reservoir Tank31A-25894-01-00
Required: 1
TANK, reservoir
$19.79
You save $2.20
-10%
15
Yamaha Motors
Reservoir Diaphragm360-25854-01-00
Required: 1
DIAPHRAGM, reservoir
Supersedes: 360-25854-00-00
$23.39
You save $2.60
-10%
16
Yamaha Motors
DIAPRAGHM BUSH2GU-25855-00-00
Required: 1
BUSH, diaphragm
$30.59
You save $3.40
-10%
17
Yamaha Motors
Reservoir Cap2KF-25852-50-00
Required: 1
CAP, reservoir
Supersedes: 2GU-25852-50-00
$46.79
You save $5.20
-10%
18
Yamaha Motors
Screw With Washer90159-06056-00
Required: 1
SCREW, with washer
$8.54
You save $0.95
-10%
19
Yamaha Motors
Reservoir Hose3CV-25895-00-00
Required: 1
HOSE, reservoir
No longer availableSearch Nationwide Inventory
$16.64
You save $1.85
-10%
$8.54
You save $0.95
-10%
21
Yamaha Motors
Brake Hose99999-02515-00
Required: 1
HOSE, brake 1
Supersedes: 36Y-25872-52-00
No longer availableSearch Nationwide Inventory
$98.99
You save $11.00
-10%
22
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, union
Supersedes: 90401-10096-00
$11.24
You save $1.25
-20%
23
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, plate
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
24
Yamaha Motors
BRAKE HOSE HOLDER2GH-25875-50-00
Required: 1
HOLDER, brake hose 1
Supersedes: 1TX-25875-51-00
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-15%
25
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 1
SCREW, pan head
Supersedes: 92501-06020-00
In stock
Only 1 remaining
$8.07
You save $1.42
-15%
26
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, spring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
