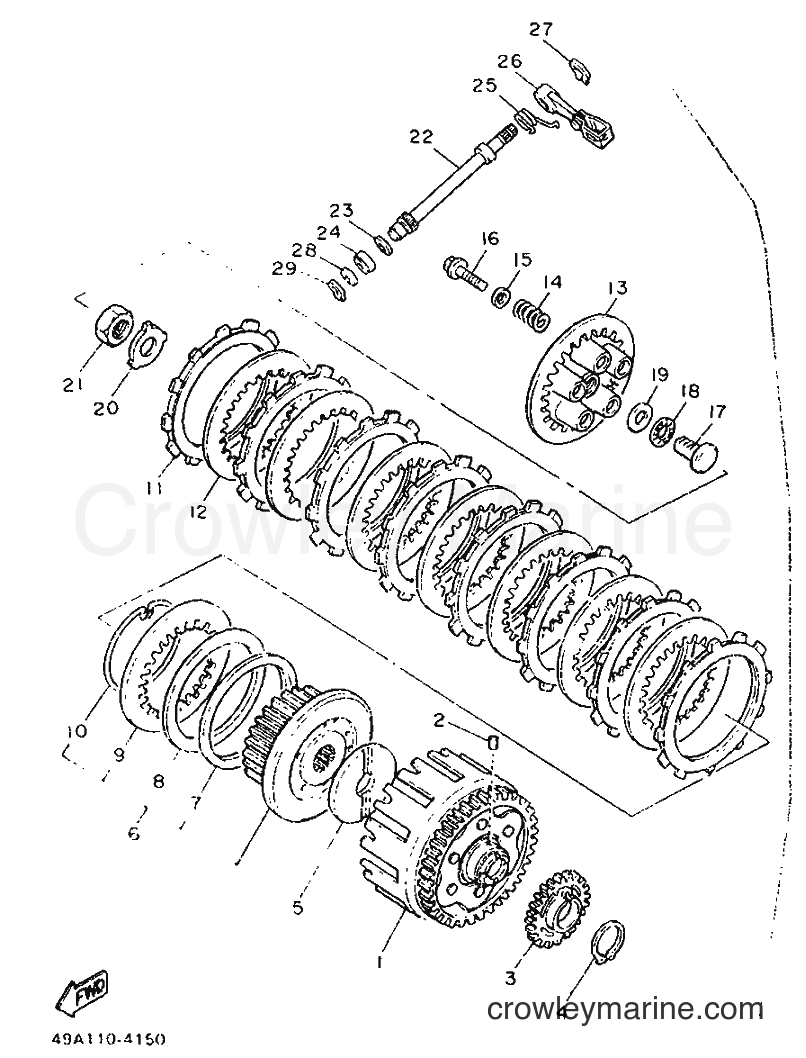

1990 Sport Bike FJ600 - FJ600 (3RC2) [010] CLUTCH diagram
![Yamaha Motors FJ600 (3RC2) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/oI2XmhSg.png)
-10%
1
Yamaha Motors
Primary Driven Gear4HK-16170-00-00
Required: 1
PRIMARY DRIVEN GEAR COMP (65T)
Supersedes: 4U8-16170-01-00
No longer availableSearch Nationwide Inventory
$319.49
You save $35.50
-50%
In stock
Only 2 remaining
$4.75
You save $4.75
-10%
3
Yamaha Motors
Pump Drive Gear4G0-13324-09-00
Required: 1
GEAR, drive (51T)
Supersedes: 4G0-13324-01-00
No longer availableSearch Nationwide Inventory
$96.29
You save $10.70
-10%
4
Yamaha Motors
Circle Clip99009-40400-00
Required: 1
CIRCLIP
Supersedes: 93410-40059-00
$3.78
You save $0.42
-10%
5
Yamaha Motors
Thrust Plate3Y1-16154-00-00
Required: 1
PLATE, thrust 1
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
6
Yamaha Motors
CLUTCH BOSS ASY4H7-16370-00-00
Required: 1
CLUTCH BOSS ASSY
No longer availableSearch Nationwide Inventory
$183.59
You save $20.40
-10%
$13.94
You save $1.55
-10%
8
Yamaha Motors
Clutch Boss Spring1J7-16383-01-00
Required: 1
.SPRING, clutch boss
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
9
Yamaha Motors
PLATE, CLUTCH 1168-16324-10-00
Required: 1
.PLATE, clutch 1
Supersedes: 168-16324-00-00
$21.59
You save $2.40
-10%
10
Yamaha Motors
Clutch Boss Ring1J7-16385-00-00
Required: 1
.RING, clutch boss
$10.79
You save $1.20
-10%
11
Yamaha Motors
4H7-16321-02-004H7-16321-01-00
Required: 8
PLATE, friction
Supersedes: 4H7-16321-00-00
No longer availableSearch Nationwide Inventory
$12.59
You save $1.40
-10%
12
Yamaha Motors
PLATE, CLUTCH 2371-16325-10-00
Required: 7
PLATE, clutch 2
Supersedes: 371-16325-00-00
$15.74
You save $1.75
-10%
13
Yamaha Motors
PRESSURE PLATE 14H7-16351-00-00
Required: 1
PLATE, pressure 1
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
-10%
14
Yamaha Motors
Compression Spring90501-23391-00
Required: 5
SPRING, compression
$7.64
You save $0.85
-10%
15
Yamaha Motors
Plate Washer90201-061A5-00
Required: 5
WASHER, plate
$7.64
You save $0.85
-10%
16
Yamaha Motors
Flange Bolt95812-06025-00
Required: 5
BOLT, flange
Supersedes: 95811-06025-00
$0.68
You save $0.07
-10%
No longer availableSearch Nationwide Inventory
$54.89
You save $6.10
-10%
$18.89
You save $2.10
-10%
19
Yamaha Motors
Plate Washer90201-154E9-00
Required: 1
WASHER, plate
$9.44
You save $1.05
-50%
In stock
Only 3 remaining
$1.83
You save $1.83
-10%
$18.89
You save $2.10
-10%
22
Yamaha Motors
Push Lever Axle4G0-16382-00-00
Required: 1
AXLE, push lever
No longer availableSearch Nationwide Inventory
$45.89
You save $5.10
-10%
23
Yamaha Motors
Plate Washer90201-12M34-00
Required: 1
WASHER, plate
$3.51
You save $0.39
-10%
$10.34
You save $1.15
-10%
25
Yamaha Motors
Torsion Spring90508-16459-00
Required: 1
SPRING, torsion
$7.64
You save $0.85
-10%
26
Yamaha Motors
PUSH LEVER ASSEMBLY3YR-16340-00-00
Required: 1
PUSH LEVER ASSY
Supersedes: 4G0-16340-01-00
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
27
Yamaha Motors
Circle Clip99080-09600-00
Required: 1
CIRCLIP
Supersedes: 99001-09600-00
$2.88
You save $0.32
-10%
28
Yamaha Motors
Plate Washer90201-09572-00
Required: 1
WASHER, plate
No longer availableSearch Nationwide Inventory
$1.53
You save $0.17
-15%
In stock
Only 2 remaining
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
