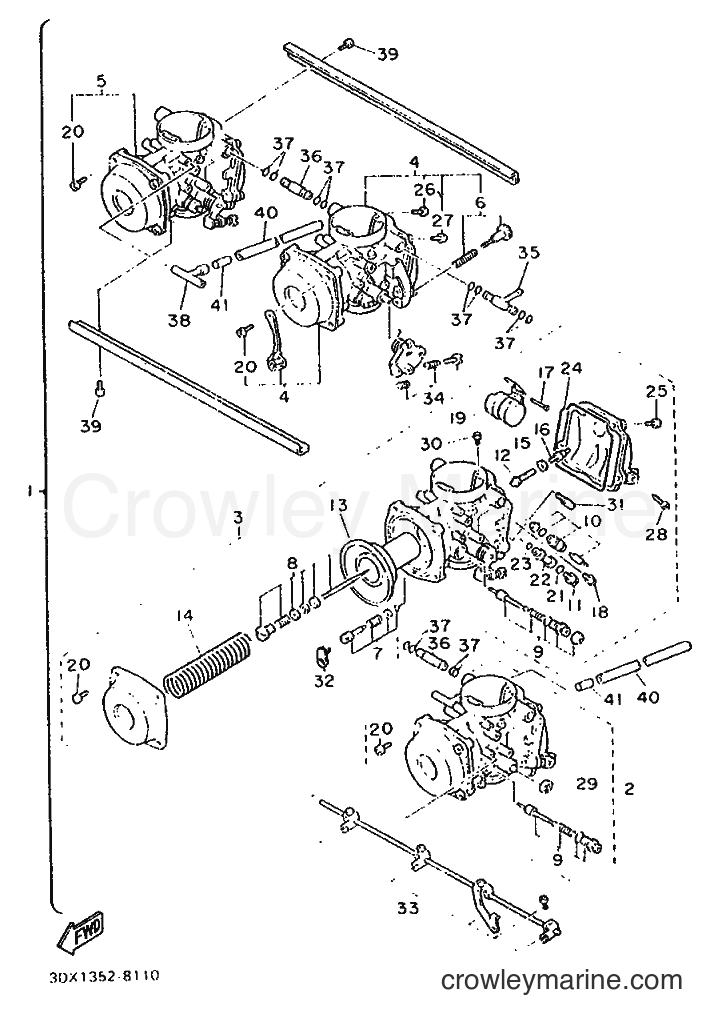

1990 Sport Bike FZ750 - FZ750 (3KU2) [999] CARBURETOR diagram
![Yamaha Motors FZ750 (3KU2) [999] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/NN7UAMPn.png)
1
Yamaha Motors
CARBURETOR ASSY3DX-14900-00
Required: 1
CARBURETOR ASSY
Price unavailable
2
Yamaha Motors
. CARBURETOR ASSY 13DX-14901-00
Required: 1
. CARBURETOR ASSY 1
Price unavailable
3
Yamaha Motors
. CARBURETOR ASSY 23DX-14902-00
Required: 1
. CARBURETOR ASSY 2
Price unavailable
4
Yamaha Motors
. CARBURETOR ASSY 33DX-14903-00
Required: 1
. CARBURETOR ASSY 3
Price unavailable
5
Yamaha Motors
. CARBURETOR ASSY 43DX-14904-00
Required: 1
. CARBURETOR ASSY 4
Price unavailable
-10%
6
Yamaha Motors
THROTTLE SCREW SET1AE-14103-00-00
Required: 1
. . THROTTLE SCREW SET
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-50%
7
Yamaha Motors
Pilot Screw Set12R-14105-00-00
Required: 1
. . PILOT SCREW SET
In stock
Only 4 remaining
$9.49
You save $9.49
8
Yamaha Motors
. . NEEDLE SET2MG-1490J-00
Required: 1
. . NEEDLE SET
Price unavailable
8
Yamaha Motors
. . NEEDLE SET1FN-1490J-00
Required: 1
. . NEEDLE SET
Price unavailable
-10%
9
Yamaha Motors
Starter Set1FN-1410A-00-00
Required: 1
. . STARTER SET
$78.29
You save $8.70
-10%
9
Yamaha Motors
Starter Set1AE-1410A-00-00
Required: 1
. . STARTER SET
No longer availableSearch Nationwide Inventory
$55.79
You save $6.20
-10%
10
Yamaha Motors
Needle Valve Set3CF-14107-12-00
Required: 1
. . NEEDLE VALVE SET
$55.79
You save $6.20
-10%
$15.74
You save $1.75
-10%
11
Yamaha Motors
Main Jet (#102.5)620-1423A-71-A0
Required: 1
. . JET, MAIN
Supersedes: 620-1423A-71-00
$10.79
You save $1.20
-10%
12
Yamaha Motors
Main Nozzle1AE-14141-92-00
Required: 1
. . NOZZLE, MAIN
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
13
Yamaha Motors
DIAPHRAGM ASSEMBLY1AE-14940-00-00
Required: 1
. . DIAPHRAGM ASSY
No longer availableSearch Nationwide Inventory
$154.79
You save $17.20
-10%
14
Yamaha Motors
Diaphragm Spring1AE-14933-00-00
Required: 1
. . SPRING, DIAPHRAGM
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
15
Yamaha Motors
MAIN JET WASHER137-14153-00-00
Required: 1
. . WASHER, MAIN JET
$7.64
You save $0.85
-10%
$30.59
You save $3.40
-10%
17
Yamaha Motors
Float Pin353-14186-00-00
Required: 1
. . PIN, FLOAT
$7.64
You save $0.85
-50%
In stock
Only 1 remaining
$4.25
You save $4.25
-10%
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-15%
20
Yamaha Motors
Screw97885-05010-00
Required: 4
. . SCREW, PAN HEAD
Supersedes: 98501-05010-00
$2.68
You save $0.47
-10%
$9.89
You save $1.10
-10%
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
23
Yamaha Motors
. . GASKET1AE- 1423-70
Required: 1
. . GASKET
Price unavailable
-10%
$26.09
You save $2.90
-10%
25
Yamaha Motors
98580-04014-0098504-04014-00
Required: 4
. . SCREW, PAN HEAD
Supersedes: 98503-04014-00
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
-10%
26
Yamaha Motors
98580-04014-0098504-04014-00
Required: 2
. . SCREW, PAN HEAD
Supersedes: 98503-04014-00
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
-10%
27
Yamaha Motors
Pan Head Screw98517-04016-00
Required: 2
. . SCREW, PAN HEAD
Supersedes: 98511-04016-00
$8.54
You save $0.95
-10%
28
Yamaha Motors
Drain Plug12R-14191-00-00
Required: 1
. . PLUG, DRAIN
$16.19
You save $1.80
-10%
$7.64
You save $0.85
-10%
$12.14
You save $1.35
-10%
31
Yamaha Motors
PILOT JET #153H1-14142-15-00
Required: 1
. . JET, PILOT
$11.69
You save $1.30
-10%
$7.19
You save $0.80
-10%
33
Yamaha Motors
STARTER LEVER SET 11FN-1490L-00-00
Required: 1
. STARTER LEVER SET, 1
No longer availableSearch Nationwide Inventory
$127.79
You save $14.20
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
No longer availableSearch Nationwide Inventory
$83.69
You save $9.30
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
In stock
Only 1 remaining
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$27.89
You save $3.10
-15%
39
Yamaha Motors
Screw97885-05010-00
Required: 16
. SCREW, PAN HEAD
Supersedes: 98501-05010-00
$2.68
You save $0.47
-10%
No longer availableSearch Nationwide Inventory
$10.42
You save $1.16
-10%
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
